Seats And Safety Belts

Lamborghini Diablo VT Roadster (1998-2000)

Find Your Part

Lamborghini Diablo VT Roadster (1998-2000) - Seats and Safety Belts

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

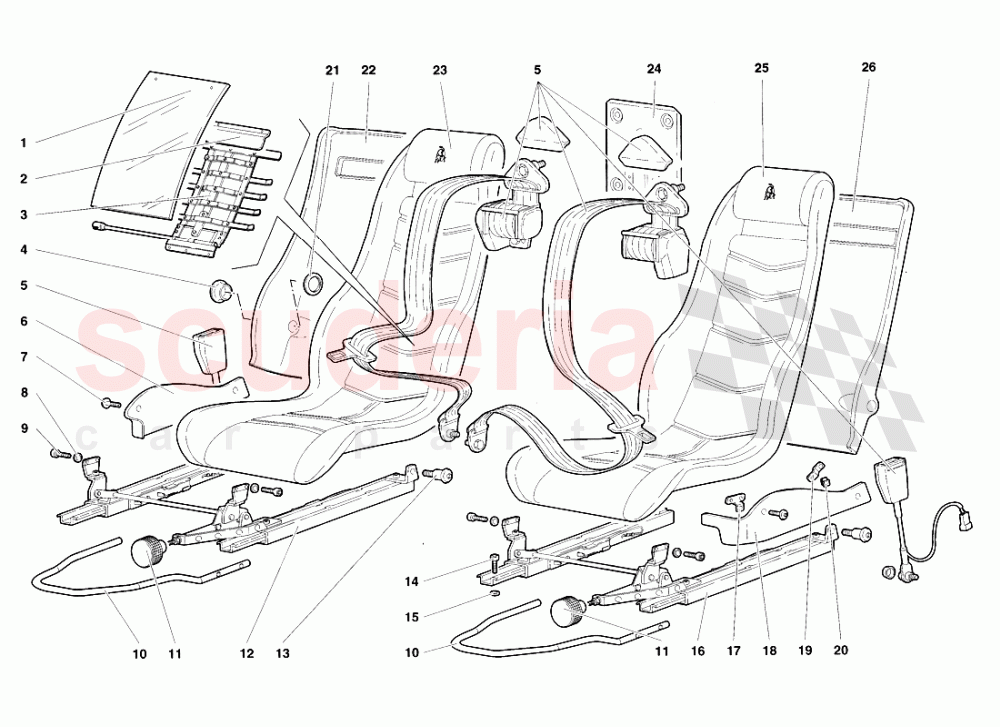

Seats and Safety Belts of Lamborghini Lamborghini Diablo VT Roadster (1998-2000) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 009435123
SHIELD
PROTEZIONE 		- 2
PE
 Enquire
002 009435118
ANGLE PIECE
ANGOLARE 		$31.73 (6.3% off) 2
TO
003 009435117
BACK-REST ADJU. - R.
REGOLATORE LOMBARE DX 		- 1
PE
 Enquire
003 009435121
BACK-REST ADJU. - L.
REGOLATORE LOMBARE SX 		- 1
PE
 Enquire
004 009435119
BUSHING
BOCCOLA 		$79.77 2
TO
005 0097001596
SEATS BELTS
CINTURE Dl SICUREZZA 		$456.92 1
TO
006 009435331
RIGHT SIDE PANEL
PANNELLO LATERALE DX 		$74.34 (3.1% off) 1
TO
007 008700544
SCREW
VITE 		$1.64 4
TO
008 008410601
WASHER
RONDELLA 		$0.04 (99.5% off) 8
TO
009 008700670
SCREW
VITE 		$0.28 (96.2% off) 8
TO
010 009435207
LEVER
LEVA 		- 2
PE
 Enquire
011 009435264
KNOB
POMELLO 		$6.37 (3.5% off) 2
TO
012 009435018
RIGHT SEAT GUIDE
GUIDA SEDILE DX 		$996.66 (3.2% off) 1
TO
013 009435232
PIN
PERNO 		$30.61 (6.4% off) 4
TO
014 008700847
SCREW
VITE 		$1.81 (74.4% off) 8
TO
015 009435257
SPACER
DISTANZIALE 		$14.19 8
TO
016 009435019
LEFT SEAT GUIDE
GUIDA SEDILE SX 		$996.66 (3.2% off) 1
TO
017 009435263
LEFT BRACKET
STAFFA SX 		$6.55 (4.4% off) 1
TO
017 009435262
RIGHT BRACKET
STAFFA DX 		$6.55 (4.4% off) 1
TO
018 009435332
RIGHT SIDE PANEL
PANNELLO LATERALE SX 		$74.34 (3.1% off) 1
TO
019 009435261
BRACKET
STAFFA 		$6.55 (4.4% off) 2
TO
020 008220503
CLIP
MOLLETTA 		$10.25 (6% off) 4
TO
022 009435112
R. REAR PANEL SEAT
PANNELLO RETROSCHIENALE DX 		$223.69 (3.2% off) 1
TO
023 009935004
RIGHT SEAT
SEDILE DX 		- 1
PE
 Enquire
024 009490324
SUPPORT - SUPPORTO
O 		$65.70 1
TO
025 009935005
LEFT SEAT
SEDILE SX 		- 1
PE
 Enquire
026 009435113
L. REAR PANEL SEAT
PANNELLO RETROSCHIENALE SX 		$223.69 (3.2% off) 1
TO
