Electrical System 2

Lamborghini Diablo GT (1999-2000)

Find Your Part

Lamborghini Diablo GT (1999-2000) - Electrical System 2

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

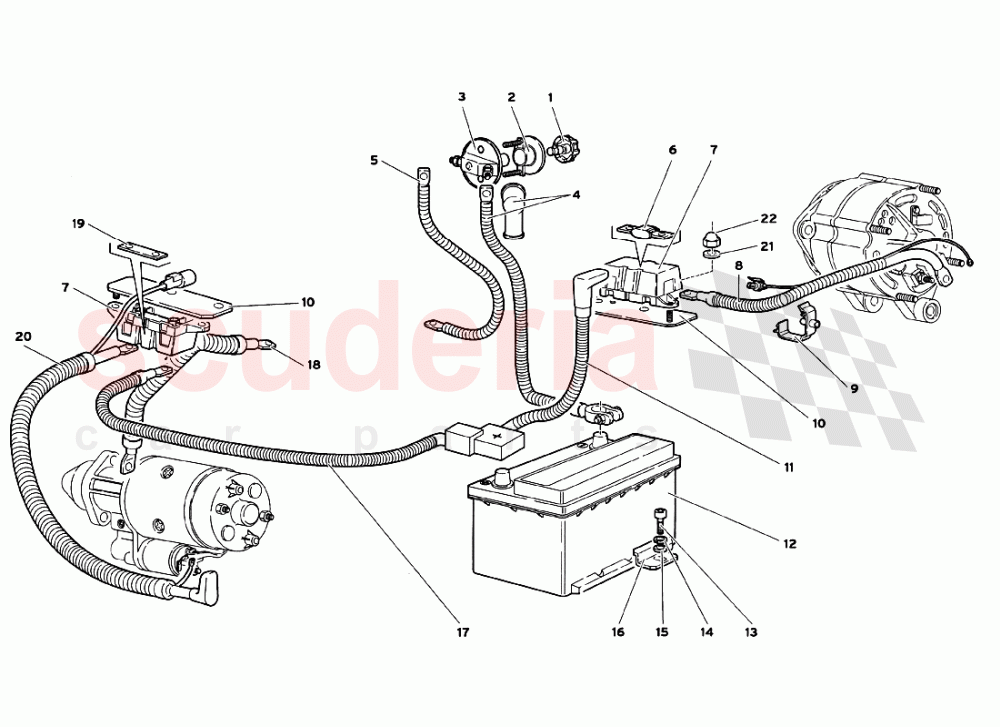

Electrical System 2 of Lamborghini Lamborghini Diablo GT (1999-2000) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 005931167
KNOB
POMELLO 		$87.80 1
TO
002 005931299
FLANGE
FLANGIA 		$227.95 (6.4% off) 1
TO
003 005931163
CONNECTING BLOCK
STACCABATTERIA 		$229.77 1
TO
004 0061003005
ELECT CABLE
CAVO ELETTRICO 		$145.14 1
TO
005 0061006957
GROUND CABLE
CAVO MASSA 		$79.77 1
TO
006 006137479
FUSE
FUSIBILEDA250 A 		$12.52 1
TO
007 006137478
CASE
SCATOLA 		- 2
PE
 Enquire
008 0061004517
ELECT CABLE
CAVO ELETTRICO 		$107.79 1
TO
009 008831005
STRAP
FASCETTA 		$1.03 (85.6% off) 3
TO
010 005937655
SUPPORT - SUPPORTO
O 		- 2
PE
 Enquire
011 0061002953
ELECT CABLE
CAVO ELETTRICO 		$118.87 1
TO
012 0059004598
BATTERY
BATTERIA 		$463.16 1
TO
013 008700815
SCREW
VITE
IN STOCK 		$0.20 (97.3% off) 1
IN
014 WHT002962
WASHER 14X8.4X1.5
RONDELLA
IN STOCK 		$0.32 (95.6% off) 1
IN
015 008410820
WASHER
RONDELLA 		$0.19 (97.4% off) 1
TO
016 004130608
PLATE
STAFFA 		$31.75 1
TO
017 006137475
ELECT CABLE
CAVO ELETTRICO 		$250.39 1
TO
018 006135923
GROUND CABLE
CAVO ELETTRICO 		$79.90 (3.3% off) 1
TO
019 006137471
CONNECTION
CONNESSIONE 		- 1
PE
 Enquire
020 006137473
ELECT CABLE
CAVO ELETTRICO 		$179.65 1
TO
021 WHT001187
WASHER
RONDELLA
IN STOCK 		$0.80 (89% off) 4
IN
022 N0211963
NUT
DADO
IN STOCK 		$0.74 4
IN
