Lamborghini Diablo (1990-1998) - Seats and Safety Belts (Valid for June 1992 Version)

Look at the exploded parts diagram to find the part you need:
  • Reposition the diagram by dragging it across.
  • Zoom in & out of the diagram by scrolling or using the and buttons
  • Click on a hotspot in the parts diagram to locate the part you need.
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
We recommend that you view the diagram page in 'landscape' view.
Part Key
IN
In Stock
AS
Arriving Soon
TD
To Order
PE
Please Enquire

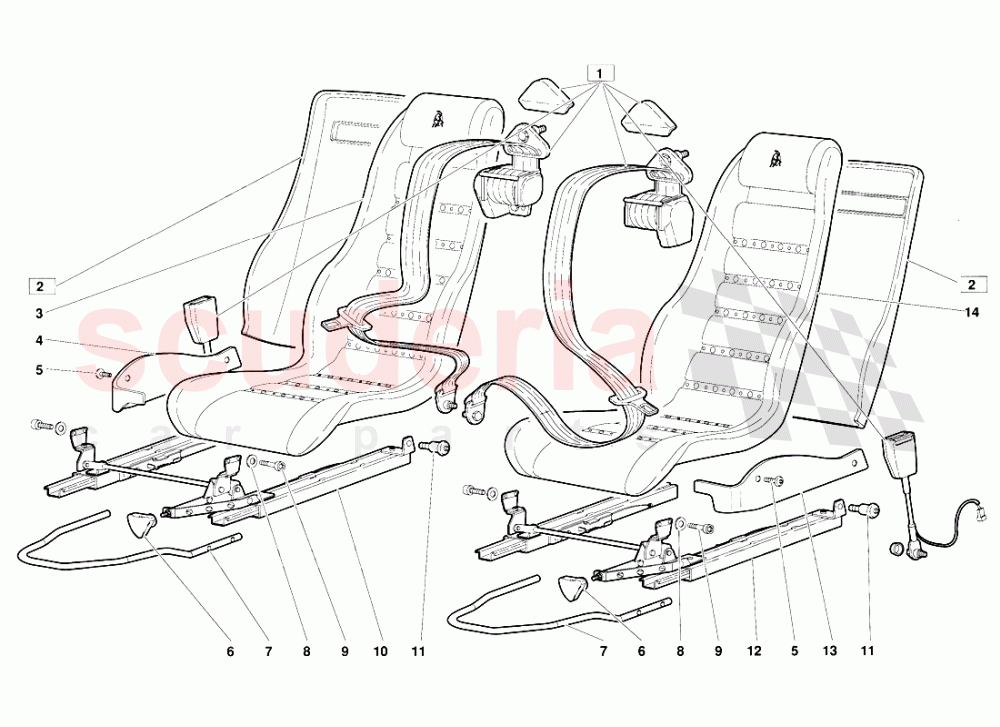

Seats and Safety Belts (Valid for June 1992 Version) of Lamborghini Lamborghini Diablo (1990-1998) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 009490300
SEATS BELTS
(Valid for June 1992 version) ASSIEME CINTURE Dl SICUREZZA (particolare intercambiabile sostltuisce il 009490310) 		$205.11 1
IN
002 009435231
REAR PANEL SEAT
(Valid for June 1992 version) PANNELLO RETROSCHIENALE SEDILE (variata quantita) 		$238.28 2
IN
003 009435004
RIGHT SEAT
(Valid for June 1992 version) SEDILE DESTRO 		- 1
PE
 Enquire
004 009435312
RIGHT SIDE PANEL
(Valid for June 1992 version) PANNELLO LATERALE SEDILE DX 		$148.53 1
IN
005 008700543
SCREW
(Valid for June 1992 version) VITE 		$3.00 4
IN
006 007035114
KNOB
(Valid for June 1992 version) POMELLO 		$163.70 2
IN
007 009435207
LEVER
(Valid for June 1992 version) LEVA 		- 2
PE
 Enquire
008 008410601
WASHER
(Valid for June 1992 version) RONDELLA 		$0.03 (99.6% off) 8
IN
009 008700617
SCREW
(Valid for June 1992 version) VITE 		$0.22 (97% off) 8
IN
010 009435002
RIGHT SEAT GUIDE
(Valid for June 1992 version) GUIDA MOBILE SEDILE DX 		$939.70 1
IN
011 009435232
PIN
(Valid for June 1992 version) VITE A PERNO 		$28.81 (11.9% off) 4
IN
012 009435003
LEFT SEAT GUIDE
(Valid for June 1992 version) GUIDA MOBILE SEDILE SX 		$939.70 1
IN
013 009435313
LEFT SIDE PANEL
(Valid for June 1992 version) PANNELLO LATERALE SEDILE SX 		$173.30 1
IN
014 009435005
LEFT SEAT
(Valid for June 1992 version) SEDILE SINISTRO 		- 1
PE
 Enquire
015 009435233
PANEL
(Valid for June 1992 version) PANNELLO RETROSCHIENALE SX (particolare sostituito dal 009435231) 		- 1
PE
 Enquire
