Name: A/C COMPRESSOR
Rating: 5.0 (1 reviews)

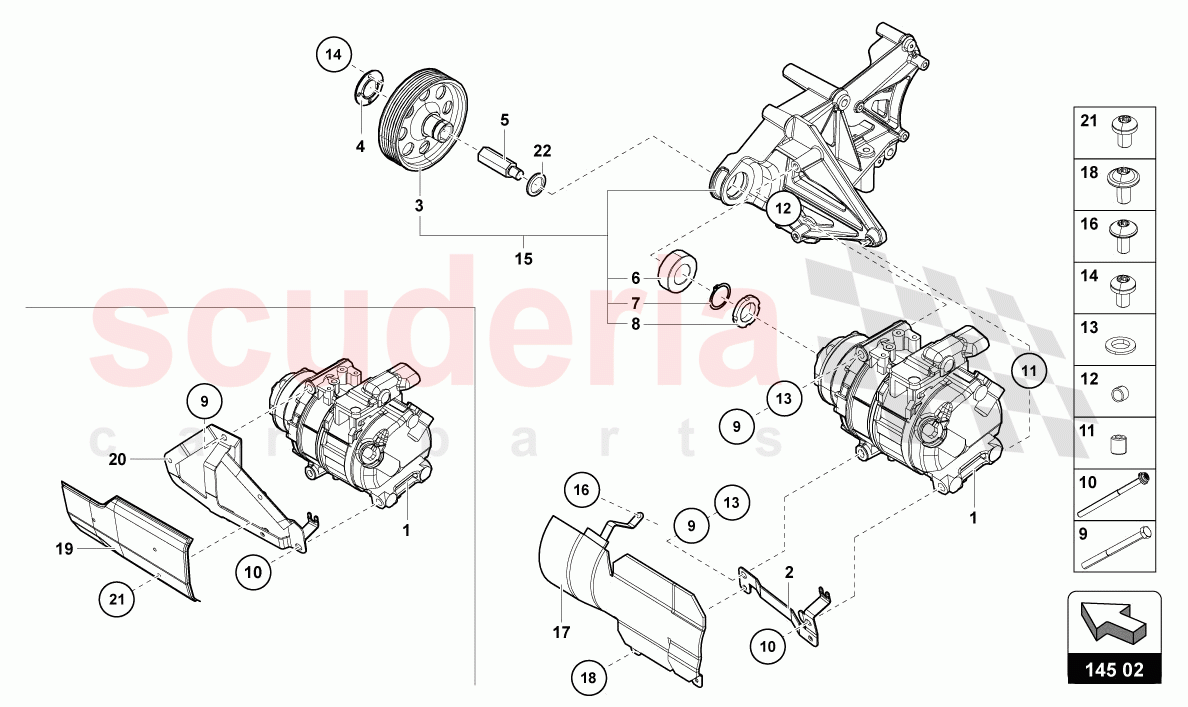

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	470816550	A/C COMPRESSOR	$15,007.12	To Order

Photo	Part No	Description	Price (each)	Stock
	470260810F	PULLEY	$1,615.65	To Order

Photo	Part No	Description	Price (each)	Stock
	470260877	COVER	$237.76	To Order

Photo	Part No	Description	Price (each)	Stock
	470260095A	INPUT SHAFT	$457.24	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WHT005222	UNION NUT	$53.74	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10531802	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD	$28.72	To Order

Photo	Part No	Description	Price (each)	Stock
	N10561102	HEX COLLARED BOLT	$8.01	To Order

Photo	Part No	Description	Price (each)	Stock
	470260845	LENGTH-MEASURING DEVICE	$202.94	To Order

Photo	Part No	Description	Price (each)	Stock
	03L260817	CENTRE SLEEVE	$2.18	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10406602	OVAL HEXAGON SOCKET HEAD BOLT	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	470198001A	REPAIR SET	$814.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	470260963	GUARD PLATE	$2,003.16	To Order

Photo	Part No	Description	Price (each)	Stock
	470260081	ARM	$185.23	To Order

Photo	Part No	Description	Price (each)	Stock
	N90737804	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	$0.73	To Order

Photo	Part No	Description	Price (each)	Stock
	N90809103	SEAL RING	$2.98	IN STOCK

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
1	470816550	A/C COMPRESSOR	470816550 A/C COMPRESSOR REFRIGERANT R1234YF	$15,007.12	1	TO
3	470260810F	PULLEY	470260810F PULLEY	$1,615.65	1	TO
4	470260877	COVER	470260877 COVER	$237.76	1	TO
5	470260095A	INPUT SHAFT IN STOCK	470260095A INPUT SHAFT FROM VIN DLA1411 INTERCHANGEA BLE 1 TO 1 IN STOCK	$457.24	1	IN
8	WHT005222	UNION NUT IN STOCK	WHT005222 UNION NUT IN STOCK	$53.74	1	IN
9	N10531802	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD	N10531802 SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD M8X100	$28.72	2	TO
10	N10561102	HEX COLLARED BOLT	N10561102 HEX COLLARED BOLT 10X142X45	$8.01	1	TO
11	470260845	LENGTH-MEASURING DEVICE	470260845 LENGTH-MEASURING DEVICE	$202.94	1	TO
12	03L260817	CENTRE SLEEVE IN STOCK	03L260817 CENTRE SLEEVE 11 -15X6,5 IN STOCK	$2.18 MSRP: ~~7.10~~ (69.3% off)	2	IN
14	N10406602	OVAL HEXAGON SOCKET HEAD BOLT	N10406602 OVAL HEXAGON SOCKET HEAD BOLT M5X8	$0.32	4	TO
15	470198001A	REPAIR SET IN STOCK	470198001A REPAIR SET IN STOCK	$814.06	1	IN
19	470260963	GUARD PLATE	470260963 GUARD PLATE	$2,003.16	1	TO
20	470260081	ARM	470260081 ARM	$185.23	1	TO
21	N90737804	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N90737804 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M6X14.0	$0.73 MSRP: ~~7.31~~ (90% off)	3	TO
22	N90809103	SEAL RING IN STOCK	N90809103 SEAL RING IN STOCK	$2.98	1	IN

A/C Compressor

Lamborghini Aventador LP780 Ultimae Roadster
