Timing Chain

Lamborghini Aventador LP780 Ultimae Roadster

Find Your Part

Lamborghini Aventador LP780 Ultimae Roadster - TIMING CHAIN

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
07M115235B SLIDING SHOE $1,937.47 To Order
Photo Part No Description Price (each) Stock
07M109120E ROLLER CHAIN $438.74 To Order
Photo Part No Description Price (each) Stock
WHT005010A COUNTERSUNK BOLT $52.21 To Order
Photo Part No Description Price (each) Stock
WHT005401A COUNTERSUNK BOLT $49.25 To Order
Photo Part No Description Price (each) Stock
N10689302 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD $3.03 IN STOCK
Photo Part No Description Price (each) Stock
07M109307 BEARING SHELL $193.75 To Order
Photo Part No Description Price (each) Stock
07M109350B LENGTH-MEASURING DEVICE $329.70 To Order
Photo Part No Description Price (each) Stock
07M109567D GEAR $1,523.70 To Order
Photo Part No Description Price (each) Stock
07M109225G AXLE SHAFT $2,482.60 To Order
Photo Part No Description Price (each) Stock
07M109229A TIMING CHAIN $1,425.21 To Order
Photo Part No Description Price (each) Stock
07M109077C CHAIN TENSIONER $1,285.95 To Order
Photo Part No Description Price (each) Stock
03F109507B CHAIN TENSIONER $87.21 IN STOCK
Photo Part No Description Price (each) Stock
07M109248 BEARING SHELL $258.47 IN STOCK
Photo Part No Description Price (each) Stock
07M103147 GASKET FOR FLAP $30.87 IN STOCK
Photo Part No Description Price (each) Stock
07M103171F COVER FOR TIMING CASE $2,259.28 To Order
Photo Part No Description Price (each) Stock
07M103070A SEAL $124.56 IN STOCK
Photo Part No Description Price (each) Stock
07M109498 CHAIN TENSIONER $1,366.09 To Order
Photo Part No Description Price (each) Stock
07M109133C BRACKET $29.45 IN STOCK
Photo Part No Description Price (each) Stock
07M109264A MOUNTING $201.48 IN STOCK
Photo Part No Description Price (each) Stock
WHT003048 WASHER 22 X 28 X 1.5 $3.59 IN STOCK

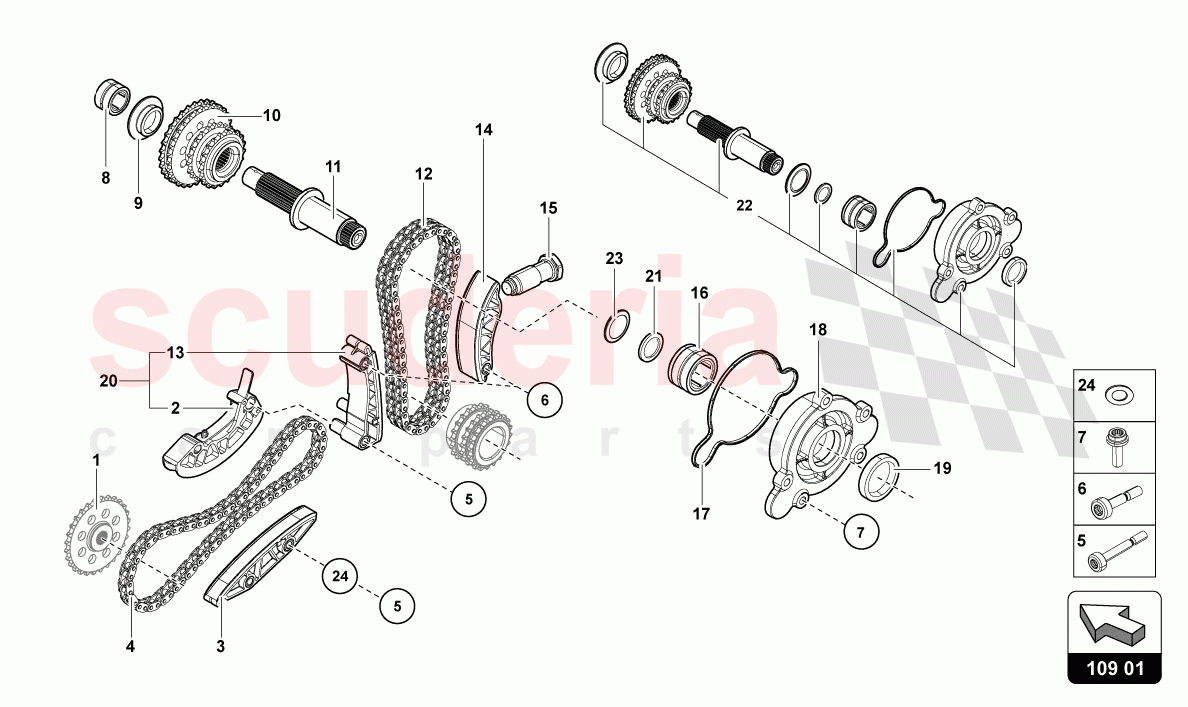

TIMING CHAIN of Lamborghini Lamborghini Aventador LP780 Ultimae Roadster Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
3 07M115235B
SLIDING SHOE 		$1,937.47 1
TO
4 07M109120E
ROLLER CHAIN 		$438.74 1
TO
5 WHT005010A
COUNTERSUNK BOLT
M8X60 		$52.21 3
TO
6 WHT005401A
COUNTERSUNK BOLT
M8X44 		$49.25 2
TO
7 N10689302
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
M8X25
IN STOCK 		$3.03 (57.7% off) 5
IN
8 07M109307
BEARING SHELL 		$193.75 1
TO
9 07M109350B
LENGTH-MEASURING DEVICE 		$329.70 1
TO
10 07M109567D
GEAR 		$1,523.70 1
TO
11 07M109225G
AXLE SHAFT 		$2,482.60 1
TO
12 07M109229A
TIMING CHAIN
LOWER 		$1,425.21 1
TO
14 07M109077C
CHAIN TENSIONER 		$1,285.95 1
TO
15 03F109507B
CHAIN TENSIONER
IN STOCK 		$87.21 1
IN
16 07M109248
BEARING SHELL
IN STOCK 		$258.47 1
IN
17 07M103147
GASKET FOR FLAP
IN STOCK 		$30.87 1
IN
18 07M103171F
COVER FOR TIMING CASE 		$2,259.28 1
TO
19 07M103070A
SEAL
IN STOCK 		$124.56 1
IN
20 07M109498
CHAIN TENSIONER 		$1,366.09 1
TO
21 07M109133C
BRACKET
IN STOCK 		$29.45 1
IN
23 07M109264A
MOUNTING
IN STOCK 		$201.48 1
IN
24 WHT003048
WASHER 22 X 28 X 1.5
22.0X28.0X1. 5
IN STOCK 		$3.59 1
IN
