Name: OIL SUMP
Rating: 5.0 (1 reviews)

Diagram
INFO

OIL SUMP of Lamborghini Lamborghini Aventador LP780 Ultimae

Lamborghini Aventador LP780 Ultimae - OIL SUMP

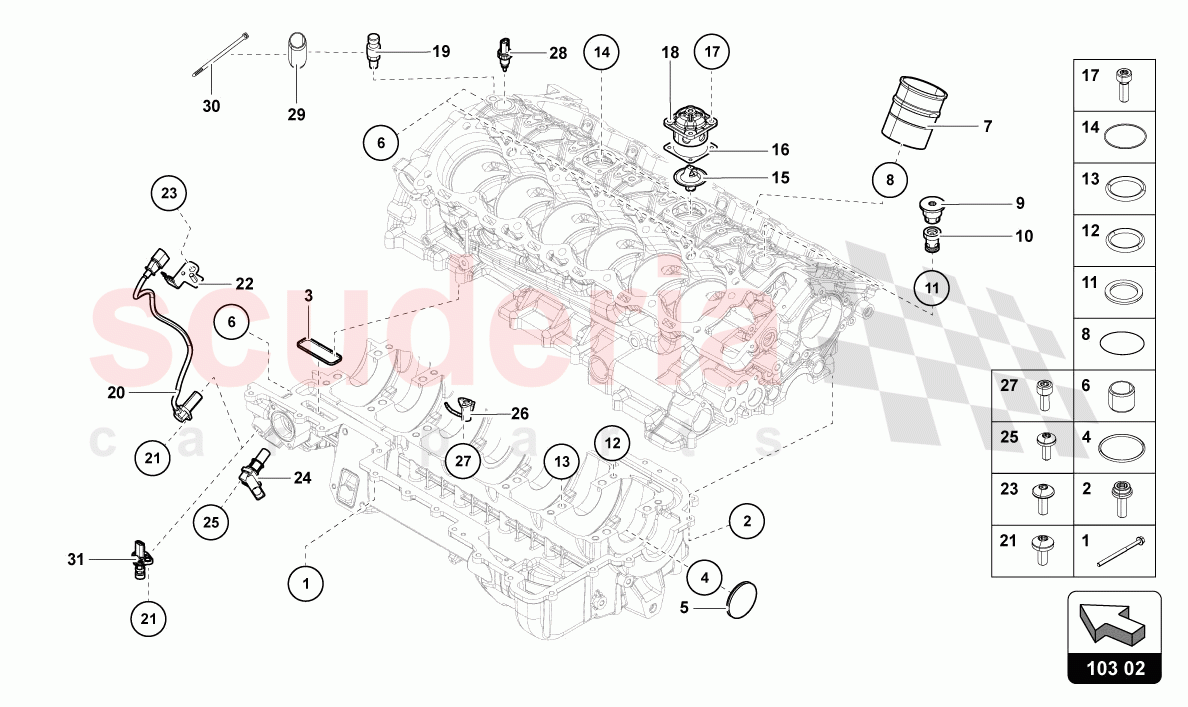

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	N10709401	HEXAGON HEAD BOLT (COMBI)	$5.87	To Order

Photo	Part No	Description	Price (each)	Stock
	N10689302	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	$3.03	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	07M103121C	SEAL	$16.32	To Order

Photo	Part No	Description	Price (each)	Stock
	N91084501	O-RING	$7.39	To Order

Photo	Part No	Description	Price (each)	Stock
	07M103627	BUNGS	$41.27	To Order

Photo	Part No	Description	Price (each)	Stock
	022103139B	DOWEL SLEEVE	$7.62	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	07M103321B	CYLINDER LINER	$814.41	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT005218	SEAL RING	$9.71	To Order

Photo	Part No	Description	Price (each)	Stock
	07M103937A	BUNGS	$262.71	To Order

Photo	Part No	Description	Price (each)	Stock
	07M115540	OIL SPRAY JET	$249.59	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT000406	SEAL RING	$3.47	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N91014801	O-RING	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	N90111301	O-RING	$0.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N90443601	O-RING	$8.60	To Order

Photo	Part No	Description	Price (each)	Stock
	050121113B	COOLANT REGULATOR	$69.20	To Order

Photo	Part No	Description	Price (each)	Stock
	07M103649	SEAL	$25.51	To Order

Photo	Part No	Description	Price (each)	Stock
	N91084801	HEXAGON SOCKET HEAD BOLT	$0.81	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	07M121121E	COVER FOR THERMOSTAT	$748.72	To Order

Photo	Part No	Description	Price (each)	Stock
	07M919561	OIL PRESSURE SENDER	$289.64	To Order

Photo	Part No	Description	Price (each)	Stock
	N91096702	OVAL HEXAGON SOCKET HEAD BOLT	$1.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	079907601	IMPULSE SENDER	$172.09	To Order

Photo	Part No	Description	Price (each)	Stock
	N91096702	OVAL HEXAGON SOCKET HEAD BOLT	$1.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	07M103158E	AIR VENT	$1,425.21	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10456103	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	$12.49	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	059919523F	TEMPERATURE SENSOR	$62.87	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	470971729	HEAT DEFLECTOR HOSE	$42.09	To Order

Photo	Part No	Description	Price (each)	Stock
	N10562301	CABLE TIES	$1.29	To Order

Photo	Part No	Description	Price (each)	Stock
	06H906433E	IMPULSE SENDER	$116.24	To Order

Diagram Tap to enlarge

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
	1	N10709401	HEXAGON HEAD BOLT (COMBI)	N10709401 HEXAGON HEAD BOLT (COMBI) M8X120X80	$5.87	1	TO
	2	N10689302	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N10689302 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M8X25 IN STOCK	$3.03 MSRP: ~~7.17~~ (57.7% off)	24	IN
	3	07M103121C	SEAL	07M103121C SEAL	$16.32	1	TO
	4	N91084501	O-RING	N91084501 O-RING 63 -09X3,53	$7.39	1	TO
	5	07M103627	BUNGS	07M103627 BUNGS	$41.27	1	TO
	6	022103139B	DOWEL SLEEVE IN STOCK	022103139B DOWEL SLEEVE 16X13 -5 IN STOCK	$7.62	6	IN
	7	07M103321B	CYLINDER LINER	07M103321B CYLINDER LINER 95	$814.41	12	TO
	8	WHT005218	SEAL RING	WHT005218 SEAL RING	$9.71	12	TO
	9	07M103937A	BUNGS	07M103937A BUNGS	$262.71	1	TO
	10	07M115540	OIL SPRAY JET	07M115540 OIL SPRAY JET	$249.59	1	TO
	11	WHT000406	SEAL RING IN STOCK	WHT000406 SEAL RING 24 -3X31,9X2 IN STOCK	$3.47	1	IN
	12	N91014801	O-RING	N91014801 O-RING 11 -11X1,78	$1.51 MSRP: ~~7.14~~ (78.9% off)	14	TO
	13	N90111301	O-RING IN STOCK	N90111301 O-RING 12 -42X1,78 IN STOCK	$0.29 MSRP: ~~2.50~~ (88.4% off)	14	IN
	14	N90443601	O-RING	N90443601 O-RING	$8.60	2	TO
	15	050121113B	COOLANT REGULATOR	050121113B COOLANT REGULATOR 80C-102C	$69.20	2	TO
	16	07M103649	SEAL	07M103649 SEAL	$25.51	2	TO
	17	N91084801	HEXAGON SOCKET HEAD BOLT IN STOCK	N91084801 HEXAGON SOCKET HEAD BOLT M6X18 IN STOCK	$0.81 MSRP: ~~7.29~~ (88.9% off)	8	IN
	18	07M121121E	COVER FOR THERMOSTAT	07M121121E COVER FOR THERMOSTAT	$748.72	2	TO
	19	07M919561	OIL PRESSURE SENDER	07M919561 OIL PRESSURE SENDER UNTIL ENGINE - 6L1201300 ORDER ALSO REF.29	$289.64	1	TO
	N91096702		OVAL HEXAGON SOCKET HEAD BOLT	from $1.31 MSRP: ~~7.29~~ (82% off)
21 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK $1.31 MSRP: ~~7.29~~ (82% off) 1 IN 25 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK $1.31 MSRP: ~~7.29~~ (82% off) 1 IN
	24	079907601	IMPULSE SENDER	079907601 IMPULSE SENDER FLYWHEEL	$172.09	1	TO
	26	07M103158E	AIR VENT IN STOCK	07M103158E AIR VENT IN STOCK	$1,425.21	7	IN
	27	N10456103	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N10456103 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M4X10 IN STOCK	$12.49	1	IN
	28	059919523F	TEMPERATURE SENSOR IN STOCK	059919523F TEMPERATURE SENSOR IN STOCK	$62.87	2	IN
	29	470971729	HEAT DEFLECTOR HOSE	470971729 HEAT DEFLECTOR HOSE	$42.09	1	TO
	30	N10562301	CABLE TIES	N10562301 CABLE TIES 4 -7X194	$1.29 MSRP: ~~7.18~~ (82% off)	1	TO
	31	06H906433E	IMPULSE SENDER	06H906433E IMPULSE SENDER CRANCKSHAFT ENGINE-3 PIN	$116.24	1	TO

Oil Sump

Lamborghini Aventador LP780 Ultimae

Lamborghini Aventador LP780 Ultimae - OIL SUMP
