Name: REAR LID SUBSTRUCTURE
Rating: 4.8 (1 reviews)

Diagram
INFO

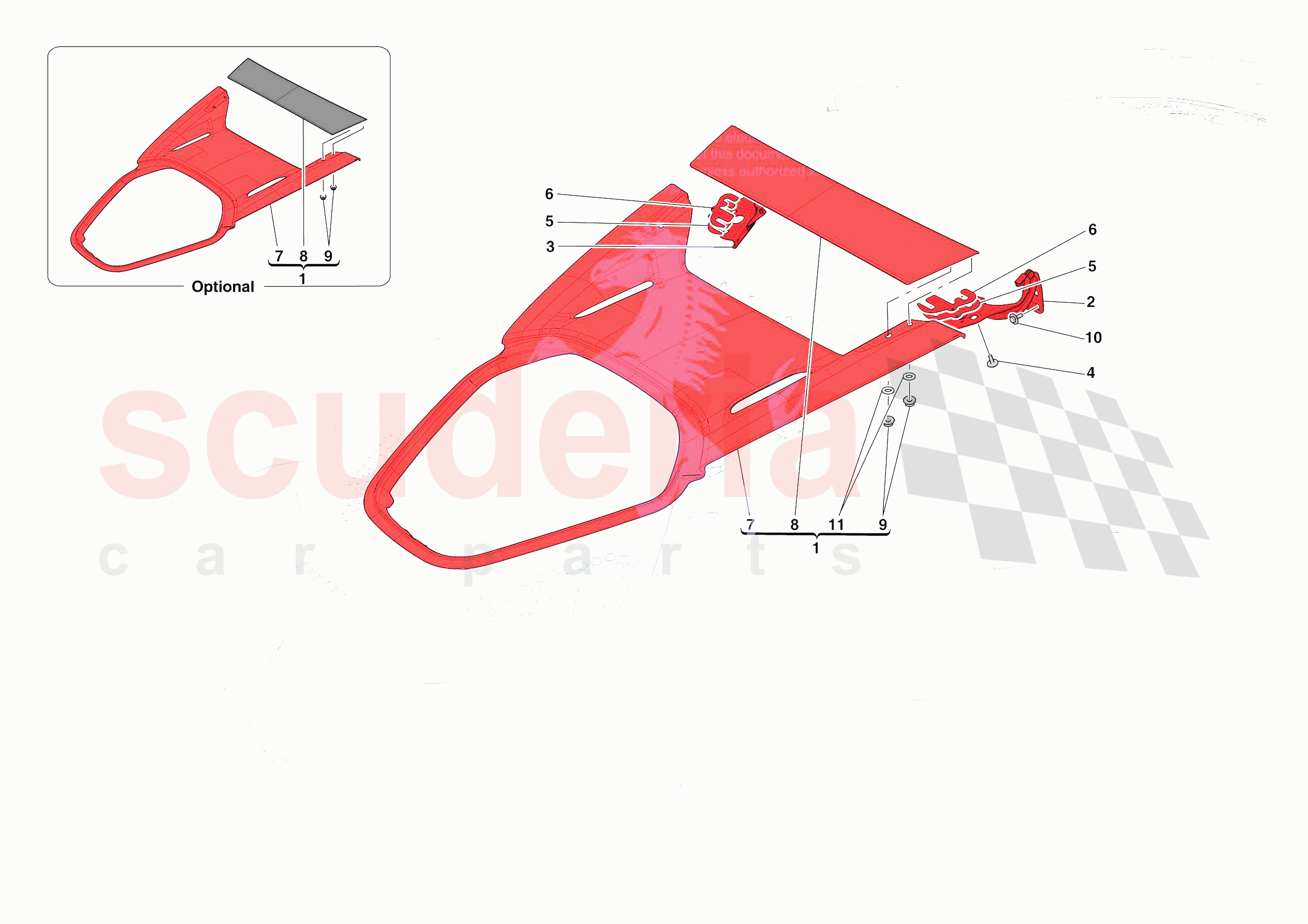

REAR LID SUBSTRUCTURE of Ferrari Ferrari SF90 Stradale USA

Ferrari SF90 Stradale USA - REAR LID SUBSTRUCTURE

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	985830618	ENGINE COMPARTMENT LID	$9,235.87	To Order
	985830618	ENGINE COMPARTMENT LID	$9,235.87	To Order

Photo	Part No	Description	Price (each)	Stock
	905213	COMPL. RH ENGINE COMPARTMENT LID HINGE	$259.58	To Order

Photo	Part No	Description	Price (each)	Stock
	905206	COMPL. LH ENGINE COMPARTMENT LID HINGE	$246.61	To Order

Photo	Part No	Description	Price (each)	Stock
	82271400	SCREW	$1.16	IN STOCK
	82271400	SCREW	$1.16	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	883415	ADJUSTMENT SHIM	$19.45	To Order

Photo	Part No	Description	Price (each)	Stock
	883414	ADJUSTMENT SHIM	$18.16	To Order

Photo	Part No	Description	Price (each)	Stock
	985830620	ENGINE COMPARTMENT LID	$9,413.80	To Order
	985830620	ENGINE COMPARTMENT LID	$9,413.80	To Order
	985830620	ENGINE COMPARTMENT LID	$9,413.80	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	985830645	SPOILER	$3,676.02	To Order
	985830645	SPOILER	$3,676.02	To Order
	867232	SPOILER	$6,029.35	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.34	IN STOCK
	14059290	FLANGED NUT M6	$1.34	IN STOCK
	897207	NUT	$8.39	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	82271400	SCREW	$1.16	IN STOCK
	82271400	SCREW	$1.16	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13550224	WASHER	$1.37	To Order

Diagram Tap to enlarge

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
	985830618		ENGINE COMPARTMENT LID	from $9,235.87
0001 ENGINE COMPARTMENT LID $9,235.87 1 TO 0001 ENGINE COMPARTMENT LID $9,235.87 1 TO
	0002	905213	COMPL. RH ENGINE COMPARTMENT LID HINGE	905213 COMPL. RH ENGINE COMPARTMENT LID HINGE	$259.58	1	TO
	0003	905206	COMPL. LH ENGINE COMPARTMENT LID HINGE	905206 COMPL. LH ENGINE COMPARTMENT LID HINGE	$246.61	1	TO
	82271400		SCREW	from $1.16
0004 SCREW IN STOCK $1.16 4 IN 0004 SCREW IN STOCK $1.16 4 IN 0010 SCREW IN STOCK $1.16 4 IN 0010 SCREW IN STOCK $1.16 4 IN
	0005	883415	ADJUSTMENT SHIM	883415 ADJUSTMENT SHIM Th. 1.5 mm	$19.45	4	TO
	0006	883414	ADJUSTMENT SHIM	883414 ADJUSTMENT SHIM Th. 1 mm	$18.16	4	TO
	985830620		ENGINE COMPARTMENT LID	from $9,413.80
0007 ENGINE COMPARTMENT LID $9,413.80 1 TO 0007 ENGINE COMPARTMENT LID $9,413.80 1 TO 0007 ENGINE COMPARTMENT LID $9,413.80 1 TO
	0007	867223	ENGINE COMPARTMENT LID	867223 ENGINE COMPARTMENT LID Applicable for Assetto Fiorano FIO1/FIO2 - Version with gloss finish carbon spoiler and carbon fibre engine compartment lid with body colour paint finish	$24,534.66	1	TO
	985830645		SPOILER	from $3,676.02
0008 SPOILER $3,676.02 1 TO 0008 SPOILER $3,676.02 1 TO
	867232		SPOILER	from $6,029.35
0008 SPOILER $6,029.35 1 TO 0008 SPOILER $6,029.35 1 TO
	14059290		FLANGED NUT M6	from $1.34
0009 FLANGED NUT M6 IN STOCK $1.34 4 IN 0009 FLANGED NUT M6 IN STOCK $1.34 4 IN
	897207		NUT	from $8.39
0009 NUT $8.39 4 TO 0009 NUT $8.39 4 TO
	0011	13550224	WASHER	13550224 WASHER Not for version with gloss finish carbon spoiler	$1.37	4	TO

Rear Lid Substructure

Ferrari SF90 Stradale USA

Ferrari SF90 Stradale USA - REAR LID SUBSTRUCTURE
