Ferrari SF90 Stradale USA - INVERTER COOLING

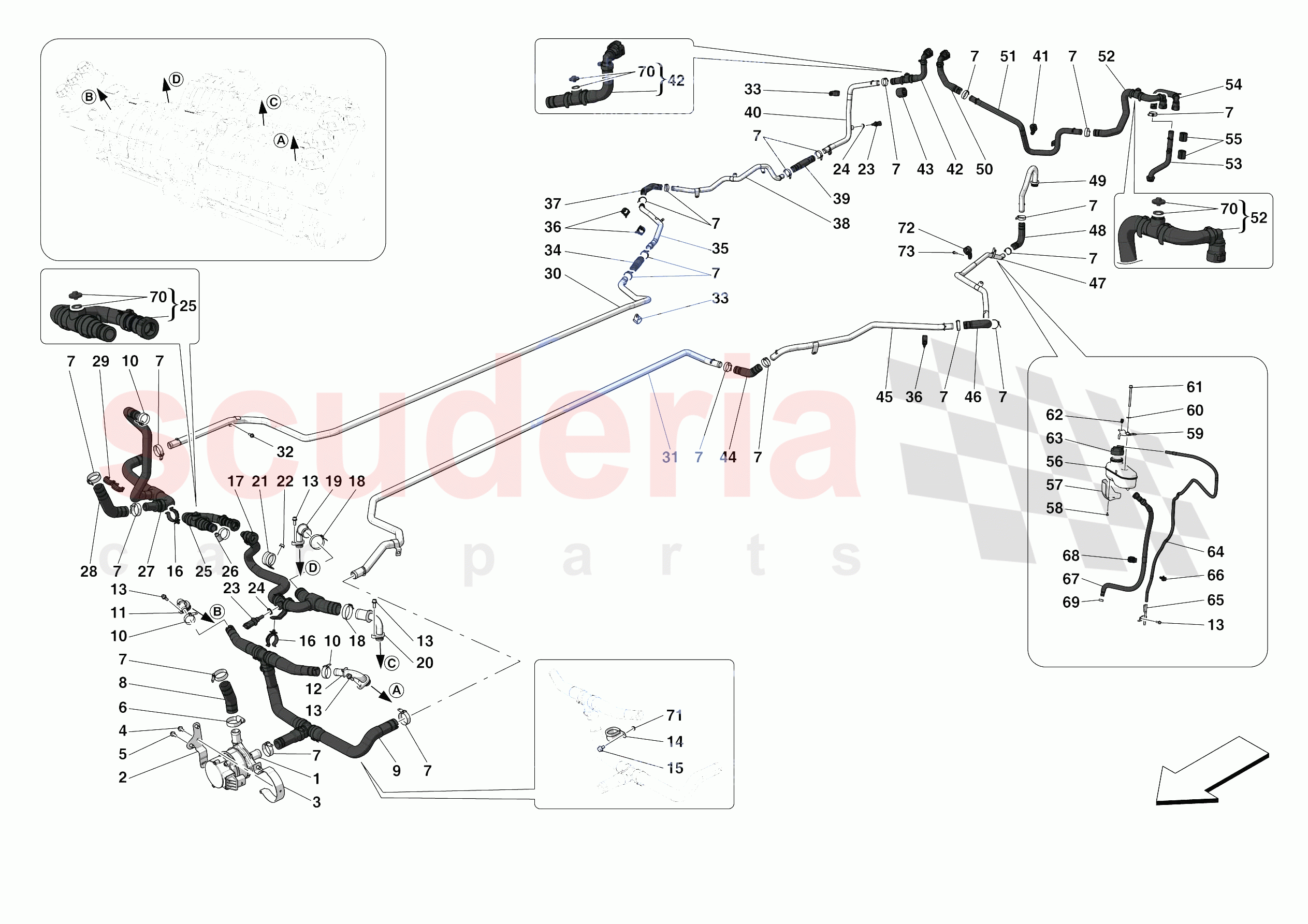

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
908587 PUMP $949.03 To Order
Photo Part No Description Price (each) Stock
791525 RECIRCULATION PUMP MOUNTING BRACKET $24.65 To Order
Photo Part No Description Price (each) Stock
814632 BRACKET FOR MEDIUM TEMPERATURE WATER PUMP $23.36 To Order
Photo Part No Description Price (each) Stock
16281827 SCREW $0.22 IN STOCK
Photo Part No Description Price (each) Stock
16285127 SCREW $0.56 IN STOCK
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.43 IN STOCK
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.43 IN STOCK
Photo Part No Description Price (each) Stock
791526 HOSE FROM PUMP TO RADIATOR $29.20 To Order
Photo Part No Description Price (each) Stock
867919 RETURN HOSE TO PUMP $233.74 To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.43 IN STOCK
Photo Part No Description Price (each) Stock
860134 RH ELECTRIC AXLE CONNECTOR FITTING $93.49 To Order
Photo Part No Description Price (each) Stock
860135 LH ELECTRIC AXLE CONNECTOR FITTING $93.49 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.59 IN STOCK
Photo Part No Description Price (each) Stock
291225 P clip Bracket With Sheath $4.91 IN STOCK
320600 CLIP $2.16 To Order
Photo Part No Description Price (each) Stock
16296934 SCREW 6 X 14MM $0.43 IN STOCK
16296934 SCREW 6 X 14MM $0.43 IN STOCK
Photo Part No Description Price (each) Stock
896562 CLIP $0.57 To Order
Photo Part No Description Price (each) Stock
895856 AXLE INVERTER CONNECTOR HOSE $519.45 To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.43 IN STOCK
Photo Part No Description Price (each) Stock
815157 RH ELECTRIC AXLE CONNECTOR FITTING $97.37 To Order
Photo Part No Description Price (each) Stock
815158 LH ELECTRIC AXLE CONNECTOR FITTING $97.37 To Order
Photo Part No Description Price (each) Stock
10442190 BRACKET WITH SHEATH $0.70 IN STOCK
Photo Part No Description Price (each) Stock
14040614 NUT $0.14 IN STOCK
Photo Part No Description Price (each) Stock
180137 TEMPERATURE SENSOR $28.97 IN STOCK
Photo Part No Description Price (each) Stock
10298460 GASKET $0.14 IN STOCK
Photo Part No Description Price (each) Stock
818747 DC-DC INVERTER HOSE $111.66 To Order
Photo Part No Description Price (each) Stock
296778 SCREW COLLAR $6.32 To Order
Photo Part No Description Price (each) Stock
898838 HOSE FROM DISCONNECTOR TO DC-DC AND UNDERBODY $402.56 To Order
Photo Part No Description Price (each) Stock
791527 RADIATOR OUTLET HOSE $38.94 To Order
Photo Part No Description Price (each) Stock
82329900 CLIP $0.87 IN STOCK
Photo Part No Description Price (each) Stock
934281 UNDERBODY WATER DELIVERY PIPE $194.78 To Order
Photo Part No Description Price (each) Stock
867920 UNDERBODY WATER RETURN PIPE $207.77 To Order
Photo Part No Description Price (each) Stock
85833900 SCREW $0.33 IN STOCK
Photo Part No Description Price (each) Stock
10441790 BRACKET WITH SHEATH $0.65 To Order
Photo Part No Description Price (each) Stock
934887 TUNNEL OUTLET HOSE $42.84 To Order
Photo Part No Description Price (each) Stock
905356 DELIVERY PIPE FROM TUNNEL $124.65 To Order
Photo Part No Description Price (each) Stock
322519 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
905357 RH DISCONNECTOR HOSE $53.23 To Order
Photo Part No Description Price (each) Stock
860867 PIPE FROM DISCONNECTOR TO INVERTER DELIVERY $233.74 To Order
Photo Part No Description Price (each) Stock
863677 TUNNEL OUTLET HOSE $44.14 To Order
Photo Part No Description Price (each) Stock
806850 REAR INVERTER DELIVERY PIPE $181.80 To Order
806850 REAR INVERTER DELIVERY PIPE $181.80 To Order
Photo Part No Description Price (each) Stock
320599 CLIP $1.72 To Order
Photo Part No Description Price (each) Stock
862812 REAR INVERTER INLET HOSE $168.81 To Order
Photo Part No Description Price (each) Stock
311096 RUBBER RING $4.58 To Order
Photo Part No Description Price (each) Stock
934888 RETURN HOSE TO TUNNEL $46.74 To Order
Photo Part No Description Price (each) Stock
934282 RETURN PIPE TO TUNNEL $138.38 To Order
Photo Part No Description Price (each) Stock
857679 LH DISCONNECTOR HOSE $57.13 To Order
Photo Part No Description Price (each) Stock
860869 PIPE FROM DISCONNECTER TO RETURN $324.65 To Order
Photo Part No Description Price (each) Stock
860877 HEAT EXCHANGER OUTLET HOSE $40.25 To Order
Photo Part No Description Price (each) Stock
884681 PIPE FROM HEAT EXCHANGER TO DISCONNECTOR $128.55 To Order
Photo Part No Description Price (each) Stock
860878 REAR INVERTER OUTLET HOSE $111.66 To Order
Photo Part No Description Price (each) Stock
856781 PIPE FROM INVERTER TO OBC $142.84 To Order
Photo Part No Description Price (each) Stock
856780 OBC INLET HOSE $109.07 To Order
Photo Part No Description Price (each) Stock
884680 PIPE FROM OBC TO HEAT EXCHANGER $138.38 To Order
Photo Part No Description Price (each) Stock
826127 OBC OUTLET HOSE $89.59 To Order
Photo Part No Description Price (each) Stock
316986 SPACER $7.36 To Order
Photo Part No Description Price (each) Stock
828986 INVERTER COOLING TANK $194.78 To Order
Photo Part No Description Price (each) Stock
926003 TANK SHIELD $66.22 To Order
Photo Part No Description Price (each) Stock
15689501 SCREW $0.26 IN STOCK
Photo Part No Description Price (each) Stock
927176 EMERGENCY CABLE BRACKET $46.74 To Order
Photo Part No Description Price (each) Stock
12644424 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
231626 SCREW $0.73 IN STOCK
Photo Part No Description Price (each) Stock
248061 CLIP $1.97 IN STOCK
Photo Part No Description Price (each) Stock
374030103 TANK PLUG Enquire To Order
Photo Part No Description Price (each) Stock
922241 INVERTER VENT PIPE $194.78 To Order
Photo Part No Description Price (each) Stock
891751 RIGID VENT PIPE $111.66 To Order
Photo Part No Description Price (each) Stock
250318 SNAP CLIP $0.22 IN STOCK
Photo Part No Description Price (each) Stock
874762 HOSE $146.07 To Order
Photo Part No Description Price (each) Stock
259508 CLIP $0.56 IN STOCK
Photo Part No Description Price (each) Stock
13432070 HOSE COLLAR $0.50 IN STOCK
Photo Part No Description Price (each) Stock
799507 BLEED VALVE SCREW COMPL. WITH OR $14.73 To Order
Photo Part No Description Price (each) Stock
14498801 WASHER $0.11 IN STOCK
Photo Part No Description Price (each) Stock
10450690 BRACKET WITH SHEATH $0.67 To Order
Photo Part No Description Price (each) Stock
11625724 SCREW WITH WASHER $0.90 To Order
INVERTER COOLING of Ferrari Ferrari SF90 Stradale USA Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 908587
PUMP 		$949.03 1
TO
0002 791525
RECIRCULATION PUMP MOUNTING BRACKET 		$24.65 1
TO
0003 814632
BRACKET FOR MEDIUM TEMPERATURE WATER PUMP 		$23.36 1
TO
0004 16281827
SCREW
M5 X 14
IN STOCK 		$0.22 1
IN
0005 16285127
SCREW
M5 X 16
IN STOCK 		$0.56 14
IN

262111

JUBILEE CLAMP

from $1.43

0008 791526
HOSE FROM PUMP TO RADIATOR 		$29.20 1
TO
0009 867919
RETURN HOSE TO PUMP 		$233.74 1
TO
0011 860134
RH ELECTRIC AXLE CONNECTOR FITTING 		$93.49 1
TO
0012 860135
LH ELECTRIC AXLE CONNECTOR FITTING 		$93.49 1
TO
0013 248334
SCREW
M6 X 16
IN STOCK 		$0.59 6
IN
0014 291225
P clip Bracket With Sheath
IN STOCK 		$4.91 1
IN
0014 320600
CLIP
For vehicles up to Ass.ly No. 176297, also order screw 16296924 ref. 15 		$2.16 1
TO

16296934

SCREW 6 X 14MM

from $0.43

0016 896562
CLIP 		$0.57 2
TO
0017 895856
AXLE INVERTER CONNECTOR HOSE 		$519.45 1
TO
0019 815157
RH ELECTRIC AXLE CONNECTOR FITTING 		$97.37 1
TO
0020 815158
LH ELECTRIC AXLE CONNECTOR FITTING 		$97.37 1
TO
0021 10442190
BRACKET WITH SHEATH
IN STOCK 		$0.70 (68.9% off) 1
IN
0022 14040614
NUT
IN STOCK 		$0.14 1
IN
0023 180137
TEMPERATURE SENSOR
IN STOCK 		$28.97 (12.2% off) 3
IN
0024 10298460
GASKET
No longer supplied
IN STOCK 		$0.14 (88.8% off) 3
IN
0025 818747
DC-DC INVERTER HOSE 		$111.66 1
TO
0026 296778
SCREW COLLAR 		$6.32 1
TO
0027 898838
HOSE FROM DISCONNECTOR TO DC-DC AND UNDERBODY 		$402.56 1
TO
0028 791527
RADIATOR OUTLET HOSE 		$38.94 1
TO
0029 82329900
CLIP
IN STOCK 		$0.87 1
IN
0030 934281
UNDERBODY WATER DELIVERY PIPE 		$194.78 1
TO
0031 867920
UNDERBODY WATER RETURN PIPE 		$207.77 1
TO
0032 85833900
SCREW
M5 X 16
IN STOCK 		$0.33 2
IN
0033 10441790
BRACKET WITH SHEATH 		$0.65 (81.2% off) 3
TO
0034 934887
TUNNEL OUTLET HOSE 		$42.84 1
TO
0035 905356
DELIVERY PIPE FROM TUNNEL 		$124.65 1
TO
0036 322519
CLIP 		- 3
PE
 Enquire
0037 905357
RH DISCONNECTOR HOSE 		$53.23 1
TO
0038 860867
PIPE FROM DISCONNECTOR TO INVERTER DELIVERY 		$233.74 1
TO
0039 863677
TUNNEL OUTLET HOSE 		$44.14 1
TO

806850

REAR INVERTER DELIVERY PIPE

from $181.80

0041 320599
CLIP
1 compartment- 		$1.72 1
TO
0042 862812
REAR INVERTER INLET HOSE 		$168.81 1
TO
0043 311096
RUBBER RING 		$4.58 1
TO
0044 934888
RETURN HOSE TO TUNNEL 		$46.74 1
TO
0045 934282
RETURN PIPE TO TUNNEL 		$138.38 1
TO
0046 857679
LH DISCONNECTOR HOSE 		$57.13 1
TO
0047 860869
PIPE FROM DISCONNECTER TO RETURN 		$324.65 1
TO
0048 860877
HEAT EXCHANGER OUTLET HOSE 		$40.25 1
TO
0049 884681
PIPE FROM HEAT EXCHANGER TO DISCONNECTOR 		$128.55 1
TO
0050 860878
REAR INVERTER OUTLET HOSE 		$111.66 1
TO
0051 856781
PIPE FROM INVERTER TO OBC 		$142.84 1
TO
0052 856780
OBC INLET HOSE 		$109.07 1
TO
0053 884680
PIPE FROM OBC TO HEAT EXCHANGER 		$138.38 1
TO
0054 826127
OBC OUTLET HOSE 		$89.59 1
TO
0055 316986
SPACER 		$7.36 2
TO
0056 828986
INVERTER COOLING TANK 		$194.78 1
TO
0057 926003
TANK SHIELD 		$66.22 1
TO
0058 15689501
SCREW
IN STOCK 		$0.26 2
IN
0059 927176
EMERGENCY CABLE BRACKET 		$46.74 1
TO
0060 12644424
WASHER
IN STOCK 		$0.06 (85% off) 1
IN
0061 231626
SCREW
M6 X 70
IN STOCK 		$0.73 1
IN
0062 248061
CLIP
Black
IN STOCK 		$1.97 1
IN
0063 374030103
TANK PLUG 		- 1
PE
 Enquire
0064 922241
INVERTER VENT PIPE 		$194.78 1
TO
0065 891751
RIGID VENT PIPE 		$111.66 1
TO
0066 250318
SNAP CLIP
IN STOCK 		$0.22 1
IN
0067 874762
HOSE 		$146.07 1
TO
0068 259508
CLIP
1 compartment-
IN STOCK 		$0.56 2
IN
0069 13432070
HOSE COLLAR
D. 15.7
IN STOCK 		$0.50 (53.3% off) 1
IN
0070 799507
BLEED VALVE SCREW COMPL. WITH OR 		$14.73 3
TO
0071 14498801
WASHER
D. 6.45 - 16 X 2
IN STOCK 		$0.11 (45% off) 1
IN
0072 10450690
BRACKET WITH SHEATH 		$0.67 (60.6% off) 1
TO
0073 11625724
SCREW WITH WASHER
M6 X 16 		$0.90 1
TO

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout
