Ferrari SF90 Spider USA - CYLINDER HEADS - TIMING

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
819432 RH INTAKE CAMSHAFT $317.19 To Order
Photo Part No Description Price (each) Stock
819433 LH INTAKE CAMSHAFT $317.19 To Order
Photo Part No Description Price (each) Stock
819434 RH EXHAUST CAMSHAFT $317.19 To Order
Photo Part No Description Price (each) Stock
819435 LH EXHAUST CAMSHAFT $317.19 To Order
Photo Part No Description Price (each) Stock
246965 O-RING $11.43 IN STOCK
Photo Part No Description Price (each) Stock
240559 DIAMOND COATED WASHER $8.35 IN STOCK
Photo Part No Description Price (each) Stock
296310 SPACER $21.91 To Order
Photo Part No Description Price (each) Stock
295300 VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT $541.44 To Order
Photo Part No Description Price (each) Stock
279099 VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT $554.33 To Order
Photo Part No Description Price (each) Stock
287708 SCREW M14 X 1.5 $12.43 IN STOCK
Photo Part No Description Price (each) Stock
960124 INTAKE VALVE $37.36 To Order
960123 EXHAUST VALVE $76.04 To Order
Photo Part No Description Price (each) Stock
287553 LOWER INTAKE VALVE SPRING CAP $2.75 To Order
287551 LOWER EXHAUST VALVE SPRING CAP $2.67 To Order
Photo Part No Description Price (each) Stock
960230 SPRING $20.61 To Order
821149 SPRING $18.03 To Order
Photo Part No Description Price (each) Stock
221473 VALVE STEM OIL SEAL $1.82 To Order
Photo Part No Description Price (each) Stock
179763 VALVE SPRING SEMI-CONE $0.86 To Order
Photo Part No Description Price (each) Stock
313581 UPPER VALVE SPRING CAP $8.89 To Order
Photo Part No Description Price (each) Stock
816232 COMPL. FINGER-TAPPET $43.81 To Order
840556 COMPL. FINGER-TAPPET $47.68 To Order

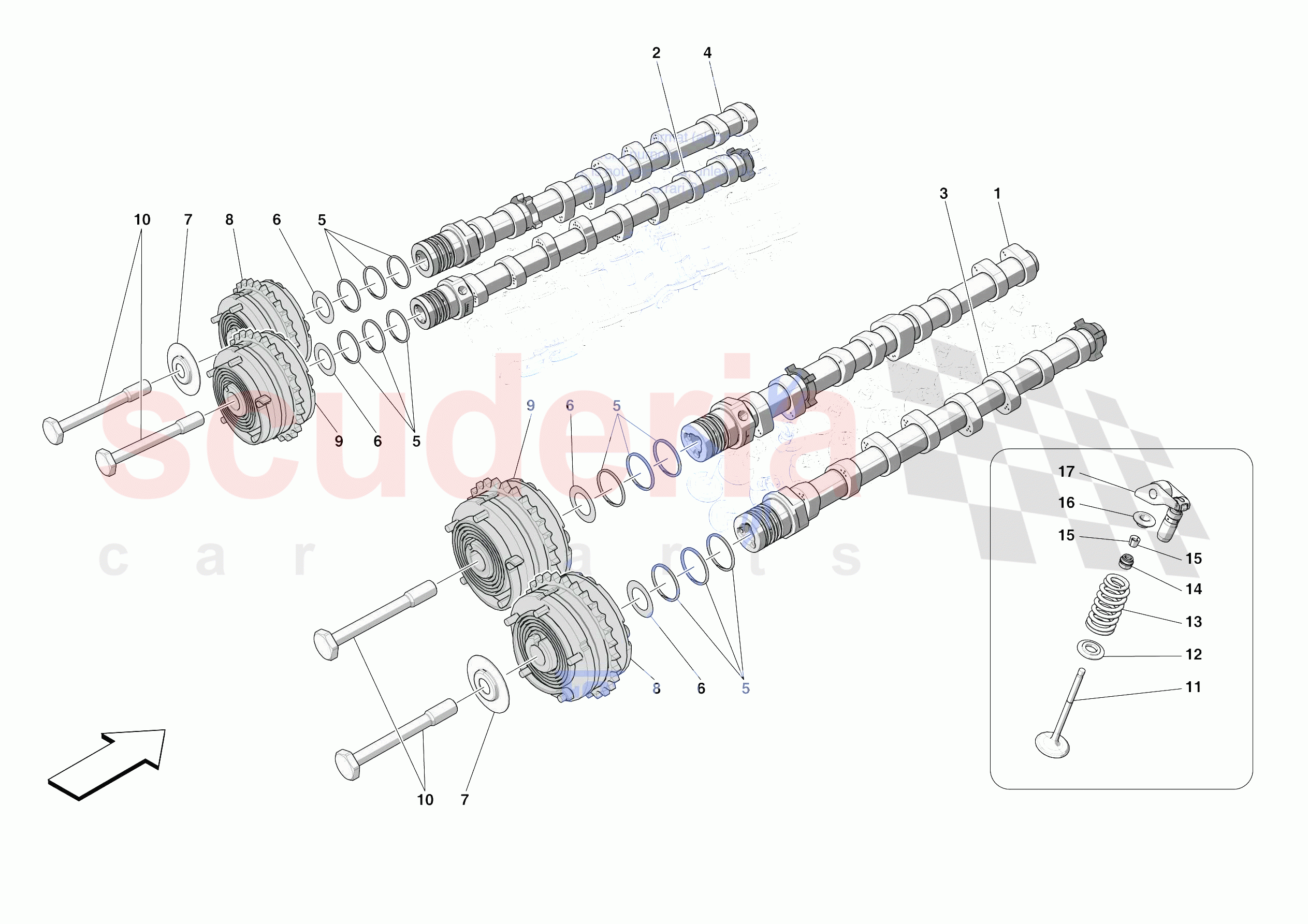

CYLINDER HEADS - TIMING of Ferrari Ferrari SF90 Spider USA Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 819432
RH INTAKE CAMSHAFT 		$317.19 1
TO
0002 819433
LH INTAKE CAMSHAFT 		$317.19 1
TO
0003 819434
RH EXHAUST CAMSHAFT 		$317.19 1
TO
0004 819435
LH EXHAUST CAMSHAFT 		$317.19 1
TO
0005 246965
O-RING
Also included in engine gasket set
IN STOCK 		$11.43 12
IN
0006 240559
DIAMOND COATED WASHER
IN STOCK 		$8.35 4
IN
0007 296310
SPACER 		$21.91 2
TO
0008 295300
VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT 		$541.44 2
TO
0009 279099
VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT 		$554.33 2
TO
0010 287708
SCREW M14 X 1.5
M14 X 1.5
IN STOCK 		$12.43 4
IN
0011 960124
INTAKE VALVE 		$37.36 16
TO
0011 960123
EXHAUST VALVE 		$76.04 16
TO
0012 287553
LOWER INTAKE VALVE SPRING CAP 		$2.75 16
TO
0012 287551
LOWER EXHAUST VALVE SPRING CAP 		$2.67 16
TO
0013 960230
SPRING
Intake 		$20.61 16
TO
0013 821149
SPRING
Exhaust; Intake 		$18.03 16
TO
0014 221473
VALVE STEM OIL SEAL 		$1.82 (30% off) 32
TO
0015 179763
VALVE SPRING SEMI-CONE 		$0.86 (4.4% off) 64
TO
0016 313581
UPPER VALVE SPRING CAP 		$8.89 32
TO
0017 816232
COMPL. FINGER-TAPPET
Applies until depletion 		$43.81 32
TO
0017 840556
COMPL. FINGER-TAPPET
Applicable after depletion of 816232 		$47.68 32
TO
