Roof - Kinematics

Ferrari Portofino M USA

Find Your Part

Ferrari Portofino M USA - ROOF - KINEMATICS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
762702 COMPL. FRONT LOCK $3,058.15 To Order
Photo Part No Description Price (each) Stock
768592 FRONT LOCK STRIKER SENSOR KIT $337.99 To Order
Photo Part No Description Price (each) Stock
70001687 BAR FASTENER BRACKET KIT $46.71 To Order
Photo Part No Description Price (each) Stock
768594 RH TONNEAU COVER AND LUGGAGE COMPARTMENT KINEMATICS $7,636.32 To Order
Photo Part No Description Price (each) Stock
768593 LH TONNEAU COVER AND LUGGAGE COMPARTMENT KINEMATICS $7,636.32 To Order
Photo Part No Description Price (each) Stock
763320 TC WIRING HARNESS KIT, RH AND LH $402.38 To Order
Photo Part No Description Price (each) Stock
860504 LONGITUDINAL CENTRING BRACKET KIT FOR REAR ROOF PANEL $194.69 To Order
Photo Part No Description Price (each) Stock
860505 LONGITUDINAL CENTRING GUIDE KIT FOR TONNEAU COVER $168.73 To Order
Photo Part No Description Price (each) Stock
89257400 COMPL. RH STRIKER $597.08 To Order
Photo Part No Description Price (each) Stock
89257300 COMPL. LH STRIKER $713.90 To Order
Photo Part No Description Price (each) Stock
80676200 REAR KINEMATICS BUSH $41.52 To Order
Photo Part No Description Price (each) Stock
770034 RH LATCH COMPL. WITH SENSOR $246.61 To Order
Photo Part No Description Price (each) Stock
762718 RH LATCH $51.91 To Order
Photo Part No Description Price (each) Stock
860534 TRAVEL LIMIT MOUNT KIT $111.62 To Order
Photo Part No Description Price (each) Stock
780905 RH ROOF MOUNTING BRACKET $33.74 To Order
Photo Part No Description Price (each) Stock
780904 LH ROOF MOUNTING BRACKET $33.74 To Order
Photo Part No Description Price (each) Stock
89352800 TONNEAU COVER FILM $272.57 To Order
815633 TONNEAU COVER FILM $272.57 To Order
Photo Part No Description Price (each) Stock
16287524 SCREW $1.21 IN STOCK
Photo Part No Description Price (each) Stock
219344 WASHER $0.30 IN STOCK
Photo Part No Description Price (each) Stock
812003 WINDSCREEN STRIKER PLATE $11.67 To Order
Photo Part No Description Price (each) Stock
84503800 SHIM KIT FOR ADJUSTING ROOF RELATIVE TO WINDSCREEN $48.01 To Order
Photo Part No Description Price (each) Stock
12646624 WASHER $0.22 IN STOCK
Photo Part No Description Price (each) Stock
14305334 SCREW $0.20 IN STOCK

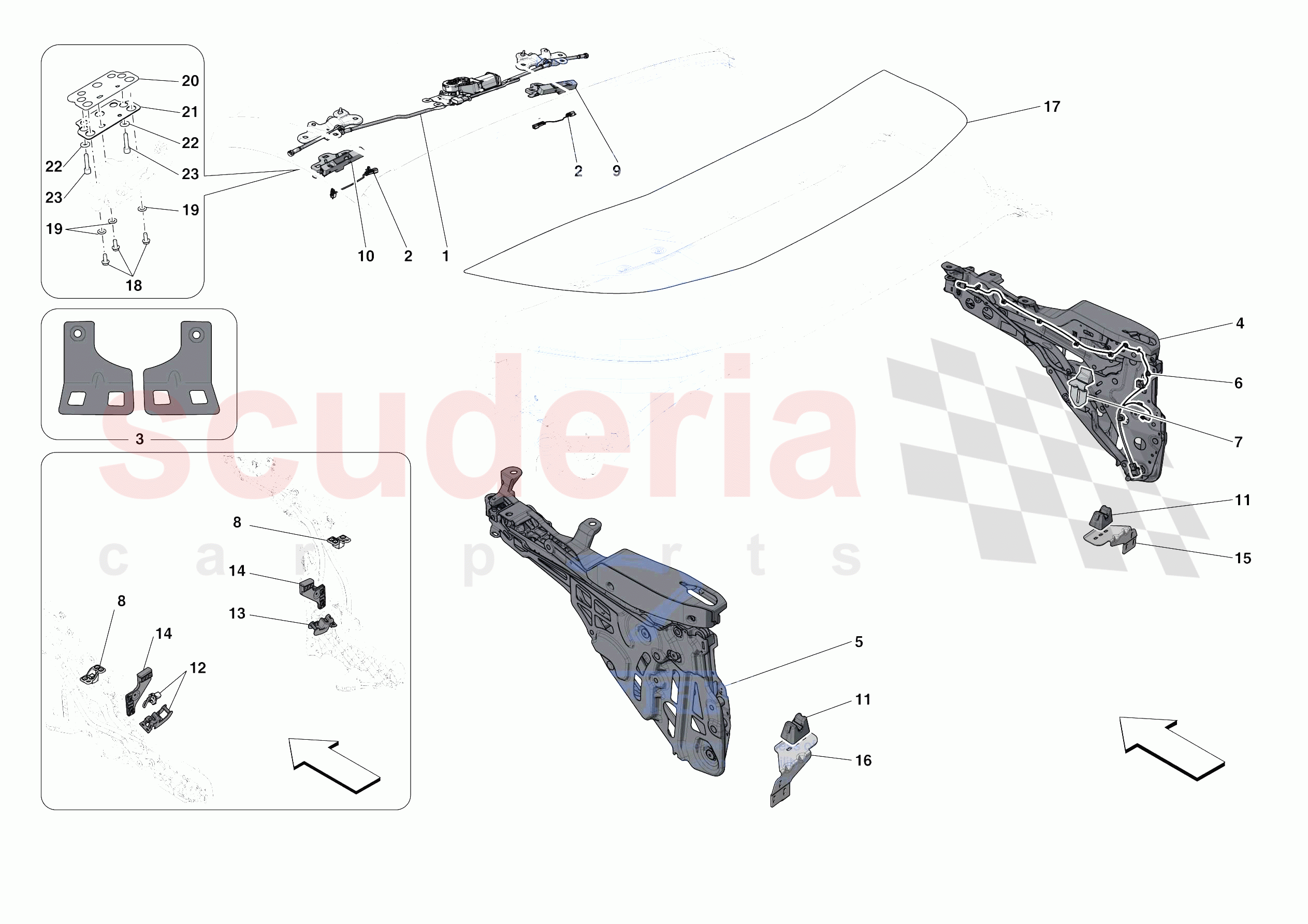

ROOF - KINEMATICS of Ferrari Ferrari Portofino M USA Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 762702
COMPL. FRONT LOCK 		$3,058.15 1
TO
0002 768592
FRONT LOCK STRIKER SENSOR KIT 		$337.99 1
TO
0003 70001687
BAR FASTENER BRACKET KIT 		$46.71 1
TO
0004 768594
RH TONNEAU COVER AND LUGGAGE COMPARTMENT KINEMATICS 		$7,636.32 1
TO
0005 768593
LH TONNEAU COVER AND LUGGAGE COMPARTMENT KINEMATICS 		$7,636.32 1
TO
0006 763320
TC WIRING HARNESS KIT, RH AND LH 		$402.38 1
TO
0007 860504
LONGITUDINAL CENTRING BRACKET KIT FOR REAR ROOF PANEL 		$194.69 1
TO
0008 860505
LONGITUDINAL CENTRING GUIDE KIT FOR TONNEAU COVER 		$168.73 1
TO
0009 89257400
COMPL. RH STRIKER 		$597.08 1
TO
0010 89257300
COMPL. LH STRIKER 		$713.90 1
TO
0011 80676200
REAR KINEMATICS BUSH 		$41.52 2
TO
0012 770034
RH LATCH COMPL. WITH SENSOR 		$246.61 1
TO
0013 762718
RH LATCH 		$51.91 1
TO
0014 860534
TRAVEL LIMIT MOUNT KIT 		$111.62 1
TO
0015 780905
RH ROOF MOUNTING BRACKET 		$33.74 1
TO
0016 780904
LH ROOF MOUNTING BRACKET 		$33.74 1
TO
0017 89352800
TONNEAU COVER FILM 		$272.57 1
TO
0017 815633
TONNEAU COVER FILM
Matte 		$272.57 1
TO
0018 16287524
SCREW
M8 X 25
IN STOCK 		$1.21 6
IN
0019 219344
WASHER
D. 8.5 X 24 X 3
IN STOCK 		$0.30 6
IN
0020 812003
WINDSCREEN STRIKER PLATE 		$11.67 2
TO
0021 84503800
SHIM KIT FOR ADJUSTING ROOF RELATIVE TO WINDSCREEN 		$48.01 2
TO
0022 12646624
WASHER
IN STOCK 		$0.22 (24.1% off) 4
IN
0023 14305334
SCREW
M6 X 20
IN STOCK 		$0.20 (55.6% off) 4
IN
