Name: LUGGAGE COMPARTMENT MATS
Rating: 5.0 (1 reviews)

Diagram
INFO

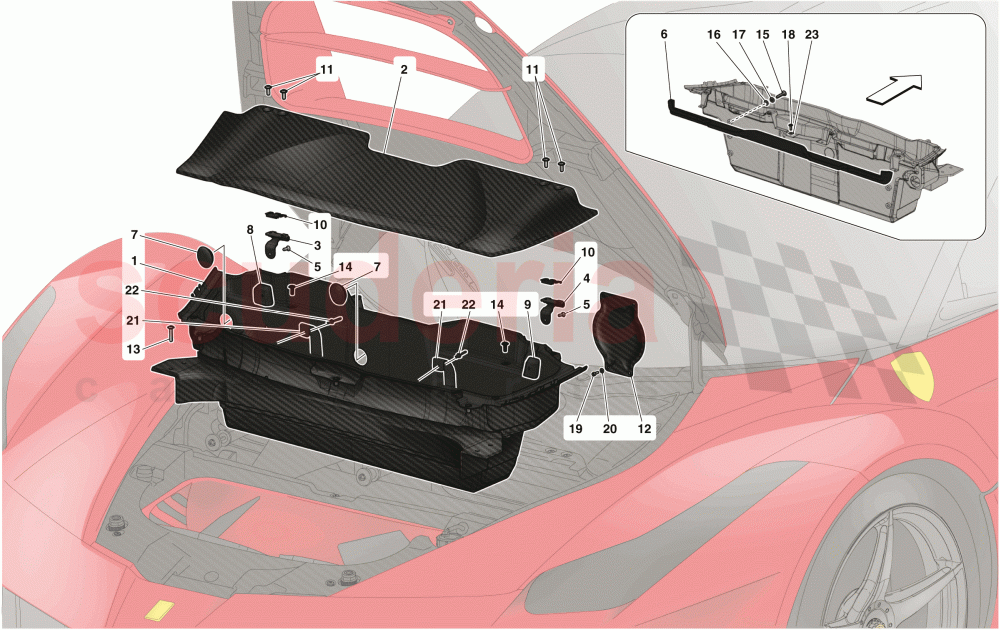

LUGGAGE COMPARTMENT MATS of Ferrari Ferrari LaFerrari

Ferrari LaFerrari - LUGGAGE COMPARTMENT MATS

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	86469400	LUGGAGE TRAY	$41,483.60	To Order
	86478000	LUGGAGE TRAY	$31,146.33	To Order
	85860800	LUGGAGE TRAY	$48,390.72	To Order

Photo	Part No	Description	Price (each)	Stock
	86470300	COMPL. LUGGAGE TRAY COVER	$7,014.56	To Order
	85940000	COMPL. LUGGAGE TRAY COVER	$6,997.70	To Order

Photo	Part No	Description	Price (each)	Stock
	86469500	TRAY COVER HINGE	$2,525.96	To Order
	85600400	RH TRAY COVER HINGE	$337.46	To Order

Photo	Part No	Description	Price (each)	Stock
	86469500	TRAY COVER HINGE	$2,525.96	To Order
	85600500	LH TRAY COVER HINGE	$337.46	To Order

Photo	Part No	Description	Price (each)	Stock
	62797600	Allen Bolt Countersunk M6 x 20	$0.98	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	85683500	REAR SEAL	$123.30	To Order

Photo	Part No	Description	Price (each)	Stock
	14508087	PLUG	$2.52	To Order

Photo	Part No	Description	Price (each)	Stock
	85949400	RH HINGE INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85949500	LH HINGE INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86469700	TRAY LID COVER RETAINER SPRING	$645.84	To Order
	85861200	TRAY LID COVER RETAINER SPRING	$220.64	To Order

Photo	Part No	Description	Price (each)	Stock
	915271	SCREW M6 X 15	$1.16	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	85736400	CHASSIS COVER	$1,002.81	To Order

Photo	Part No	Description	Price (each)	Stock
	14306474	SCREW	$0.39	To Order

Photo	Part No	Description	Price (each)	Stock
	915271	SCREW M6 X 15	$1.16	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	65925000	SCREW	$1.55	To Order
	85800500	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	IN STOCK
	13550225	WASHER	$0.56	To Order

Photo	Part No	Description	Price (each)	Stock
	85882500	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	11625524	SCREW	$0.71	IN STOCK
	85077900	SCREW	$0.17	To Order

Photo	Part No	Description	Price (each)	Stock
	16281827	SCREW	$0.22	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	85739500	WASHER	$3.12	To Order

Photo	Part No	Description	Price (each)	Stock
	86263200	TOOLKIT BAG STRAP	$623.03	To Order

Photo	Part No	Description	Price (each)	Stock
	14642797	RIVET	$0.48	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	IN STOCK

Diagram Tap to enlarge

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key	Add to Cart
	1	86469400	LUGGAGE TRAY	86469400 LUGGAGE TRAY Applicable for J	$41,483.60	1	TO
	1	86478000	LUGGAGE TRAY	86478000 LUGGAGE TRAY Not for J; Applicable from Ass. No. 121616	$31,146.33	1	TO
	1	85860800	LUGGAGE TRAY	85860800 LUGGAGE TRAY Not for J; Applicable up to Ass. No. 121615	$48,390.72	1	TO
	2	86470300	COMPL. LUGGAGE TRAY COVER	86470300 COMPL. LUGGAGE TRAY COVER Applicable for J	$7,014.56	1	TO
	2	85940000	COMPL. LUGGAGE TRAY COVER	85940000 COMPL. LUGGAGE TRAY COVER Not for J	$6,997.70	1	TO
	86469500		TRAY COVER HINGE	from $2,525.96
3 TRAY COVER HINGE $2,525.96 1 TO 4 TRAY COVER HINGE $2,525.96 1 TO
	3	85600400	RH TRAY COVER HINGE	85600400 RH TRAY COVER HINGE Not for J	$337.46	1	TO
	4	85600500	LH TRAY COVER HINGE	85600500 LH TRAY COVER HINGE Not for J	$337.46	1	TO
	5	62797600	Allen Bolt Countersunk M6 x 20 IN STOCK	62797600 Allen Bolt Countersunk M6 x 20 IN STOCK	$0.98 MSRP: ~~1.45~~ (32.4% off)	2	IN
	6	85683500	REAR SEAL	85683500 REAR SEAL	$123.30	1	TO
	7	14508087	PLUG	14508087 PLUG	$2.52	2	TO
	8	85949400	RH HINGE INSERT	85949400 RH HINGE INSERT Included with tub, ref. 1; No longer supplied	-	1	PE	Enquire
	9	85949500	LH HINGE INSERT	85949500 LH HINGE INSERT Included with tub, ref. 1; No longer supplied	-	1	PE	Enquire
	10	86469700	TRAY LID COVER RETAINER SPRING	86469700 TRAY LID COVER RETAINER SPRING Applicable for J	$645.84	2	TO
	10	85861200	TRAY LID COVER RETAINER SPRING	85861200 TRAY LID COVER RETAINER SPRING Not for J	$220.64	2	TO
	915271		SCREW M6 X 15	from $1.16
11 SCREW M6 X 15 IN STOCK $1.16 4 IN 14 SCREW M6 X 15 IN STOCK $1.16 4 IN
	12	85736400	CHASSIS COVER	85736400 CHASSIS COVER	$1,002.81	1	TO
	13	14306474	SCREW	14306474 SCREW M8 X 25	$0.39	4	TO
	15	65925000	SCREW	65925000 SCREW	$1.55	6	TO
	15	85800500	SCREW	85800500 SCREW No longer supplied; Replaced by 86141400	-	6	PE	Enquire
	12643724		WASHER	from $0.06 MSRP: ~~0.50~~ (88% off)
16 WASHER IN STOCK $0.06 MSRP: ~~0.50~~ (88% off) 6 IN 23 WASHER IN STOCK $0.06 MSRP: ~~0.50~~ (88% off) 4 IN
	16	13550225	WASHER	13550225 WASHER No longer supplied; Replaced by 12643778	$0.56	14	TO
	17	85882500	WASHER	85882500 WASHER No longer supplied	$0.06	14	TO
	18	11625524	SCREW IN STOCK	11625524 SCREW IN STOCK	$0.71	4	IN
	18	85077900	SCREW	85077900 SCREW No longer supplied; Replaced by 86141300	$0.17	4	TO
	19	16281827	SCREW IN STOCK	16281827 SCREW IN STOCK	$0.22	4	IN
	20	85739500	WASHER	85739500 WASHER	$3.12	4	TO
	21	86263200	TOOLKIT BAG STRAP	86263200 TOOLKIT BAG STRAP	$623.03	2	TO
	22	14642797	RIVET	14642797 RIVET No longer supplied	$0.48	4	TO

Luggage Compartment Mats

Ferrari LaFerrari

Ferrari LaFerrari - LUGGAGE COMPARTMENT MATS
