Ferrari GTC4Lusso T - FUEL SYSTEM PUMPS AND PIPES

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
273540 COMPL. INCLINATION SENSOR $1,858.62 To Order
Photo Part No Description Price (each) Stock
282784 FUEL PUMP FILTER $647.33 To Order
Photo Part No Description Price (each) Stock
282785 FUEL PUMP FILTER $1,024.15 IN STOCK
Photo Part No Description Price (each) Stock
275998 FASTENER RING $72.71 To Order
Photo Part No Description Price (each) Stock
239413 O-RING $4.83 IN STOCK
Photo Part No Description Price (each) Stock
275314 O-RING $6.17 IN STOCK
Photo Part No Description Price (each) Stock
13046011 NUT $0.33 To Order
Photo Part No Description Price (each) Stock
272086 FUEL PUMP $1,655.38 IN STOCK
Photo Part No Description Price (each) Stock
272087 LH FUEL PUMP $1,505.09 IN STOCK
Photo Part No Description Price (each) Stock
336395 LOWER CONNECTOR PIPE $363.61 To Order
Photo Part No Description Price (each) Stock
329074 FUEL DELIVERY PIPE, FRONT SECTION $122.06 To Order
Photo Part No Description Price (each) Stock
329075 LOW PRESSURE FUEL PIPE $441.52 To Order
Photo Part No Description Price (each) Stock
198253 CLIP $3.29 To Order
Photo Part No Description Price (each) Stock
270767 LOWER PIPE SHIELD $35.04 To Order
Photo Part No Description Price (each) Stock
14622387 CAP $2.76 IN STOCK
Photo Part No Description Price (each) Stock
88831000 GRUB SCREW M5 X 40 $0.50 IN STOCK
Photo Part No Description Price (each) Stock
313045 LOWER PIPE HEAT SHIELD $29.85 To Order
Photo Part No Description Price (each) Stock
13046011 NUT $0.33 To Order
Photo Part No Description Price (each) Stock
88831000 GRUB SCREW M5 X 40 $0.50 IN STOCK
Photo Part No Description Price (each) Stock
257886 CLIP $0.65 To Order
Photo Part No Description Price (each) Stock
10441290 BRACKET WITH SHEATH $0.54 IN STOCK
Photo Part No Description Price (each) Stock
16286121 SCREW $0.67 IN STOCK
Photo Part No Description Price (each) Stock
235682 PIPE CLIP $0.62 To Order
Photo Part No Description Price (each) Stock
285160 FUEL DELIVERY PIPE, REAR SECTION $298.66 To Order
Photo Part No Description Price (each) Stock
271937 FUEL DELIVERY PIPE, CENTRE SECTION $61.01 To Order
Photo Part No Description Price (each) Stock
281598 COLLAR $2.76 To Order
Photo Part No Description Price (each) Stock
177553 CLAMP $0.43 To Order
Photo Part No Description Price (each) Stock
276001 FASTENER RING $242.42 To Order
Photo Part No Description Price (each) Stock
85833900 SCREW $0.33 IN STOCK
Photo Part No Description Price (each) Stock
11001124 STUD BOLT $62.33 To Order
Photo Part No Description Price (each) Stock
303789 RH FUEL PIPE FASTENER BRACKET $37.64 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.59 IN STOCK
Photo Part No Description Price (each) Stock
301717 LH FUEL PIPE FASTENER BRACKET $18.16 To Order
Photo Part No Description Price (each) Stock
204777 CLIP $0.70 To Order
Photo Part No Description Price (each) Stock
212671 SPACER CLIP FOR 2 PIPES D10-D16 $0.84 To Order
Photo Part No Description Price (each) Stock
296614 BRACKET WITH SHEATH $25.96 To Order
Photo Part No Description Price (each) Stock
304212 BRACKET $36.35 To Order
Photo Part No Description Price (each) Stock
13604015 SPACER $0.75 To Order
Photo Part No Description Price (each) Stock
10441290 BRACKET WITH SHEATH $0.54 IN STOCK
Photo Part No Description Price (each) Stock
14040614 NUT $0.14 IN STOCK
Photo Part No Description Price (each) Stock
231619 SCREW $0.30 IN STOCK

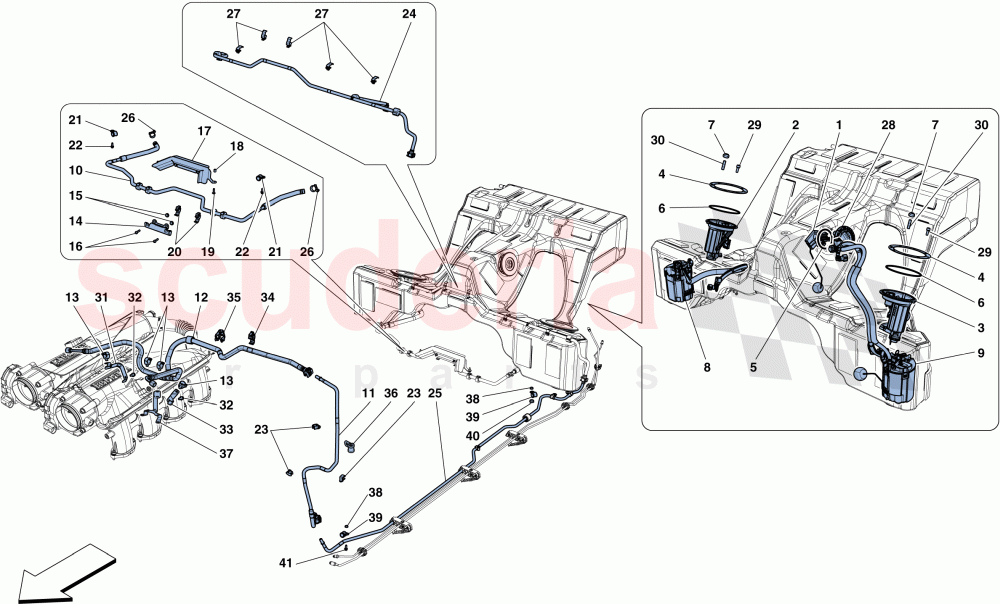

FUEL SYSTEM PUMPS AND PIPES of Ferrari Ferrari GTC4Lusso T Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 273540
COMPL. INCLINATION SENSOR 		$1,858.62 (46.1% off) 1
TO
2 282784
FUEL PUMP FILTER 		$647.33 1
TO
3 282785
FUEL PUMP FILTER
IN STOCK 		$1,024.15 1
IN
4 275998
FASTENER RING 		$72.71 2
TO
5 239413
O-RING
IN STOCK 		$4.83 (66.1% off) 1
IN
6 275314
O-RING
IN STOCK 		$6.17 (19.3% off) 2
IN

13046011

NUT

from $0.33

8 272086
FUEL PUMP
IN STOCK 		$1,655.38 1
IN
9 272087
LH FUEL PUMP
IN STOCK 		$1,505.09 1
IN
10 336395
LOWER CONNECTOR PIPE 		$363.61 1
TO
11 329074
FUEL DELIVERY PIPE, FRONT SECTION 		$122.06 1
TO
12 329075
LOW PRESSURE FUEL PIPE 		$441.52 1
TO
13 198253
CLIP 		$3.29 (14.5% off) 4
TO
14 270767
LOWER PIPE SHIELD 		$35.04 1
TO
15 14622387
CAP
IN STOCK 		$2.76 2
IN

88831000

GRUB SCREW M5 X 40

from $0.50

17 313045
LOWER PIPE HEAT SHIELD 		$29.85 1
TO
20 257886
CLIP 		$0.65 2
TO

10441290

BRACKET WITH SHEATH

from $0.54 (67.9% off)

22 16286121
SCREW
M6 X 18
IN STOCK 		$0.67 (50.4% off) 2
IN
23 235682
PIPE CLIP 		$0.62 4
TO
24 285160
FUEL DELIVERY PIPE, REAR SECTION 		$298.66 1
TO
25 271937
FUEL DELIVERY PIPE, CENTRE SECTION 		$61.01 1
TO
26 281598
COLLAR 		$2.76 2
TO
27 177553
CLAMP 		$0.43 (65.6% off) 5
TO
28 276001
FASTENER RING 		$242.42 1
TO
29 85833900
SCREW
M5 X 16
IN STOCK 		$0.33 20
IN
30 11001124
STUD BOLT 		$62.33 2
TO
31 303789
RH FUEL PIPE FASTENER BRACKET 		$37.64 1
TO
32 248334
SCREW
M6 X 14
IN STOCK 		$0.59 2
IN
33 301717
LH FUEL PIPE FASTENER BRACKET 		$18.16 1
TO
34 204777
CLIP 		$0.70 1
TO
35 212671
SPACER CLIP FOR 2 PIPES D10-D16 		$0.84 1
TO
36 296614
BRACKET WITH SHEATH 		$25.96 1
TO
37 304212
BRACKET 		$36.35 1
TO
38 13604015
SPACER 		$0.75 (5.1% off) 3
TO
40 14040614
NUT
IN STOCK 		$0.14 2
IN
41 231619
SCREW
M6 X 22
IN STOCK 		$0.30 1
IN
