Cooling-Lubrication For Turbocharging System

Ferrari GTC4Lusso T

Find Your Part

Ferrari GTC4Lusso T - COOLING-LUBRICATION FOR TURBOCHARGING SYSTEM

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
307669 WATER DELIVERY PIPE TO LH TURBO $207.77 To Order
307668 WATER DELIVERY PIPE TO RH TURBO $194.78 To Order
Photo Part No Description Price (each) Stock
297184 HOSE CONNECTOR $8.31 To Order
Photo Part No Description Price (each) Stock
10280060 WASHER COPPER D14. 20 X 1.5 $0.20 IN STOCK
Photo Part No Description Price (each) Stock
231619 SCREW $0.30 IN STOCK
Photo Part No Description Price (each) Stock
303509 WATER RETURN PIPE FROM RH TURBO $272.69 To Order
297747 WATER RETURN PIPE FROM LH TURBO $259.71 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.59 IN STOCK
Photo Part No Description Price (each) Stock
306837 OIL DELIVERY PIPE TO LH TURBO $298.66 To Order
297862 OIL DELIVERY PIPE TO RH TURBO $298.66 To Order
Photo Part No Description Price (each) Stock
297185 HOSE CONNECTOR $6.66 To Order
Photo Part No Description Price (each) Stock
10261060 GASKET COPPER 12 - 16 X 1.5 $0.14 IN STOCK
Photo Part No Description Price (each) Stock
297864 OIL RETURN PIPE FROM RH TURBO $194.78 To Order
306347 OIL RETURN PIPE FROM LH TURBO $168.81 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.59 IN STOCK
231620 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
248334 SCREW $0.59 IN STOCK
282406 SCREW $20.77 To Order
Photo Part No Description Price (each) Stock
287722 O-RING $6.28 IN STOCK
Photo Part No Description Price (each) Stock
271457 OIL DRAIN PIPE GASKET $25.96 To Order
295801 GASKET $25.96 To Order

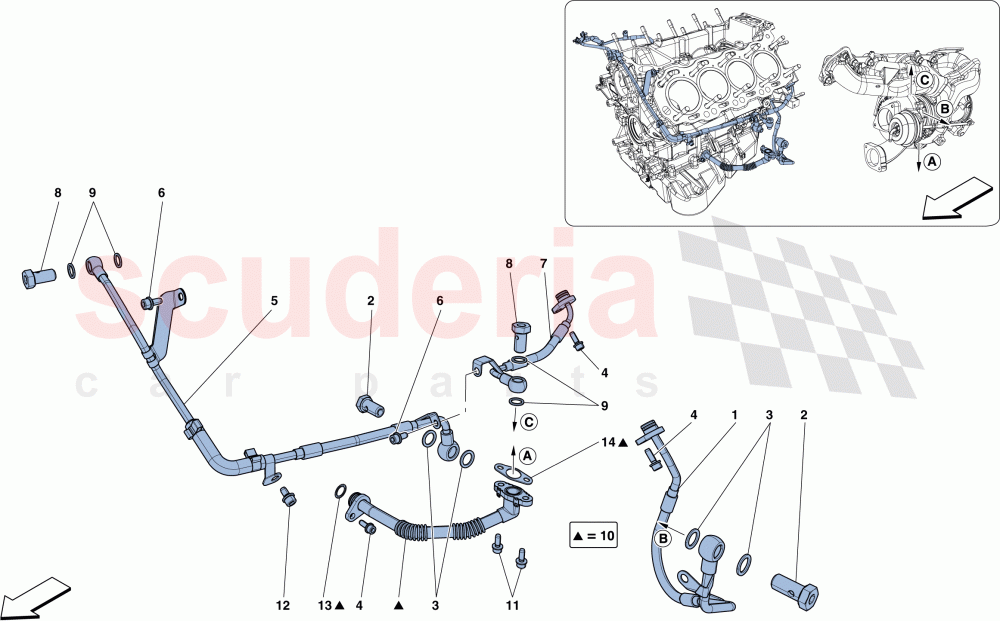

COOLING-LUBRICATION FOR TURBOCHARGING SYSTEM of Ferrari Ferrari GTC4Lusso T Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 307669
WATER DELIVERY PIPE TO LH TURBO 		$207.77 1
TO
1 307668
WATER DELIVERY PIPE TO RH TURBO 		$194.78 1
TO
2 297184
HOSE CONNECTOR 		$8.31 4
TO
3 10280060
WASHER COPPER D14. 20 X 1.5
Also comes with engine gasket set
IN STOCK 		$0.20 (80% off) 8
IN
4 231619
SCREW
M6 X 18
IN STOCK 		$0.30 6
IN
5 303509
WATER RETURN PIPE FROM RH TURBO 		$272.69 1
TO
5 297747
WATER RETURN PIPE FROM LH TURBO 		$259.71 1
TO

248334

SCREW

from $0.59

7 306837
OIL DELIVERY PIPE TO LH TURBO 		$298.66 1
TO
7 297862
OIL DELIVERY PIPE TO RH TURBO 		$298.66 1
TO
8 297185
HOSE CONNECTOR 		$6.66 4
TO
9 10261060
GASKET COPPER 12 - 16 X 1.5
Also comes with engine gasket set
IN STOCK 		$0.14 (71.4% off) 8
IN
10 297864
OIL RETURN PIPE FROM RH TURBO 		$194.78 1
TO
10 306347
OIL RETURN PIPE FROM LH TURBO 		$168.81 1
TO
11 231620
SCREW
M6 X 25; Fastening to RH turbo
IN STOCK 		$0.31 (11.4% off) 2
IN
12 282406
SCREW
Fastening RH return pipe 		$20.77 1
TO
13 287722
O-RING
IN STOCK 		$6.28 2
IN
14 271457
OIL DRAIN PIPE GASKET
Applicable for pipe 306347 		$25.96 1
TO
14 295801
GASKET
Applicable for pipe 297864 		$25.96 1
TO
