Structures And Elements, Centre Of Vehicle

Ferrari FF

Find Your Part

Ferrari FF - STRUCTURES AND ELEMENTS, CENTRE OF VEHICLE

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
283285 COMPL. TUNNEL $14,508.95 To Order
279341 COMPL. TUNNEL $19,690.00 To Order
283384 COMPL. TUNNEL $19,074.45 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
323632 RH SILL BEAM PILLAR SECTION Enquire To Order
265385 RH SILL BEAM PILLAR SECTION $10,165.75 To Order
322434 RH SILL BEAM PILLAR SECTION Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
322423 LH SILL BEAM PILLAR SECTION Enquire To Order
265384 LH SILL BEAM PILLAR SECTION $10,165.75 To Order
Photo Part No Description Price (each) Stock
265590 INTERNAL RH FRONT TRUSS $13.82 To Order
Photo Part No Description Price (each) Stock
265591 INTERNAL LH FRONT TRUSS $13.82 To Order
Photo Part No Description Price (each) Stock
265597 EXTERNAL RH PILLAR TRUSS $129.85 To Order
Photo Part No Description Price (each) Stock
265598 EXTERNAL LH PILLAR TRUSS $62.32 To Order
Photo Part No Description Price (each) Stock
265560 FRONT FIREWALL $1,617.28 To Order
272427 FRONT FIREWALL $1,617.28 To Order
Photo Part No Description Price (each) Stock
265549 WINDSCREEN VALENCE PANEL $2,238.08 To Order
276976 WINDSCREEN VALENCE PANEL $3,757.96 To Order
Photo Part No Description Price (each) Stock
266042 RH SEMI-FLOOR $457.17 To Order
Photo Part No Description Price (each) Stock
266043 LH SEMI-FLOOR $457.17 To Order
Photo Part No Description Price (each) Stock
257928 INNER FRONT BRACKET, RH SEAT $35.04 To Order
Photo Part No Description Price (each) Stock
257930 INNER FRONT BRACKET, LH SEAT $66.22 To Order
Photo Part No Description Price (each) Stock
259981 INNER REAR BRACKET, RH SEAT $24.96 To Order
Photo Part No Description Price (each) Stock
259980 INNER REAR BRACKET, LH SEAT $92.19 To Order
Photo Part No Description Price (each) Stock
265601 OUTER RH FRONT SEAT BRACKET $70.11 To Order
Photo Part No Description Price (each) Stock
265602 OUTER LH FRONT SEAT BRACKET $70.11 To Order
Photo Part No Description Price (each) Stock
271343 OUTER RH REAR SEAT BRACKET $402.56 To Order
Photo Part No Description Price (each) Stock
271342 OUTER LH REAR SEAT BRACKET $402.56 To Order
Photo Part No Description Price (each) Stock
270166 RH BRACE $129.85 To Order
Photo Part No Description Price (each) Stock
270165 LH BRACE $54.52 To Order

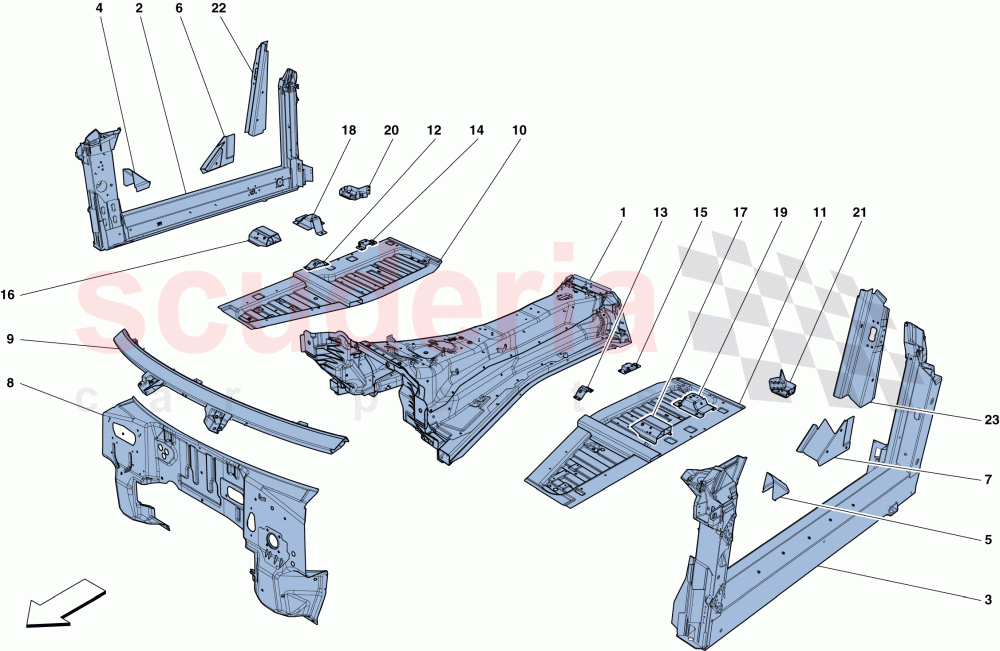

STRUCTURES AND ELEMENTS, CENTRE OF VEHICLE of Ferrari Ferrari FF Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 283285
COMPL. TUNNEL
; Not for GD; Applicable from Ass. No. 101570 		$14,508.95 1
TO
1 279341
COMPL. TUNNEL
; Applicable for GD; Applicable up to Ass. No. 101569 		$19,690.00 1
TO
1 283384
COMPL. TUNNEL
; Applicable for GD; Applicable from Ass. No. 101570 		$19,074.45 1
TO
1 265428
COMPL. TUNNEL
; Not for GD; Applicable up to Ass. No. 100296 		$21,997.45 1
TO
1 277306
COMPL. TUNNEL
; Not for GD; Applicable from Ass. No. 100297 up to Ass. No. 101569 		$19,690.00 1
TO
2 323632
RH SILL BEAM PILLAR SECTION
; Applicable for GD; Applicable from Ass. No. 131046 		- 1
PE
 Enquire
2 265385
RH SILL BEAM PILLAR SECTION
; Not for GD; Applicable up to Ass. No. 131045 		$10,165.75 1
TO
2 322434
RH SILL BEAM PILLAR SECTION
; Not for GD; Applicable from Ass. No. 131046 		- 1
PE
 Enquire
2 281402
RH SILL BEAM PILLAR SECTION
; Applicable for GD; Applicable up to Ass. No. 131045 		$10,165.75 1
TO
3 322423
LH SILL BEAM PILLAR SECTION
; Applicable from Ass. No. 131046 		- 1
PE
 Enquire
3 265384
LH SILL BEAM PILLAR SECTION
; Applicable up to Ass. No. 131045 		$10,165.75 1
TO
4 265590
INTERNAL RH FRONT TRUSS 		$13.82 1
TO
5 265591
INTERNAL LH FRONT TRUSS 		$13.82 1
TO
6 265597
EXTERNAL RH PILLAR TRUSS 		$129.85 1
TO
7 265598
EXTERNAL LH PILLAR TRUSS 		$62.32 1
TO
8 265560
FRONT FIREWALL
Not for GD 		$1,617.28 1
TO
8 272427
FRONT FIREWALL
Applicable for GD 		$1,617.28 1
TO
9 265549
WINDSCREEN VALENCE PANEL
Not for GD 		$2,238.08 1
TO
9 276976
WINDSCREEN VALENCE PANEL
Applicable for GD 		$3,757.96 1
TO
10 266042
RH SEMI-FLOOR 		$457.17 1
TO
11 266043
LH SEMI-FLOOR 		$457.17 1
TO
12 257928
INNER FRONT BRACKET, RH SEAT 		$35.04 1
TO
13 257930
INNER FRONT BRACKET, LH SEAT 		$66.22 1
TO
14 259981
INNER REAR BRACKET, RH SEAT 		$24.96 1
TO
15 259980
INNER REAR BRACKET, LH SEAT 		$92.19 1
TO
16 265601
OUTER RH FRONT SEAT BRACKET 		$70.11 1
TO
17 265602
OUTER LH FRONT SEAT BRACKET 		$70.11 1
TO
18 271343
OUTER RH REAR SEAT BRACKET 		$402.56 1
TO
19 271342
OUTER LH REAR SEAT BRACKET 		$402.56 1
TO
20 270166
RH BRACE 		$129.85 1
TO
21 270165
LH BRACE 		$54.52 1
TO
