Timing - Tappets And Shafts

Ferrari F50

Find Your Part

Ferrari F50 - TIMING - TAPPETS AND SHAFTS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
We recommend viewing this page in landscape orientation for the best experience
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TD
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
159349 PAD BOWL $57.59 To Order
Photo Part No Description Price (each) Stock
165207 VALVES ADJUSTMENT PAD $72.56 To Order
Photo Part No Description Price (each) Stock
157986 COTTER FOR VALVE SPRING CUP $3.13 To Order
Photo Part No Description Price (each) Stock
157989 UPPER CUP $9.66 To Order
Photo Part No Description Price (each) Stock
180192 OUTER SPRING FOR VALVE RETURN $9.76 To Order
Photo Part No Description Price (each) Stock
180208 INNER SPRING FOR VALVE RETURN $6.56 To Order
Photo Part No Description Price (each) Stock
221473 OIL SEAL $2.66 To Order
Photo Part No Description Price (each) Stock
172466 LOWER CUP $43.29 To Order
Photo Part No Description Price (each) Stock
159284 INTAKE VALVE GUIDE $174.69 To Order
Photo Part No Description Price (each) Stock
159282 EXHAUST VALVE GUIDE $33.55 To Order
Photo Part No Description Price (each) Stock
162669 INTAKE VALVE $179.04 To Order
Photo Part No Description Price (each) Stock
159347 EXHAUST VALVE $70.68 To Order
Photo Part No Description Price (each) Stock
6148234 INTAKE VALVE SEAT $19.02 To Order
Photo Part No Description Price (each) Stock
6140702 EXHAUST VALVE SEAT $125.05 To Order
Photo Part No Description Price (each) Stock
171400 COMPLETE R.H. INDUCTION DISTRIBUTION CAM SHAFT $1,852.49 To Order
Photo Part No Description Price (each) Stock
171399 COMPLETE L.H. INDUCTION DISTRIBUTION CAM SHAFT $1,792.08 To Order
Photo Part No Description Price (each) Stock
149912 COMPLETE R.H. AND L.H. EXHAUST CAM SHAFT $4,631.17 To Order
Photo Part No Description Price (each) Stock
9162535 THREADED PLUG Enquire To Order
Photo Part No Description Price (each) Stock
171395 COUPLING ON THE CAM SHAFT $133.33 To Order
Photo Part No Description Price (each) Stock
149859 DOWEL BOLT $2.44 To Order

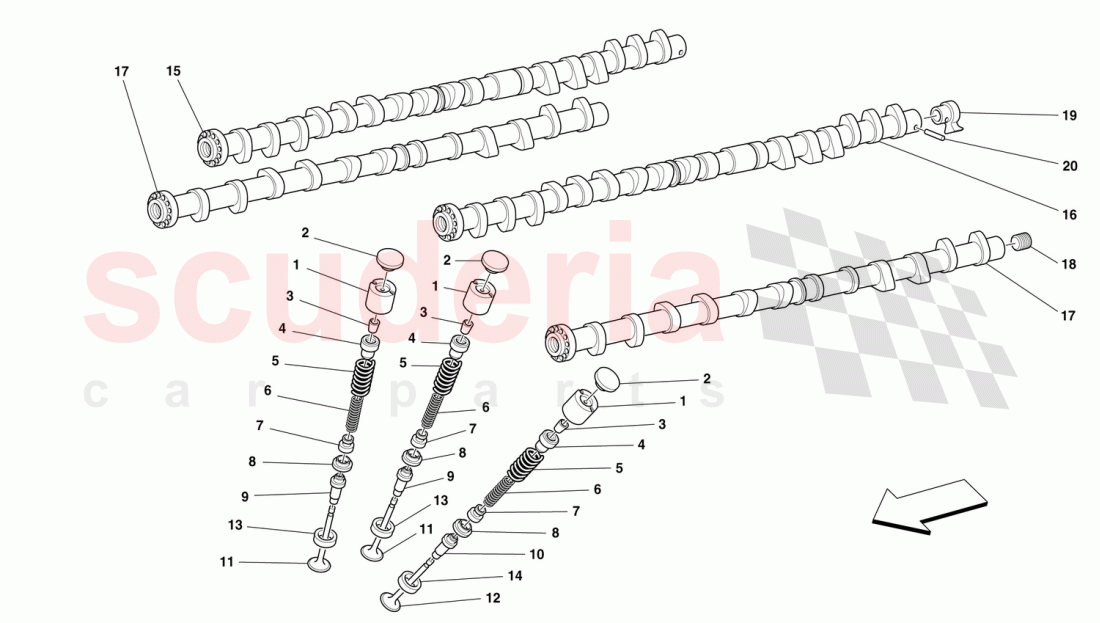

TIMING - TAPPETS AND SHAFTS of Ferrari Ferrari F50 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 171395
COUPLING ON THE CAM SHAFT
Valid after stock exhaustion of 162645 		$133.33 2
IN
- 171399
COMPLETE L.H. INDUCTION DISTRIBUTION CAM SHAFT
DISTRIBUTION CAM SHAFT / Valid after stock exhaustion of 152688 		$1,792.08 1
IN
- 171400
COMPLETE R.H. INDUCTION DISTRIBUTION CAM SHAFT
DISTRIBUTION CAM SHAFT / Valid after stock exhaustion of 152473 		$1,852.49 1
IN
- 159285
INTAKE VALVE GUIDE
Oversized 		$35.27 36
IN
- 159283
EXHAUST VALVE GUIDE
Oversized 		$36.44 24
IN
- 165230
VALVES ADJUSTMENT PAD
Th. mm. 3,15 		$60.94 60
IN
- 163682
VALVES ADJUSTMENT PAD
Th. mm. 3,00 		$72.56 60
IN
- 165228
VALVES ADJUSTMENT PAD
Th. mm. 3,05 		$72.56 60
IN
- 165229
VALVES ADJUSTMENT PAD
Th. mm. 3,10 		$72.56 60
IN
- 165225
VALVES ADJUSTMENT PAD
Th. mm. 2,85 		$60.94 60
IN
- 165226
VALVES ADJUSTMENT PAD
Th. mm. 2,90 		$72.56 60
IN
- 165227
VALVES ADJUSTMENT PAD
Th. mm. 2,95 		$72.56 60
IN
- 165223
VALVES ADJUSTMENT PAD
Th. mm. 2,70 		$148.30 (9.9% off) 60
IN
- 165224
VALVES ADJUSTMENT PAD
Th. mm. 2,75 		$62.15 60
IN
- 159379
VALVES ADJUSTMENT PAD
Th. mm. 2,80 		$72.56 60
IN
- 165221
VALVES ADJUSTMENT PAD
Th. mm. 2,55 		$50.90 60
IN
- 159378
VALVES ADJUSTMENT PAD
Th. mm. 2,60 		$50.90 60
IN
- 165222
VALVES ADJUSTMENT PAD
Th. mm. 2,65 		$50.90 60
IN
- 165218
VALVES ADJUSTMENT PAD
Th. mm. 2,35 		$50.90 60
IN
- 163681
VALVES ADJUSTMENT PAD
Th. mm. 2,40 		$50.90 60
IN
- 165219
VALVES ADJUSTMENT PAD
Th. mm. 2,45 		$50.90 60
IN
- 165220
VALVES ADJUSTMENT PAD
Th. mm. 2,50 		$50.90 (8.4% off) 60
IN
- 159377
VALVES ADJUSTMENT PAD
Th. mm. 2,20 		$50.90 60
IN
- 165216
VALVES ADJUSTMENT PAD
Th. mm. 2,25 		$50.90 60
IN
- 165217
VALVES ADJUSTMENT PAD
Th. mm. 2,30 		$50.90 60
IN
- 165213
VALVES ADJUSTMENT PAD
Th. mm. 2,05 		$42.75 60
IN
- 165214
VALVES ADJUSTMENT PAD
Th. mm. 2,10 		$42.75 (20.3% off) 60
IN
- 165215
VALVES ADJUSTMENT PAD
Th. mm. 2,15 		$50.90 60
IN
- 163680
VALVES ADJUSTMENT PAD
Th. mm. 1,90 		$50.90 (5.2% off) 60
IN
- 165212
VALVES ADJUSTMENT PAD
Th. mm. 1,95 		$42.75 (20.3% off) 60
IN
- 159358
VALVES ADJUSTMENT PAD
Th. mm. 2,00 		$124.56 (24.4% off) 60
IN
- 165210
VALVES ADJUSTMENT PAD
Th. mm. 1,75 		$72.56 60
IN
- 163679
VALVES ADJUSTMENT PAD
Th. mm. 1,80 		$72.56 60
IN
- 165211
VALVES ADJUSTMENT PAD
Th. mm. 1,85 		$72.56 60
IN
- 165208
VALVES ADJUSTMENT PAD
Th. mm. 1,55 		$72.56 60
IN
- 163677
VALVES ADJUSTMENT PAD
Th. mm. 1,60 		$72.56 60
IN
- 165209
VALVES ADJUSTMENT PAD
Th. mm. 1,65 		$72.56 60
IN
- 163678
VALVES ADJUSTMENT PAD
Th. mm. 1,70 		$72.56 60
IN
1 159349
PAD BOWL 		$57.59 60
IN
2 165207
VALVES ADJUSTMENT PAD
Th. mm. 1,50 		$72.56 60
IN
3 157986
COTTER FOR VALVE SPRING CUP 		$3.13 120
IN
4 157989
UPPER CUP 		$9.66 60
IN
5 180192
OUTER SPRING FOR VALVE RETURN 		$9.76 60
IN
6 180208
INNER SPRING FOR VALVE RETURN 		$6.56 (15.7% off) 60
IN
7 221473
OIL SEAL 		$2.66 60
IN
8 172466
LOWER CUP 		$43.29 60
IN
9 159284
INTAKE VALVE GUIDE 		$174.69 36
IN
10 159282
EXHAUST VALVE GUIDE 		$33.55 24
IN
11 162669
INTAKE VALVE 		$179.04 36
IN
12 159347
EXHAUST VALVE 		$70.68 24
IN
13 6148234
INTAKE VALVE SEAT 		$19.02 36
IN
14 6140702
EXHAUST VALVE SEAT 		$125.05 24
IN
15 171400
COMPLETE R.H. INDUCTION DISTRIBUTION CAM SHAFT
DISTRIBUTION CAM SHAFT / Valid till stock exhaustion 		$1,852.49 1
IN
16 171399
COMPLETE L.H. INDUCTION DISTRIBUTION CAM SHAFT
DISTRIBUTION CAM SHAFT / Valid till stock exhaustion 		$1,792.08 1
IN
17 149912
COMPLETE R.H. AND L.H. EXHAUST CAM SHAFT
EXHAUST CAM SHAFT 		$4,631.17 2
IN
18 9162535
THREADED PLUG 		- 2
PE
 Enquire
19 171395
COUPLING ON THE CAM SHAFT 		$133.33 2
IN
20 149859
DOWEL BOLT 		$2.44 2
IN
