Name: FRONT DOOR SUBSTRUCTURE
Rating: 5.0 (1 reviews)

Diagram
INFO

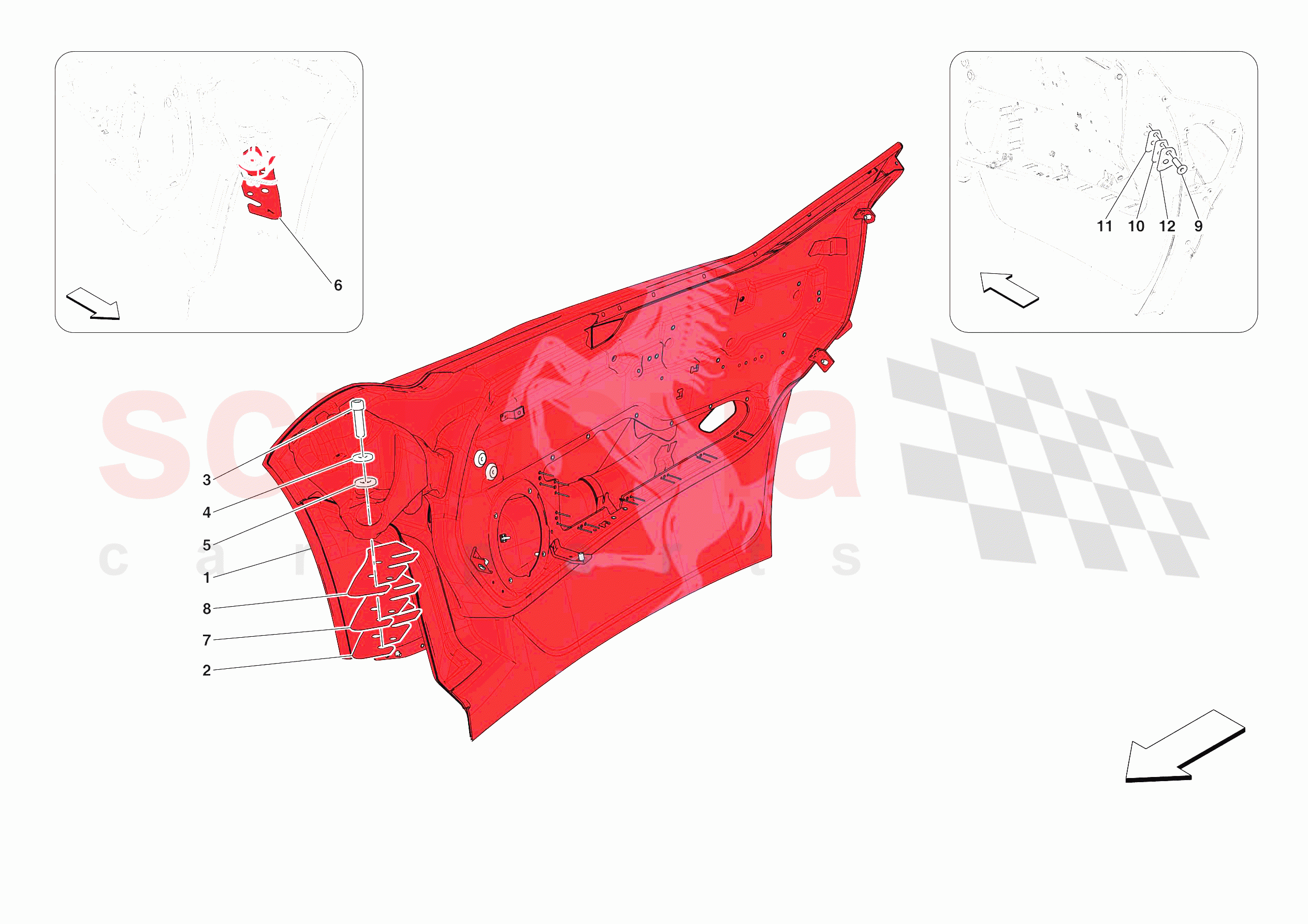

FRONT DOOR SUBSTRUCTURE of Ferrari Ferrari Daytona SP3 Europe

Ferrari Daytona SP3 Europe - FRONT DOOR SUBSTRUCTURE

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	985903783	COMPL. SKINNED RH DOOR	$127,352.11	To Order
	985802759	COMPL. SKINNED RH DOOR	$127,352.11	To Order
	985902417	COMPL. SKINNED LH DOOR	$127,352.11	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	87993600	PLATE	$41.53	To Order
	87993500	PLATE	$41.53	To Order

Photo	Part No	Description	Price (each)	Stock
	332016	SCREW	$3.20	To Order

Photo	Part No	Description	Price (each)	Stock
	333927	WASHER	$2.25	To Order

Photo	Part No	Description	Price (each)	Stock
	333928	WASHER	$2.52	To Order

Photo	Part No	Description	Price (each)	Stock
	000865321	CALIBRATED DOOR DROP CORRECTION SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	000915270	CALIBRATED SHIM FOR OUTER HINGE	Enquire	To Order
	55010189	CALIBRATED SHIM FOR OUTER HINGE	$830.36	To Order

Photo	Part No	Description	Price (each)	Stock
	000915269	CALIBRATED SHIM FOR INNER HINGE	Enquire	To Order
	000915270	CALIBRATED SHIM FOR OUTER HINGE	Enquire	To Order
	55010189	CALIBRATED SHIM FOR OUTER HINGE	$830.36	To Order

Photo	Part No	Description	Price (each)	Stock
	88451400	SCREW	$7.70	To Order

Photo	Part No	Description	Price (each)	Stock
	848221	DOOR TOOTH SHIM PLATE	$66.22	To Order

Photo	Part No	Description	Price (each)	Stock
	848185	DOOR TOOTH SHIM PLATE	$66.22	To Order

Photo	Part No	Description	Price (each)	Stock
	000846660	RH DOOR REAR TOOTH	Enquire	To Order
	000848171	LH DOOR REAR TOOTH	Enquire	To Order

Diagram Tap to enlarge

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key	Add to Cart
	0001	985903783	COMPL. SKINNED RH DOOR	985903783 COMPL. SKINNED RH DOOR Request ASM authorisation	$127,352.11	1	TO
	0001	985802759	COMPL. SKINNED RH DOOR	985802759 COMPL. SKINNED RH DOOR Scuderia Ferrari shields on fenders - Request ASM authorisation	$127,352.11	1	TO
	0001	985902417	COMPL. SKINNED LH DOOR	985902417 COMPL. SKINNED LH DOOR Request ASM authorisation	$127,352.11	1	TO
	0001	985802751	COMPL. SKINNED LH DOOR	985802751 COMPL. SKINNED LH DOOR Scuderia Ferrari shields on fenders - Request ASM authorisation	-	1	PE	Enquire
	0002	87993600	PLATE	87993600 PLATE Th. 0.50 mm	$41.53	2	TO
	0002	87993500	PLATE	87993500 PLATE Th. 1 mm	$41.53	6	TO
	0003	332016	SCREW	332016 SCREW M12 X 45	$3.20	8	TO
	0004	333927	WASHER	333927 WASHER	$2.25	8	TO
	0005	333928	WASHER	333928 WASHER	$2.52	8	TO
	0006	000865321	CALIBRATED DOOR DROP CORRECTION SHIM	000865321 CALIBRATED DOOR DROP CORRECTION SHIM	-	1	PE	Enquire
	000915270		CALIBRATED SHIM FOR OUTER HINGE	-
0007 CALIBRATED SHIM FOR OUTER HINGE - 2 PE Enquire 0008 CALIBRATED SHIM FOR OUTER HINGE - 2 PE Enquire
	55010189		CALIBRATED SHIM FOR OUTER HINGE	from $830.36
0007 CALIBRATED SHIM FOR OUTER HINGE $830.36 2 TO 0008 CALIBRATED SHIM FOR OUTER HINGE $830.36 2 TO
	0008	000915269	CALIBRATED SHIM FOR INNER HINGE	000915269 CALIBRATED SHIM FOR INNER HINGE No longer supplied - Replaced by 915270	-	2	PE	Enquire
	0009	88451400	SCREW	88451400 SCREW	$7.70	4	TO
	0010	848221	DOOR TOOTH SHIM PLATE	848221 DOOR TOOTH SHIM PLATE Th. 0.5mm	$66.22	2	TO
	0011	848185	DOOR TOOTH SHIM PLATE	848185 DOOR TOOTH SHIM PLATE Th. 1 mm	$66.22	6	TO
	0012	000846660	RH DOOR REAR TOOTH	000846660 RH DOOR REAR TOOTH	-	1	PE	Enquire
	0012	000848171	LH DOOR REAR TOOTH	000848171 LH DOOR REAR TOOTH	-	1	PE	Enquire

Front Door Substructure

Ferrari Daytona SP3 Europe

Ferrari Daytona SP3 Europe - FRONT DOOR SUBSTRUCTURE
