Name: AC UNIT: DISTRIBUTION
Rating: 5.0 (1 reviews)

Diagram
INFO

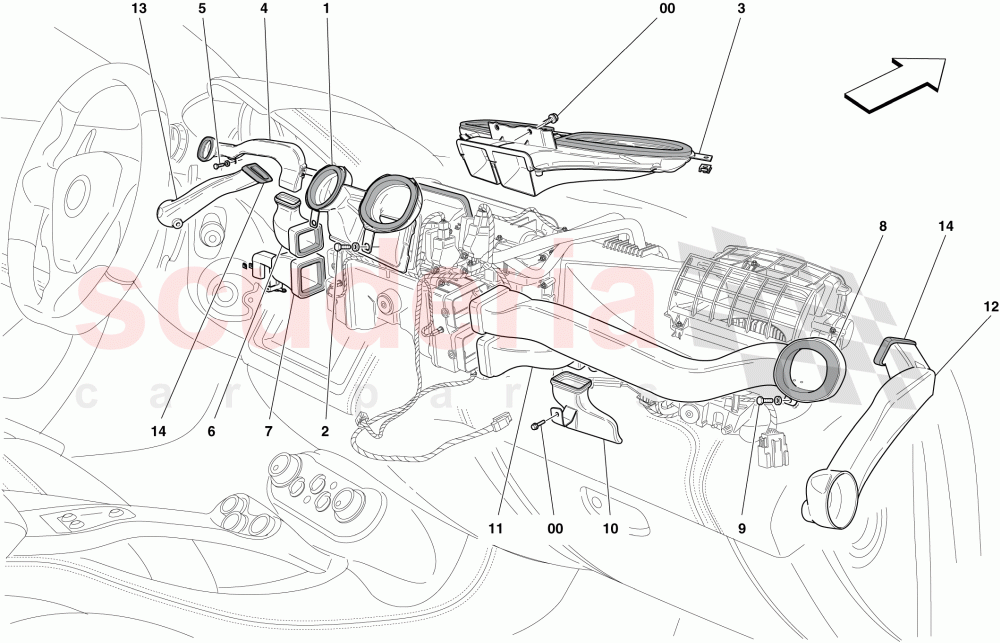

AC UNIT: DISTRIBUTION of Ferrari Ferrari California (2012-2014)

Ferrari California (2012-2014) - AC UNIT: DISTRIBUTION

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	80810900	CENTRAL OPENING AIR DUCTING	$90.85	To Order

Photo	Part No	Description	Price (each)	Stock
	86574700	SCREW	$0.62	To Order

Photo	Part No	Description	Price (each)	Stock
	80809500	AIR DUCT	$90.85	To Order

Photo	Part No	Description	Price (each)	Stock
	80895400	DRIVER SIDE UPPER AIR DUCTING	$73.97	To Order
	80811600	DRIVER SIDE UPPER AIR DUCTING	$72.68	To Order

Photo	Part No	Description	Price (each)	Stock
	86574700	SCREW	$0.62	To Order

Photo	Part No	Description	Price (each)	Stock
	81268200	LOWER DASHBOARD AIR DUCTING	$40.21	To Order
	81037800	LOWER DASHBOARD AIR DUCTING	$36.33	To Order

Photo	Part No	Description	Price (each)	Stock
	80896100	DRIVER SIDE LOWER AIR DUCTING	$89.55	To Order
	80811400	DRIVER SIDE LOWER AIR DUCTING	$76.56	To Order

Photo	Part No	Description	Price (each)	Stock
	80895300	PASSENGER SIDE AIR DUCTING	$97.33	To Order
	80811200	PASSENGER SIDE AIR DUCTING	$96.04	To Order

Photo	Part No	Description	Price (each)	Stock
	86574700	SCREW	$0.62	To Order

Photo	Part No	Description	Price (each)	Stock
	80895900	PASSENGER SIDE LOWER AIR DUCTING	$54.50	To Order
	80812100	PASSENGER SIDE LOWER FOOTWELL AIR DUCT	$49.30	To Order

Photo	Part No	Description	Price (each)	Stock
	80896000	PASSENGER SIDE UPPER AIR DUCTING	$48.01	To Order
	80811900	PASSENGER SIDE UPPER AIR DUCTING	$45.42	To Order

Photo	Part No	Description	Price (each)	Stock
	80518500	R.H. DOOR-DASHBOARD AIR DUCTING	$29.06	To Order

Photo	Part No	Description	Price (each)	Stock
	80518600	L.H. DOOR-DASHBOARD AIR DUCTING	$29.06	To Order

Photo	Part No	Description	Price (each)	Stock
	82238300	INSULATION	$27.24	To Order

Diagram Tap to enlarge

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
	1	80810900	CENTRAL OPENING AIR DUCTING	80810900 CENTRAL OPENING AIR DUCTING	$90.85	1	TO
	86574700		SCREW	from $0.62
2 SCREW $0.62 2 TO 5 SCREW $0.62 2 TO 9 SCREW $0.62 1 TO
	3	80809500	AIR DUCT	80809500 AIR DUCT	$90.85	1	TO
	4	80895400	DRIVER SIDE UPPER AIR DUCTING	80895400 DRIVER SIDE UPPER AIR DUCTING Applicable for GD	$73.97	1	TO
	4	80811600	DRIVER SIDE UPPER AIR DUCTING	80811600 DRIVER SIDE UPPER AIR DUCTING Not for GD	$72.68	1	TO
	6	81268200	LOWER DASHBOARD AIR DUCTING	81268200 LOWER DASHBOARD AIR DUCTING Applicable for GD	$40.21	1	TO
	6	81037800	LOWER DASHBOARD AIR DUCTING	81037800 LOWER DASHBOARD AIR DUCTING Not for GD	$36.33	1	TO
	7	80896100	DRIVER SIDE LOWER AIR DUCTING	80896100 DRIVER SIDE LOWER AIR DUCTING Applicable for GD	$89.55	1	TO
	7	80811400	DRIVER SIDE LOWER AIR DUCTING	80811400 DRIVER SIDE LOWER AIR DUCTING Not for GD	$76.56	1	TO
	8	80895300	PASSENGER SIDE AIR DUCTING	80895300 PASSENGER SIDE AIR DUCTING Applicable for GD	$97.33	1	TO
	8	80811200	PASSENGER SIDE AIR DUCTING	80811200 PASSENGER SIDE AIR DUCTING Not for GD	$96.04	1	TO
	10	80895900	PASSENGER SIDE LOWER AIR DUCTING	80895900 PASSENGER SIDE LOWER AIR DUCTING Applicable for GD	$54.50	1	TO
	10	80812100	PASSENGER SIDE LOWER FOOTWELL AIR DUCT	80812100 PASSENGER SIDE LOWER FOOTWELL AIR DUCT Not for GD	$49.30	1	TO
	11	80896000	PASSENGER SIDE UPPER AIR DUCTING	80896000 PASSENGER SIDE UPPER AIR DUCTING Applicable for GD	$48.01	1	TO
	11	80811900	PASSENGER SIDE UPPER AIR DUCTING	80811900 PASSENGER SIDE UPPER AIR DUCTING Not for GD	$45.42	1	TO
	12	80518500	R.H. DOOR-DASHBOARD AIR DUCTING	80518500 R.H. DOOR-DASHBOARD AIR DUCTING	$29.06	1	TO
	13	80518600	L.H. DOOR-DASHBOARD AIR DUCTING	80518600 L.H. DOOR-DASHBOARD AIR DUCTING	$29.06	1	TO
	14	82238300	INSULATION	82238300 INSULATION	$27.24	2	TO

Ac Unit: Distribution

Ferrari California (2012-2014)

Ferrari California (2012-2014) - AC UNIT: DISTRIBUTION
