Name: TIMING SYSTEM - CAMSHAFTS AND VALVES
Rating: 5.0 (1 reviews)

Diagram
INFO

TIMING SYSTEM - CAMSHAFTS AND VALVES of Ferrari Ferrari California T

Ferrari California T - TIMING SYSTEM - CAMSHAFTS AND VALVES

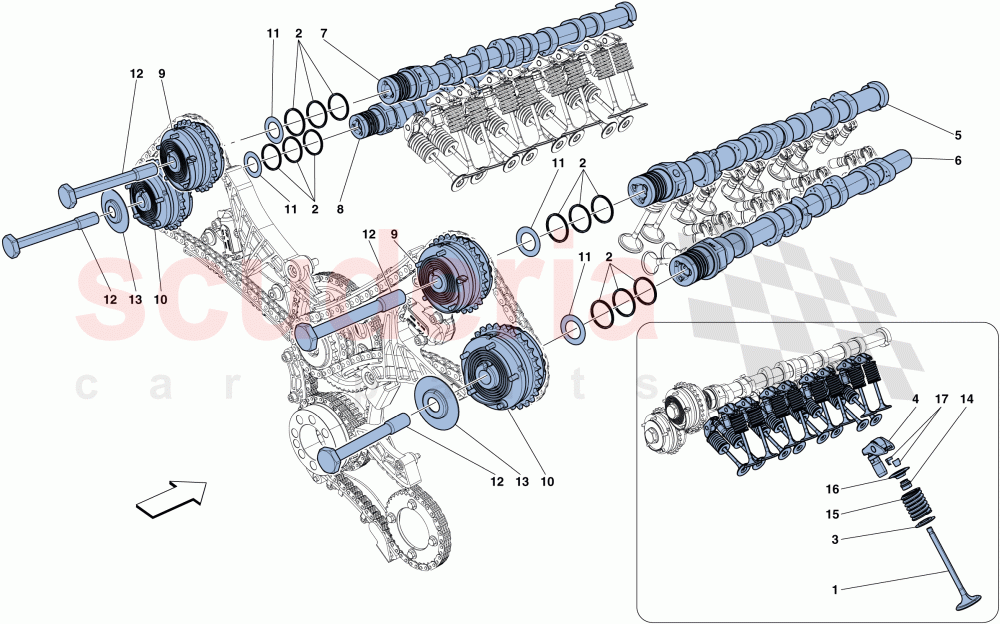

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	314857	EXHAUST VALVE	$74.00	To Order
	314784	INTAKE VALVE	$19.46	To Order
	301303	EXHAUST VALVE	$333.41	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	246965	O-RING	$11.53	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	287553	LOWER INTAKE VALVE SPRING CAP	$2.76	To Order
	287551	LOWER EXHAUST VALVE SPRING CAP	$2.69	To Order

Photo	Part No	Description	Price (each)	Stock
	927517	COMPL. FINGER-TAPPET	$75.30	To Order

Photo	Part No	Description	Price (each)	Stock
	330638	RH INTAKE CAMSHAFT	$319.52	To Order

Photo	Part No	Description	Price (each)	Stock
	330639	LH INTAKE CAMSHAFT	$319.52	To Order

Photo	Part No	Description	Price (each)	Stock
	279099	VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT	$558.40	To Order

Photo	Part No	Description	Price (each)	Stock
	295300	VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT	$545.42	To Order

Photo	Part No	Description	Price (each)	Stock
	240559	DIAMOND COATED WASHER	$8.40	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	287708	SCREW M14 X 1.5	$12.52	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	296310	SPACER	$22.06	To Order

Photo	Part No	Description	Price (each)	Stock
	221473	OIL SEAL	$1.83	To Order

Photo	Part No	Description	Price (each)	Stock
	331715	VALVE RETURN SPRING	$19.46	To Order

Photo	Part No	Description	Price (each)	Stock
	287554	UPPER VALVE SPRING CAP	$4.33	To Order

Photo	Part No	Description	Price (each)	Stock
	179763	VALVE SPRING SEMI-CONE	$0.87	To Order

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
1	314857	EXHAUST VALVE	314857 EXHAUST VALVE Applicable from engine No. 311243	$74.00	16	TO
1	314784	INTAKE VALVE	314784 INTAKE VALVE Applicable from engine No. 311243	$19.46	16	TO
1	301303	EXHAUST VALVE	301303 EXHAUST VALVE Applicable up to engine No. 311242	$333.41	16	TO
1	314856	INTAKE VALVE	314856 INTAKE VALVE Applicable up to engine No. 311242	$18.16	16	TO
2	246965	O-RING IN STOCK	246965 O-RING IN STOCK	$11.53	12	IN
3	287553	LOWER INTAKE VALVE SPRING CAP	287553 LOWER INTAKE VALVE SPRING CAP	$2.76	16	TO
3	287551	LOWER EXHAUST VALVE SPRING CAP	287551 LOWER EXHAUST VALVE SPRING CAP	$2.69	16	TO
4	927517	COMPL. FINGER-TAPPET	927517 COMPL. FINGER-TAPPET	$75.30	32	TO
5	330638	RH INTAKE CAMSHAFT	330638 RH INTAKE CAMSHAFT Applicable from engine No. 338905	$319.52	1	TO
7	330639	LH INTAKE CAMSHAFT	330639 LH INTAKE CAMSHAFT Applicable from engine No. 338905	$319.52	1	TO
9	279099	VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT	279099 VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT	$558.40	2	TO
10	295300	VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT	295300 VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT	$545.42	2	TO
11	240559	DIAMOND COATED WASHER IN STOCK	240559 DIAMOND COATED WASHER IN STOCK	$8.40	4	IN
12	287708	SCREW M14 X 1.5 IN STOCK	287708 SCREW M14 X 1.5 IN STOCK	$12.52	4	IN
13	296310	SPACER	296310 SPACER	$22.06	2	TO
14	221473	OIL SEAL	221473 OIL SEAL	$1.83 MSRP: ~~2.60~~ (29.6% off)	32	TO
15	331715	VALVE RETURN SPRING	331715 VALVE RETURN SPRING	$19.46	32	TO
16	287554	UPPER VALVE SPRING CAP	287554 UPPER VALVE SPRING CAP	$4.33	32	TO
17	179763	VALVE SPRING SEMI-CONE	179763 VALVE SPRING SEMI-CONE	$0.87 MSRP: ~~0.90~~ (3.3% off)	64	TO

Timing System - Camshafts And Valves

Ferrari California T

Ferrari California T - TIMING SYSTEM - CAMSHAFTS AND VALVES
