Ferrari California T - MAIN WIRING HARNESSES

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
302874 FRONT VIDEO CABLE $402.56 To Order
Photo Part No Description Price (each) Stock
278419 GROUND CABLE FROM SENSOR TO FALSE POLE $40.25 To Order
Photo Part No Description Price (each) Stock
303627 CABLE FROM PARKING SYSTEM ECU TO NIT $402.56 To Order
Photo Part No Description Price (each) Stock
303625 REAR VIDEO CABLE $519.45 To Order
302880 REAR VIDEO CABLE $467.49 To Order
Photo Part No Description Price (each) Stock
303987 EXTENSION AC WIRING HARNESS $53.23 To Order
303987 EXTENSION AC WIRING HARNESS $53.23 To Order
Photo Part No Description Price (each) Stock
289589 DCT WIRING HARNESS $766.18 To Order
Photo Part No Description Price (each) Stock
311975 FRONT CABLE $6,267.24 To Order
320187 FRONT CABLE $6,280.22 To Order
334624 FRONT CABLE $4,816.65 To Order
...and 9 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
306260 DASHBOARD CABLE $1,905.09 To Order
311978 DASHBOARD CABLE $1,776.52 To Order
308813 DASHBOARD CABLE $1,051.88 To Order
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
329187 REAR CABLE $5,178.97 To Order
329189 REAR CABLE $5,562.07 To Order
Photo Part No Description Price (each) Stock
312160 INJECTION WIRING HARNESS $2,647.91 To Order
314808 INJECTION WIRING HARNESS $2,233.70 To Order
314102 INJECTION WIRING HARNESS $2,845.32 To Order
Photo Part No Description Price (each) Stock
314939 LUGGAGE COMPARTMENT WIRING HARNESS $103.87 To Order
Photo Part No Description Price (each) Stock
308967 PASSENGER DOOR WIRING HARNESS Enquire To Order
318645 PASSENGER DOOR WIRING HARNESS $376.59 To Order
318647 PASSENGER DOOR WIRING HARNESS $506.46 To Order
...and 11 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
306847 FRONT PARKING SENSOR WIRING HARNESS $272.69 To Order
Photo Part No Description Price (each) Stock
294086 DOOR AIRBAG WIRING HARNESS $41.53 To Order
Photo Part No Description Price (each) Stock
294087 PASSENGER DOOR AIRBAG WIRING HARNESS $67.51 To Order
Photo Part No Description Price (each) Stock
314972 RH HINGE CABLE $1,181.75 To Order
314972 RH HINGE CABLE $1,181.75 To Order
312941 LUGGAGE COMPARTMENT $857.08 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
300120 Rear Parking Sensor With Harness $307.53 To Order
Photo Part No Description Price (each) Stock
303385 CLIP $0.26 IN STOCK
Photo Part No Description Price (each) Stock
308186 LH HINGE CABLE $259.71 To Order
Photo Part No Description Price (each) Stock
308552 TURBO PRESSURE SENSOR TUBE GROUND CABLE $136.84 To Order
Photo Part No Description Price (each) Stock
302141 GROUND BRAID $363.61 To Order
302140 GROUND BRAID $20.77 To Order
Photo Part No Description Price (each) Stock
314412 SERVICES CABLE $506.46 To Order
Photo Part No Description Price (each) Stock
302142 GROUND BRAID $45.43 To Order
Photo Part No Description Price (each) Stock
315822 EARTH BRAID RETAINING SPRING $33.75 To Order
Photo Part No Description Price (each) Stock
307126 ENGINE GROUND $64.91 To Order
Photo Part No Description Price (each) Stock
314694 ENGINE-CHASSIS GROUND CONNECTOR BRAID $246.72 To Order
315944 ENGINE-CHASSIS GROUND CONNECTOR BRAID $89.59 To Order
Photo Part No Description Price (each) Stock
303385 CLIP $0.26 IN STOCK
Photo Part No Description Price (each) Stock
231619 SCREW $0.30 IN STOCK
231619 SCREW $0.30 IN STOCK
Photo Part No Description Price (each) Stock
291225 P clip Bracket With Sheath $4.91 IN STOCK
10418601 BRACKET WITH SHEATH $0.95 To Order
Photo Part No Description Price (each) Stock
65708600 SPACER BUSHING $7.21 To Order
Photo Part No Description Price (each) Stock
315822 EARTH BRAID RETAINING SPRING $33.75 To Order

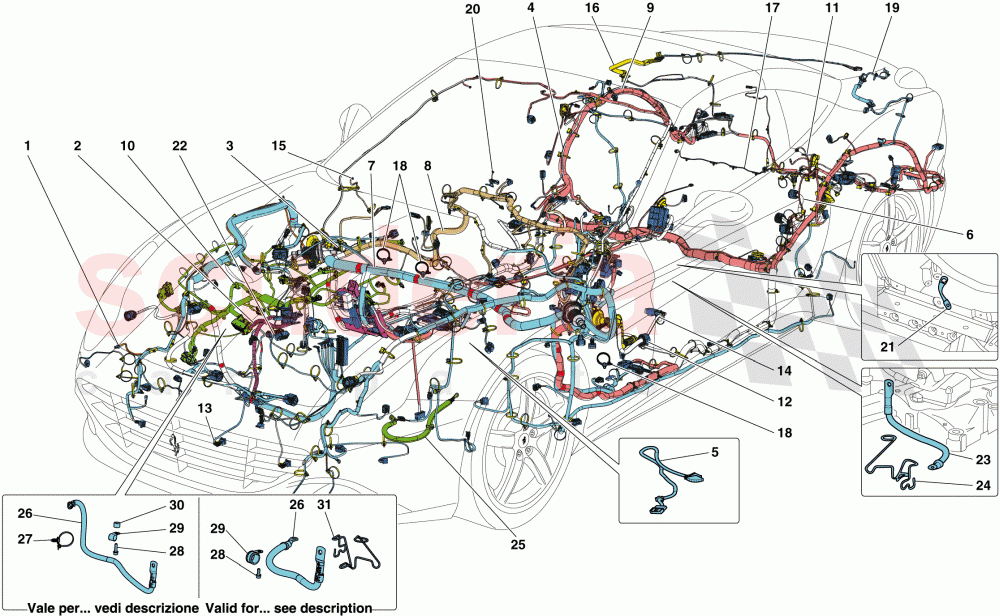

MAIN WIRING HARNESSES of Ferrari Ferrari California T Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 302874
FRONT VIDEO CABLE
Version with front and rear digital cameras 		$402.56 1
TO
2 278419
GROUND CABLE FROM SENSOR TO FALSE POLE 		$40.25 1
TO
3 303627
CABLE FROM PARKING SYSTEM ECU TO NIT
Version with front and rear digital cameras; Not for version with Apple Car Play 		$402.56 1
TO
4 303625
REAR VIDEO CABLE
Version with analogue rear camera; Not for version with Apple Car Play 		$519.45 1
TO
4 302880
REAR VIDEO CABLE
Version with front and rear digital cameras 		$467.49 1
TO

303987

EXTENSION AC WIRING HARNESS

from $53.23

6 289589
DCT WIRING HARNESS 		$766.18 1
TO
7 311975
FRONT CABLE
Full house; Hele; Applicable for GD; Applicable from Ass. No. 124166 up to Ass. No. 129878 		$6,267.24 1
TO
7 320187
FRONT CABLE
Full house; Hele; Applicable for tyre pressure monitoring system, Magneride suspension and Speciale handling pack; Applicable for GD; Applicable from Ass. No. 129879 		$6,280.22 1
TO
7 334624
FRONT CABLE
Hele; -Applicable for tyre pressure monitoring system; Not for USA, CDN, GD, USA LIGHT 		$4,816.65 1
TO
7 334626
FRONT CABLE
Hele; -Applicable for tyre pressure monitoring system; Applicable for GD 		$5,814.01 1
TO
7 311965
FRONT CABLE
Full house; Hele; Not for GD; Applicable from Ass. No. 122782 up to Ass. No. 129878 		$5,146.51 1
TO
7 320150
FRONT CABLE
Full house; Hele; Applicable for tyre pressure monitoring system, Magneride suspension and Speciale handling pack; Not for GD; Applicable from Ass. No. 129879 		$5,254.29 1
TO
7 311974
FRONT CABLE
Full house; Applicable for GD; Applicable from Ass. No. 124166 up to Ass. No. 129878 		$6,371.12 1
TO
7 320186
FRONT CABLE
Full house; Applicable for GD; Applicable from Ass. No. 129879 		$6,375.02 1
TO
7 311982
FRONT CABLE
Base; Applicable from Ass. No. 122782 up to Ass. No. 129878 		$3,958.25 1
TO
7 320148
FRONT CABLE
Base; Not for USA, GD; Applicable from Ass. No. 129879 		$3,756.96 1
TO
7 311964
FRONT CABLE
Full house; Not for GD; Applicable from Ass. No. 122782 up to Ass. No. 129878 		$5,694.53 1
TO
7 320149
FRONT CABLE
Full house; Applicable for tyre pressure monitoring system, Magneride suspension and Speciale handling pack; Not for GD; Applicable from Ass. No. 129879 		$5,510.13 1
TO
8 306260
DASHBOARD CABLE
Full house; High power HI-FI; Not for version with Apple Car Play; Applicable for GD 		$1,905.09 1
TO
8 311978
DASHBOARD CABLE
Full house; High power HI-FI; Version with Apple Car Play; Applicable for GD 		$1,776.52 1
TO
8 308813
DASHBOARD CABLE
Base; Not for version with Apple Car Play; Not for GD 		$1,051.88 1
TO
8 308814
DASHBOARD CABLE
Full house; Not for version with Apple Car Play; Not for GD 		$1,363.56 1
TO
8 311967
DASHBOARD CABLE
Full house; Version with Apple Car Play; Not for GD 		$1,220.70 1
TO
8 306259
DASHBOARD CABLE
Full house; Not for version with Apple Car Play; Applicable for GD 		$1,572.64 1
TO
8 311977
DASHBOARD CABLE
Full house; Version with Apple Car Play; Applicable for GD 		$1,499.92 1
TO
8 308815
DASHBOARD CABLE
Full house; High power HI-FI; Not for version with Apple Car Play; Not for GD 		$1,510.31 1
TO
8 311968
DASHBOARD CABLE
Full house; High power HI-FI; Version with Apple Car Play; Not for GD 		$1,446.67 1
TO
9 329187
REAR CABLE
Full house; Applicable for Eire; Applicable for UK; Applicable from Ass. No. 135750 		$5,178.97 1
TO
9 329189
REAR CABLE
Full house; High power HI-FI; Applicable for Eire; Applicable for UK; Applicable from Ass. No. 135750 		$5,562.07 1
TO
10 312160
INJECTION WIRING HARNESS
Not for USA, CDN, USA LIGHT; Applicable from engine No. 277567 		$2,647.91 1
TO
10 314808
INJECTION WIRING HARNESS
Applicable for USA, CDN, USA LIGHT; Applicable up to engine No. 277566 		$2,233.70 1
TO
10 314102
INJECTION WIRING HARNESS
Applicable for USA, CDN, USA LIGHT; Applicable from engine No. 277567 		$2,845.32 1
TO
11 314939
LUGGAGE COMPARTMENT WIRING HARNESS
Applicable from Ass. No. 123416 		$103.87 1
TO
12 308967
PASSENGER DOOR WIRING HARNESS
High power Hi-Fi version; Replaced by 311794 or 318627, see applicability notes; Not for GD; No longer supplied 		- 1
PE
 Enquire
12 318645
PASSENGER DOOR WIRING HARNESS
High power Hi-Fi version; Not for GD; Applicable from Ass. No. 127453 		$376.59 1
TO
12 318647
PASSENGER DOOR WIRING HARNESS
High power Hi-Fi version; Applicable for GD; Applicable from Ass. No. 127453 		$506.46 1
TO
12 311792
PASSENGER DOOR WIRING HARNESS
Applicable for GD; Applicable up to Ass. No. 127452 		$493.46 1
TO
12 318631
PASSENGER DOOR WIRING HARNESS
Applicable for GD; Applicable from Ass. No. 127453 		$506.46 1
TO
12 318644
DRIVER DOOR WIRING HARNESS
High power Hi-Fi version; Not for GD; Applicable from Ass. No. 127453 		$402.56 1
TO
12 318646
DRIVER DOOR WIRING HARNESS
High power Hi-Fi version; Applicable for GD; Applicable from Ass. No. 127453 		$571.39 1
TO
12 311791
DRIVER DOOR WIRING HARNESS
Applicable for GD; Applicable up to Ass. No. 127452 		$571.39 1
TO
12 318629
DRIVER DOOR WIRING HARNESS
Applicable for GD; Applicable from Ass. No. 127453 		$571.39 1
TO
12 311794
PASSENGER DOOR WIRING HARNESS
Not for GD; Applicable up to Ass. No. 127452 		$363.61 1
TO
12 318627
PASSENGER DOOR WIRING HARNESS
Not for GD; Applicable from Ass. No. 127453 		$376.59 1
TO
12 311793
DRIVER DOOR WIRING HARNESS
Not for GD; Applicable up to Ass. No. 127452 		$402.56 1
TO
12 318625
DRIVER DOOR WIRING HARNESS
Not for GD; Applicable from Ass. No. 127453 		$402.56 1
TO
12 308965
DRIVER DOOR WIRING HARNESS
High power Hi-Fi version; Replaced by 311793 or 318625, see applicability notes; Not for GD; No longer supplied 		- 1
PE
 Enquire
13 306847
FRONT PARKING SENSOR WIRING HARNESS 		$272.69 1
TO
14 294086
DOOR AIRBAG WIRING HARNESS 		$41.53 2
TO
15 294087
PASSENGER DOOR AIRBAG WIRING HARNESS 		$67.51 1
TO

314972

RH HINGE CABLE

from $1,181.75

16 312941
LUGGAGE COMPARTMENT
PASS. COMPARTMENT CAMERA CABLE; Version with front and rear digital cameras; Applicable for version with Apple Car Play; Not for USA, CDN 		$857.08 1
TO
16 314971
RH HINGE CABLE
Version with analogue rear camera; Not for version with Apple Car Play; Applicable for USA, CDN 		$1,446.67 1
TO
17 300120
Rear Parking Sensor With Harness 		$307.53 1
TO

303385

CLIP

from $0.26

19 308186
LH HINGE CABLE 		$259.71 1
TO
20 308552
TURBO PRESSURE SENSOR TUBE GROUND CABLE 		$136.84 1
TO
21 302141
GROUND BRAID
Not for USA, USA LIGHT 		$363.61 1
TO
21 302140
GROUND BRAID
Applicable for USA, USA LIGHT 		$20.77 1
TO
22 314412
SERVICES CABLE 		$506.46 1
TO
23 302142
GROUND BRAID 		$45.43 (29.2% off) 1
TO

315822

EARTH BRAID RETAINING SPRING

from $33.75

25 307126
ENGINE GROUND
CHASSIS GROUND CONNECTOR BRAID 		$64.91 1
TO
26 314694
ENGINE-CHASSIS GROUND CONNECTOR BRAID
Applicable up to Ass. No. 133397 		$246.72 1
TO
26 315944
ENGINE-CHASSIS GROUND CONNECTOR BRAID
Applicable from Ass. No. 133398 up to Ass. No. 137997 		$89.59 1
TO

231619

SCREW

from $0.30

29 291225
P clip Bracket With Sheath
Applicable from Ass. No. 133398 up to Ass. No. 137997
IN STOCK 		$4.91 1
IN
29 10418601
BRACKET WITH SHEATH
Applicable up to Ass. No. 133397 		$0.95 1
TO
30 65708600
SPACER BUSHING
Applicable up to Ass. No. 133397 		$7.21 (26.8% off) 1
TO

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout
