BRAKE SYSTEM of Ferrari Ferrari California T

Ferrari California T - BRAKE SYSTEM

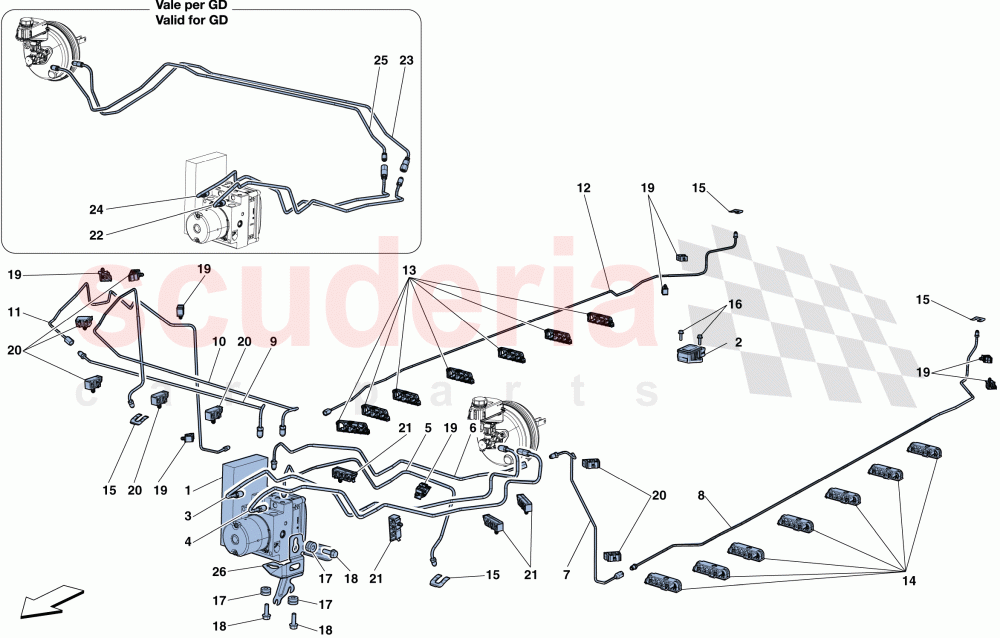

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	293819	HYDRAULIC UNIT	$4,545.70	To Order
	299665	HYDRAULIC UNIT	$7,206.67	To Order

Photo	Part No	Description	Price (each)	Stock
	317783	YAW SENSOR	$501.54	To Order
	307688	YAW SENSOR	$261.66	To Order

Photo	Part No	Description	Price (each)	Stock
	293743	BRAKE PIPE FROM "R" TO MC2	$64.88	To Order

Photo	Part No	Description	Price (each)	Stock
	293744	BRAKE PIPE FROM "F" TO MC1	$75.27	To Order

Photo	Part No	Description	Price (each)	Stock
	316363	BRAKE PIPE FROM UNIT TO LH REAR WHEEL JUNCTION	$49.30	To Order

Photo	Part No	Description	Price (each)	Stock
	315716	LH REAR WHEEL JUNCTION PIPE	$38.93	To Order

Photo	Part No	Description	Price (each)	Stock
	280614	LH UNDERBODY BRAKE PIPE	$194.69	To Order
	316365	LH UNDERBODY BRAKE PIPE	$75.27	To Order

Photo	Part No	Description	Price (each)	Stock
	305354	BRAKE PIPE FROM UNIT TO RH REAR WHEEL JUNCTION	$38.93	To Order

Photo	Part No	Description	Price (each)	Stock
	305353	PIPE FROM UNIT TO RH FRONT WHEEL	$61.00	To Order

Photo	Part No	Description	Price (each)	Stock
	299493	CLIP	$1.04	To Order

Photo	Part No	Description	Price (each)	Stock
	241118	CLIP	$1.30	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	116374	CLIP	$2.24	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	16286124	SCREW	$0.36	To Order

Photo	Part No	Description	Price (each)	Stock
	232869	BUSH	$38.93	To Order

Photo	Part No	Description	Price (each)	Stock
	13839224	SCREW	$2.47	To Order

Photo	Part No	Description	Price (each)	Stock
	301063	CLIP	$0.76	To Order

Photo	Part No	Description	Price (each)	Stock
	312163	CLIP	$0.95	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	234286	CLIP	$1.38	To Order

Photo	Part No	Description	Price (each)	Stock
	309453	BRAKE PIPE FROM "F" TO JUNCTION	$89.55	To Order

Photo	Part No	Description	Price (each)	Stock
	309454	BRAKE PIPE FROM JUNCTION TO MC1	$103.82	To Order

Photo	Part No	Description	Price (each)	Stock
	309455	BRAKE PIPE FROM "R" TO JUNCTION	$89.55	To Order

Photo	Part No	Description	Price (each)	Stock
	309456	BRAKE PIPE FROM JUNCTION TO MC2	$92.14	To Order

Photo	Part No	Description	Price (each)	Stock
	301000	ESP ECU MOUNT	$101.23	To Order

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
1	293819	HYDRAULIC UNIT	293819 HYDRAULIC UNIT	$4,545.70	1	TO
1	299665	HYDRAULIC UNIT	299665 HYDRAULIC UNIT Special Handling Pack	$7,206.67	1	TO
2	317783	YAW SENSOR	317783 YAW SENSOR Applicable after depletion of 206070	$501.54	1	TO
2	307688	YAW SENSOR	307688 YAW SENSOR Applicable until depletion	$261.66	1	TO
3	293743	BRAKE PIPE FROM "R" TO MC2	293743 BRAKE PIPE FROM "R" TO MC2 ; Not for GD	$64.88	1	TO
4	293744	BRAKE PIPE FROM "F" TO MC1	293744 BRAKE PIPE FROM "F" TO MC1 Not for GD	$75.27	1	TO
6	316363	BRAKE PIPE FROM UNIT TO LH REAR WHEEL JUNCTION	316363 BRAKE PIPE FROM UNIT TO LH REAR WHEEL JUNCTION Applicable for GD	$49.30	1	TO
7	315716	LH REAR WHEEL JUNCTION PIPE	315716 LH REAR WHEEL JUNCTION PIPE Applicable for GD	$38.93	1	TO
8	280614	LH UNDERBODY BRAKE PIPE	280614 LH UNDERBODY BRAKE PIPE Applicable until depletion	$194.69	1	TO
8	316365	LH UNDERBODY BRAKE PIPE	316365 LH UNDERBODY BRAKE PIPE Applicable after depletion of 280614	$75.27	1	TO
9	305354	BRAKE PIPE FROM UNIT TO RH REAR WHEEL JUNCTION	305354 BRAKE PIPE FROM UNIT TO RH REAR WHEEL JUNCTION	$38.93	1	TO
10	305353	PIPE FROM UNIT TO RH FRONT WHEEL	305353 PIPE FROM UNIT TO RH FRONT WHEEL	$61.00	1	TO
13	299493	CLIP	299493 CLIP	$1.04	7	TO
14	241118	CLIP IN STOCK	241118 CLIP 5 compartments IN STOCK	$1.30	7	IN
15	116374	CLIP IN STOCK	116374 CLIP IN STOCK	$2.24 MSRP: ~~3.50~~ (36% off)	4	IN
16	16286124	SCREW	16286124 SCREW	$0.36	2	TO
17	232869	BUSH	232869 BUSH	$38.93	3	TO
18	13839224	SCREW	13839224 SCREW	$2.47	3	TO
19	301063	CLIP	301063 CLIP 1 compartment	$0.76	8	TO
20	312163	CLIP IN STOCK	312163 CLIP 2 compartments IN STOCK	$0.95	7	IN
21	234286	CLIP	234286 CLIP 4 compartments	$1.38	4	TO
22	309453	BRAKE PIPE FROM "F" TO JUNCTION	309453 BRAKE PIPE FROM "F" TO JUNCTION Applicable for GD	$89.55	1	TO
23	309454	BRAKE PIPE FROM JUNCTION TO MC1	309454 BRAKE PIPE FROM JUNCTION TO MC1 Applicable for GD	$103.82	1	TO
24	309455	BRAKE PIPE FROM "R" TO JUNCTION	309455 BRAKE PIPE FROM "R" TO JUNCTION Applicable for GD	$89.55	1	TO
25	309456	BRAKE PIPE FROM JUNCTION TO MC2	309456 BRAKE PIPE FROM JUNCTION TO MC2 Applicable for GD	$92.14	1	TO
26	301000	ESP ECU MOUNT	301000 ESP ECU MOUNT	$101.23	1	TO
