Frame And Structures

Ferrari 575M Maranello

Find Your Part

Ferrari 575M Maranello - FRAME AND STRUCTURES

Look at the exploded parts diagram to find the part you need:
  • Reposition the diagram by dragging it across.
  • Zoom in & out of the diagram by scrolling or using the and buttons
  • Click on a hotspot in the parts diagram to locate the part you need.
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
We recommend that you view the diagram page in 'landscape' view.
Part Key
IN
In Stock
AS
Arriving Soon
TD
To Order
PE
Please Enquire

Photo Part No Description Price (each) Stock
70000155 COMPLETE FRONT FRAME $8,396.07 To Order
70000157 COMPLETE FRONT FRAME $17,256.24 To Order
70000155 COMPLETE FRONT FRAME $8,396.07 To Order
Photo Part No Description Price (each) Stock
70000156 COMPLETE FRONT HALF FRAME -Not for GD- $5,819.45 To Order
70000158 COMPLETE FRONT HALF FRAME $6,821.22 To Order
Photo Part No Description Price (each) Stock
70000162 COMPLETE RH FRONT SIDE FRAME $4,689.08 To Order
Photo Part No Description Price (each) Stock
70000160 COMPLETE LH FRONT SIDE FRAME $4,689.08 To Order
Photo Part No Description Price (each) Stock
70000169 COMPLETE REAR FRAME $8,523.24 To Order
70000171 COMPLETE REAR FRAME $10,148.94 To Order
70000170 COMPLETE REAR FRAME $8,523.24 To Order
Photo Part No Description Price (each) Stock
70000163 R.H. CROSS MEMBER $1,003.12 To Order
Photo Part No Description Price (each) Stock
70000164 L.H. CROSSMEMBER $1,003.12 To Order
Photo Part No Description Price (each) Stock
70000141 REAR FRAME $2,428.19 To Order
Photo Part No Description Price (each) Stock
70000176 FRONT FRAME $2,340.62 To Order
70000177 FRONT FRAME $2,340.62 To Order
Photo Part No Description Price (each) Stock
70000182 R.H. SIDE SPAR $3,509.50 To Order
Photo Part No Description Price (each) Stock
70000183 LH. SIDE SPAR $3,509.50 To Order

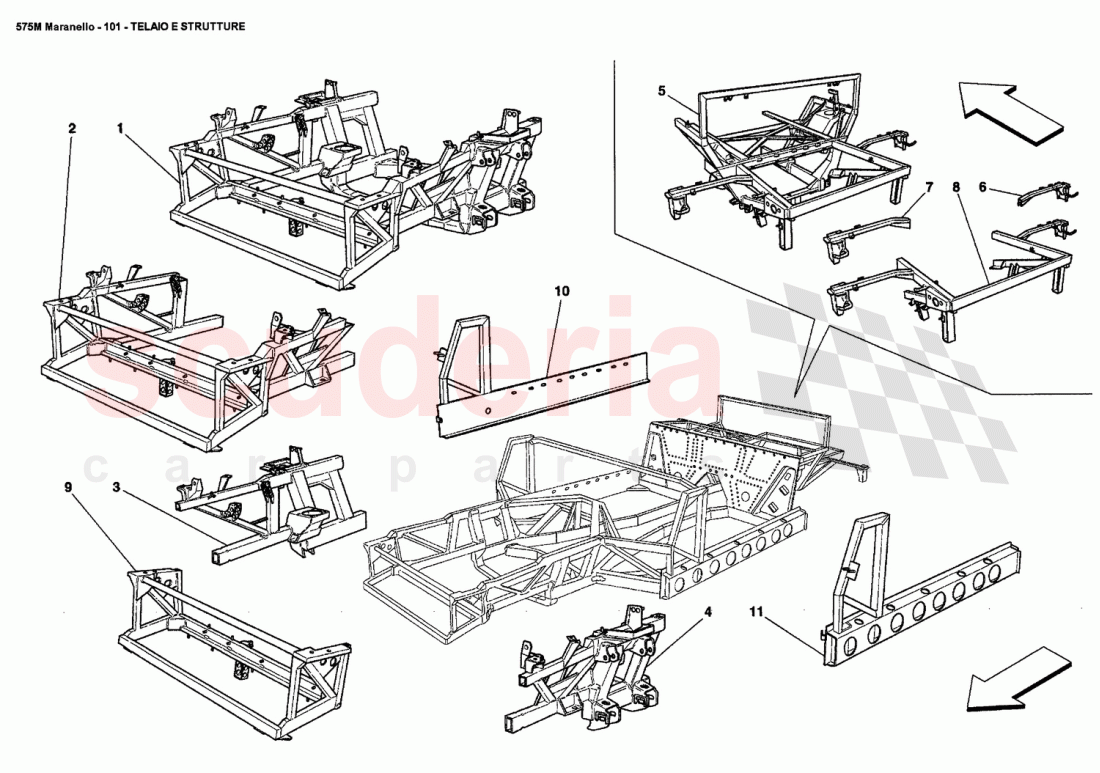

FRAME AND STRUCTURES of Ferrari Ferrari 575M Maranello Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 70000155
COMPLETE FRONT FRAME 		$8,396.07 1
IN
1 70000157
COMPLETE FRONT FRAME
Valid for GD 		$17,256.24 1
IN
1 70000155
COMPLETE FRONT FRAME
Not for GD 		$8,396.07 1
IN
2 70000156
COMPLETE FRONT HALF FRAME -Not for GD- 		$5,819.45 1
IN
2 70000158
COMPLETE FRONT HALF FRAME 		$6,821.22 1
IN
3 70000162
COMPLETE RH FRONT SIDE FRAME
SIDE FRAME 		$4,689.08 1
IN
4 70000160
COMPLETE LH FRONT SIDE FRAME 		$4,689.08 1
IN
5 70000169
COMPLETE REAR FRAME
Not for USA, CDN and GD 		$8,523.24 1
IN
5 70000171
COMPLETE REAR FRAME
Valid for USA and CDN 		$10,148.94 1
IN
5 70000170
COMPLETE REAR FRAME 		$8,523.24 1
IN
6 70000163
R.H. CROSS MEMBER 		$1,003.12 1
IN
7 70000164
L.H. CROSSMEMBER 		$1,003.12 1
IN
8 70000141
REAR FRAME 		$2,428.19 1
IN
9 70000176
FRONT FRAME 		$2,340.62 1
IN
9 70000177
FRONT FRAME 		$2,340.62 1
IN
10 70000182
R.H. SIDE SPAR 		$3,509.50 1
IN
11 70000183
LH. SIDE SPAR 		$3,509.50 1
IN
