Main Wiring

Ferrari 458 Challenge

Find Your Part

Ferrari 458 Challenge - Main wiring

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
283802 REAR CABLE $3,788.94 To Order
Photo Part No Description Price (each) Stock
283801 DASHBOARD CABLES $2,749.22 To Order
Photo Part No Description Price (each) Stock
283800 FRONT CABLE $5,037.65 To Order
Photo Part No Description Price (each) Stock
266268 REAR BUMPER CABLE $519.20 To Order
Photo Part No Description Price (each) Stock
255982 CHASSIS GROUND CABLE $59.69 To Order
Photo Part No Description Price (each) Stock
274885 ALTERNATOR STARTER MOTOR CAB $506.21 To Order
Photo Part No Description Price (each) Stock
267971 RH INJECTION WIRING HARNESS $1,364.22 To Order
Photo Part No Description Price (each) Stock
267972 LH INJECTION WIRING HARNESS $1,272.05 To Order
Photo Part No Description Price (each) Stock
263810 DCT GEARBOX WIRING HARNESS $545.15 To Order
Photo Part No Description Price (each) Stock
266272 WIRING ASSEMBLY FROM FRONT T $246.61 To Order
Photo Part No Description Price (each) Stock
272036 WIRING ASSEMBLY FROM FRONT T $376.42 To Order

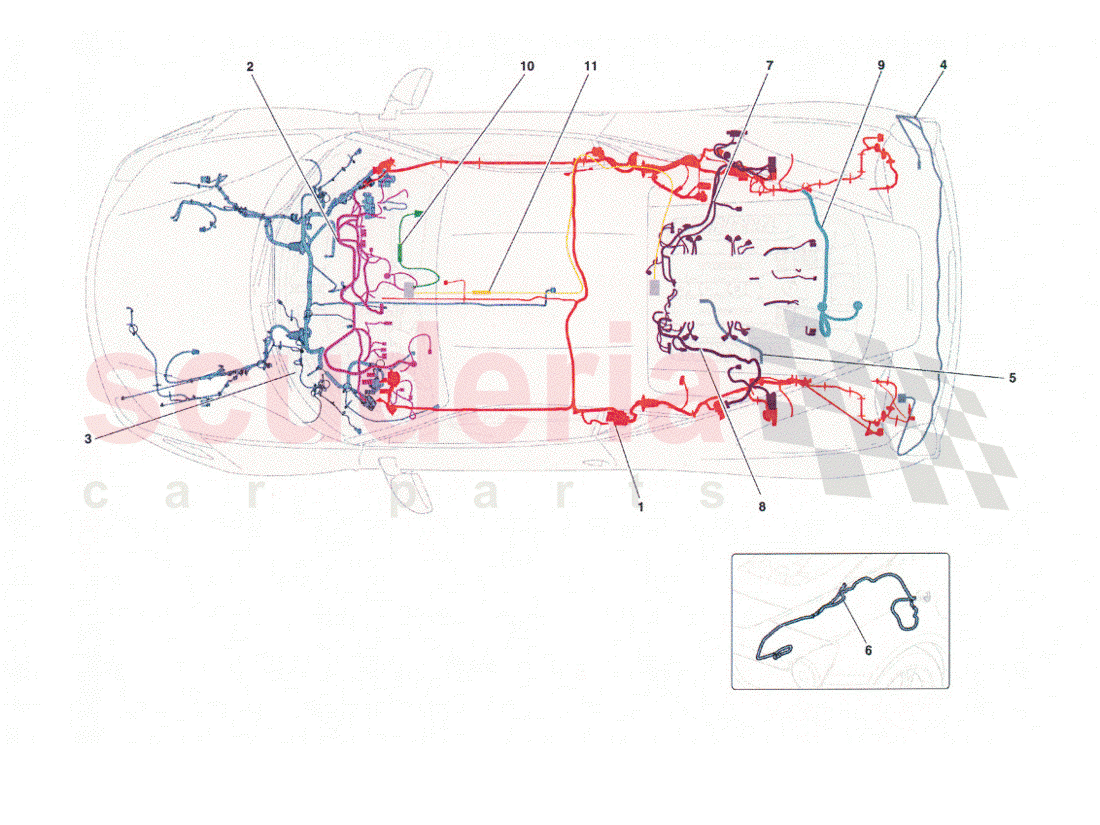

Main wiring of Ferrari Ferrari 458 Challenge Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 283802
REAR CABLE 		$3,788.94 1
TO
2 283801
DASHBOARD CABLES 		$2,749.22 1
TO
3 283800
FRONT CABLE 		$5,037.65 1
TO
4 266268
REAR BUMPER CABLE 		$519.20 1
TO
5 255982
CHASSIS GROUND CABLE 		$59.69 1
TO
6 274885
ALTERNATOR STARTER MOTOR CAB 		$506.21 1
TO
7 267971
RH INJECTION WIRING HARNESS 		$1,364.22 1
TO
8 267972
LH INJECTION WIRING HARNESS 		$1,272.05 1
TO
9 263810
DCT GEARBOX WIRING HARNESS 		$545.15 1
TO
10 266272
WIRING ASSEMBLY FROM FRONT T 		$246.61 1
TO
11 272036
WIRING ASSEMBLY FROM FRONT T 		$376.42 1
TO
