Pumps And Piping Supply

Ferrari 458 Challenge

Find Your Part

Ferrari 458 Challenge - Pumps And Piping Supply

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
268639 FUEL PUMP KIT $3,301.51 To Order
Photo Part No Description Price (each) Stock
275314 O-RING $6.17 IN STOCK
Photo Part No Description Price (each) Stock
239497 FASTENER RING $32.43 To Order
Photo Part No Description Price (each) Stock
239456 SECONDARY LOCK $33.74 To Order
Photo Part No Description Price (each) Stock
269050 FUEL LEVEL SENSOR $2,879.02 To Order
Photo Part No Description Price (each) Stock
10977824 SCREW $1.72 IN STOCK
Photo Part No Description Price (each) Stock
12601174 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
12638124 WASHER $0.05 IN STOCK
Photo Part No Description Price (each) Stock
264104 GASKET $194.69 To Order
Photo Part No Description Price (each) Stock
264056 FUEL FILTER $62.60 To Order
Photo Part No Description Price (each) Stock
268635 QUICK CONNECTOR -M14- $95.18 To Order
Photo Part No Description Price (each) Stock
10280060 WASHER COPPER D14. 20 X 1.5 $0.20 IN STOCK
Photo Part No Description Price (each) Stock
268636 QUICK CONNECTOR -M12- $121.16 To Order
Photo Part No Description Price (each) Stock
11270160 Washer $1.52 IN STOCK
Photo Part No Description Price (each) Stock
257790 RING CLAMP $1.82 To Order
Photo Part No Description Price (each) Stock
266438 RH PIPE FROM FILTER TO FILTE $63.59 To Order
266439 LH PIPE FROM FILTER TO FILTE $63.59 To Order
Photo Part No Description Price (each) Stock
275441 FUEL DELIVERY PIPE $1,142.25 To Order
Photo Part No Description Price (each) Stock
257140 FUEL PRESSURE SENSOR $643.29 To Order

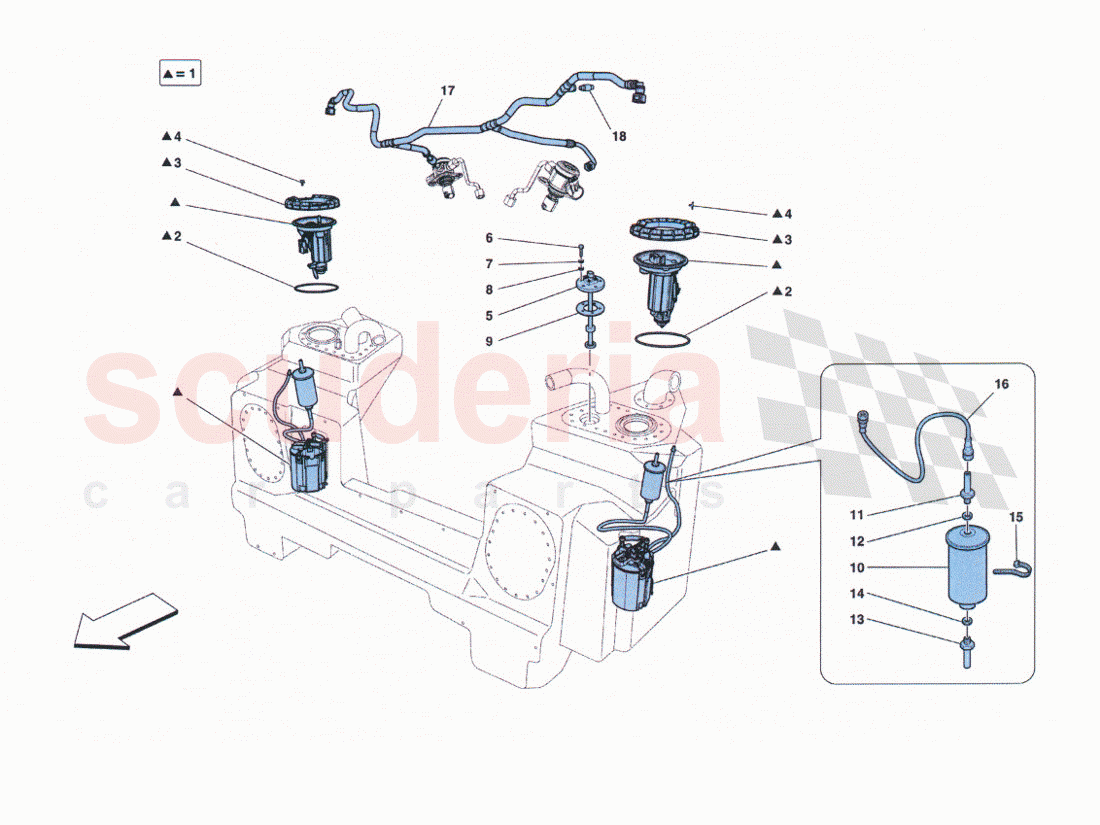

Pumps And Piping Supply of Ferrari Ferrari 458 Challenge Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 268639
FUEL PUMP KIT 		$3,301.51 1
TO
2 275314
O-RING
IN STOCK 		$6.17 (19.3% off) 2
IN
3 239497
FASTENER RING 		$32.43 (36.7% off) 2
TO
4 239456
SECONDARY LOCK 		$33.74 2
TO
5 269050
FUEL LEVEL SENSOR 		$2,879.02 1
TO
6 10977824
SCREW
IN STOCK 		$1.72 5
IN
7 12601174
WASHER 		$0.06 (82.9% off) 5
TO
8 12638124
WASHER
IN STOCK 		$0.05 (92.9% off) 5
IN
9 264104
GASKET 		$194.69 1
TO
10 264056
FUEL FILTER 		$62.60 -
TO
11 268635
QUICK CONNECTOR -M14- 		$95.18 2
TO
12 10280060
WASHER COPPER D14. 20 X 1.5
IN STOCK 		$0.20 (80% off) 2
IN
13 268636
QUICK CONNECTOR -M12- 		$121.16 2
TO
14 11270160
Washer
IN STOCK 		$1.52 2
IN
15 257790
RING CLAMP 		$1.82 (10.3% off) 4
TO
16 266438
RH PIPE FROM FILTER TO FILTE 		$63.59 1
TO
16 266439
LH PIPE FROM FILTER TO FILTE 		$63.59 1
TO
17 275441
FUEL DELIVERY PIPE 		$1,142.25 1
TO
18 257140
FUEL PRESSURE SENSOR 		$643.29 1
TO
