Structures And Elements, Front Of Vehicle

Ferrari 12Cilindri

Find Your Part

Ferrari 12Cilindri - STRUCTURES AND ELEMENTS, FRONT OF VEHICLE

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
985874159 SUBFRAME $13,517.56 To Order
Photo Part No Description Price (each) Stock
985903091 LOWER FRONT CROSS MEMBER $2,121.97 To Order
Photo Part No Description Price (each) Stock
874083 BRACKET $62.32 To Order
Photo Part No Description Price (each) Stock
749849 SCREW $1.91 To Order
Photo Part No Description Price (each) Stock
749853 SCREW $2.42 To Order
Photo Part No Description Price (each) Stock
15888724 SCREW $1.04 To Order
Photo Part No Description Price (each) Stock
299580 SCREW $2.25 To Order
Photo Part No Description Price (each) Stock
827401 SCREW $6.40 To Order
Photo Part No Description Price (each) Stock
11343821 SCREW $1.04 IN STOCK
Photo Part No Description Price (each) Stock
985902953 RH K-BRACE Enquire To Order
Photo Part No Description Price (each) Stock
985902902 LH K-BRACE $1,489.53 To Order
Photo Part No Description Price (each) Stock
985874051 COMPL. STRUT TOWER CONNECTOR CROSS MEMBER $1,890.80 To Order
Photo Part No Description Price (each) Stock
101632 SCREW $46.75 To Order
Photo Part No Description Price (each) Stock
13578324 WASHER $0.22 IN STOCK
Photo Part No Description Price (each) Stock
985874180 COMPL. RH FST Enquire To Order
Photo Part No Description Price (each) Stock
985874092 COMPL. LH FST $10,833.25 To Order
Photo Part No Description Price (each) Stock
873976 RH FRONT BRAKE FLEX BRACKET $123.36 To Order
Photo Part No Description Price (each) Stock
874059 LH FRONT BRAKE FLEX BRACKET $123.36 To Order
Photo Part No Description Price (each) Stock
985820303 RH FRONT SPAR $1,627.18 To Order
Photo Part No Description Price (each) Stock
985820301 LH FRONT SPAR $1,831.08 To Order
Photo Part No Description Price (each) Stock
14639791 RIVET $1.21 To Order
Photo Part No Description Price (each) Stock
985820297 COMPL. RH FRONT CRASH BOX UPRIGHT $1,051.88 To Order
Photo Part No Description Price (each) Stock
985820290 COMPL. LH FRONT CRASH BOX UPRIGHT $947.99 To Order
Photo Part No Description Price (each) Stock
985900923 COMPL. RH STRUT REINFORCEMENT $454.50 To Order
Photo Part No Description Price (each) Stock
985900896 COMPL. LH STRUT REINFORCEMENT $454.50 To Order
Photo Part No Description Price (each) Stock
330777 RIVET $3.98 To Order
Photo Part No Description Price (each) Stock
14307534 SCREW $2.52 IN STOCK
Photo Part No Description Price (each) Stock
985874017 RH UPPER INTERNAL ENGINE COMPARTMENT DIAGONAL BRACE Enquire To Order
Photo Part No Description Price (each) Stock
985874078 LH UPPER INTERNAL ENGINE COMPARTMENT DIAGONAL BRACE Enquire To Order
Photo Part No Description Price (each) Stock
16044634 SCREW $2.16 To Order
Photo Part No Description Price (each) Stock
11194074 WASHER $0.05 IN STOCK
Photo Part No Description Price (each) Stock
13578324 WASHER $0.22 IN STOCK
Photo Part No Description Price (each) Stock
15971334 SCREW $1.30 To Order
Photo Part No Description Price (each) Stock
11190574 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
12646824 WASHER $0.09 IN STOCK
Photo Part No Description Price (each) Stock
15970734 SCREW $0.47 IN STOCK
Photo Part No Description Price (each) Stock
985874015 COMPL. RH UPPER EXTERNAL ENGINE COMPARTMENT DIAGONAL BRACE Enquire To Order
Photo Part No Description Price (each) Stock
985873812 COMPL. LH UPPER EXTERNAL ENGINE COMPARTMENT DIAGONAL BRACE Enquire To Order
Photo Part No Description Price (each) Stock
985874022 RH MIDDLE INTERNAL ENGINE COMPARTMENT DIAGONAL BRACE Enquire To Order
Photo Part No Description Price (each) Stock
985874020 LH MIDDLE INTERNAL ENGINE COMPARTMENT DIAGONAL BRACE $1,446.67 To Order
Photo Part No Description Price (each) Stock
284430 RIVET $1.72 To Order
Photo Part No Description Price (each) Stock
128944 WASHER $2.81 To Order

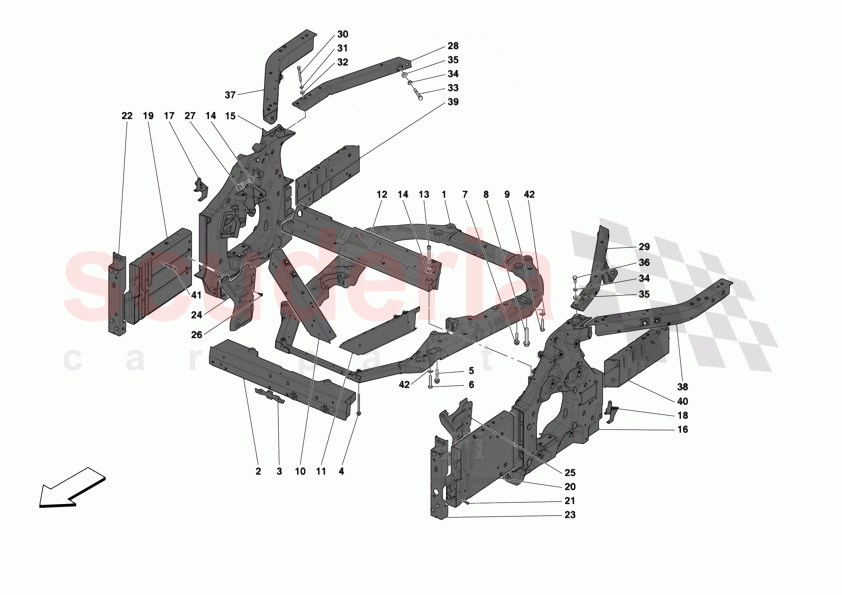

STRUCTURES AND ELEMENTS, FRONT OF VEHICLE of Ferrari Ferrari 12Cilindri Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 985874159
SUBFRAME
Request ASM authorisation - Also order S&S warning label tab.92 ref.15 		$13,517.56 1
TO
2 985903091
LOWER FRONT CROSS MEMBER
Request ASM authorisation 		$2,121.97 1
TO
3 874083
BRACKET 		$62.32 1
TO
4 749849
SCREW
M8 X 100 		$1.91 2
TO
5 749853
SCREW
M10 X 1.25 X 60 		$2.42 6
TO
6 15888724
SCREW
M10 X 1.25 X 55 		$1.04 4
TO
7 299580
SCREW
M10 X 1.25 X 50 		$2.25 4
TO
8 827401
SCREW
M14 X 1.5 X 75 		$6.40 4
TO
9 11343821
SCREW
M10 X 1.25 X 50
IN STOCK 		$1.04 2
IN
10 985902953
RH K-BRACE
Request ASM authorisation 		- 1
PE
 Enquire
11 985902902
LH K-BRACE
Request ASM authorisation 		$1,489.53 1
TO
12 985874051
COMPL. STRUT TOWER CONNECTOR CROSS MEMBER
Request ASM authorisation - For CHINA market also order engine S/N label tab.92 ref.27 		$1,890.80 1
TO
13 101632
SCREW
M10 X 1.25 X 65 		$46.75 (1.2% off) 2
TO

13578324

WASHER

from $0.22

15 985874180
COMPL. RH FST
Request ASM authorisation - For CHINA market also order VIN label tab.92 ref.26 		- 1
PE
 Enquire
16 985874092
COMPL. LH FST
Request ASM authorisation 		$10,833.25 1
TO
17 873976
RH FRONT BRAKE FLEX BRACKET 		$123.36 1
TO
18 874059
LH FRONT BRAKE FLEX BRACKET 		$123.36 1
TO
19 985820303
RH FRONT SPAR
Request ASM authorisation 		$1,627.18 1
TO
20 985820301
LH FRONT SPAR
Request ASM authorisation 		$1,831.08 1
TO
21 14639791
RIVET 		$1.21 4
TO
22 985820297
COMPL. RH FRONT CRASH BOX UPRIGHT
Request ASM authorisation 		$1,051.88 1
TO
23 985820290
COMPL. LH FRONT CRASH BOX UPRIGHT
Request ASM authorisation 		$947.99 1
TO
24 985900923
COMPL. RH STRUT REINFORCEMENT 		$454.50 1
TO
25 985900896
COMPL. LH STRUT REINFORCEMENT 		$454.50 1
TO
26 330777
RIVET 		$3.98 48
TO
27 14307534
SCREW
M10 X 1.25 X 30
IN STOCK 		$2.52 4
IN
28 985874017
RH UPPER INTERNAL ENGINE COMPARTMENT DIAGONAL BRACE
Request ASM authorisation; Not applicable for: GD 		- 1
PE
 Enquire
29 985874078
LH UPPER INTERNAL ENGINE COMPARTMENT DIAGONAL BRACE
Request ASM authorisation; Not applicable for: GD 		- 1
PE
 Enquire
30 16044634
SCREW
M8 X 70 		$2.16 2
TO
31 11194074
WASHER
IN STOCK 		$0.05 (88.9% off) 2
IN
33 15971334
SCREW
M10 X 1.25 X 75 		$1.30 2
TO
34 11190574
WASHER
IN STOCK 		$0.06 6
IN
35 12646824
WASHER
IN STOCK 		$0.09 (76.3% off) 6
IN
36 15970734
SCREW
M10 X 1.25 X 25
IN STOCK 		$0.47 4
IN
37 985874015
COMPL. RH UPPER EXTERNAL ENGINE COMPARTMENT DIAGONAL BRACE
Request ASM authorisation; Not applicable for: GD 		- 1
PE
 Enquire
38 985873812
COMPL. LH UPPER EXTERNAL ENGINE COMPARTMENT DIAGONAL BRACE
Request ASM authorisation; Not applicable for: GD 		- 1
PE
 Enquire
39 985874022
RH MIDDLE INTERNAL ENGINE COMPARTMENT DIAGONAL BRACE
Request ASM authorisation 		- 1
PE
 Enquire
40 985874020
LH MIDDLE INTERNAL ENGINE COMPARTMENT DIAGONAL BRACE
Request ASM authorisation 		$1,446.67 1
TO
41 284430
RIVET 		$1.72 4
TO
42 128944
WASHER 		$2.81 6
TO
