Ferrari 12Cilindri - LATERAL SUBSTRUCTURE

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
985774451 LOWER RH DOOR SEAL PROFILE Enquire To Order
Photo Part No Description Price (each) Stock
985774454 LOWER LH DOOR SEAL PROFILE Enquire To Order
Photo Part No Description Price (each) Stock
985774423 PROFILE LINKING RH A-PILLAR WITH FLANK Enquire To Order
Photo Part No Description Price (each) Stock
985774426 PROFILE LINKING LH A-PILLAR WITH FLANK Enquire To Order
Photo Part No Description Price (each) Stock
985774443 PROFILE LINKING RH B-PILLAR WITH FLANK Enquire To Order
Photo Part No Description Price (each) Stock
985774447 PROFILE LINKING LH B-PILLAR WITH FLANK $476.68 To Order
Photo Part No Description Price (each) Stock
985774459 RH CENTRE PILLAR CLADDING Enquire To Order
Photo Part No Description Price (each) Stock
985774463 LH CENTRE PILLAR CLADDING Enquire To Order
Photo Part No Description Price (each) Stock
985774406 RH FRONT A-PILLAR FLANGE Enquire To Order
985774410 LH FRONT A-PILLAR FLANGE Enquire To Order
Photo Part No Description Price (each) Stock
950100 RH BRACKET $25.94 To Order
Photo Part No Description Price (each) Stock
950099 LH BRACKET $25.94 To Order
Photo Part No Description Price (each) Stock
68176500 SCREW $0.47 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
89143000 SHIM $5.55 To Order
242255 SHIM $3.65 To Order
Photo Part No Description Price (each) Stock
985774295 RH LATERAL SUBSTRUCTURE Enquire To Order
Photo Part No Description Price (each) Stock
985774278 LH LATERAL SUBSTRUCTURE Enquire To Order
Photo Part No Description Price (each) Stock
774276 COMPL. RH LATERAL REAR MOUNT CLADDING $147.61 To Order
Photo Part No Description Price (each) Stock
985774464 RH B-PILLAR LOWER REAR LINER Enquire To Order
Photo Part No Description Price (each) Stock
985774465 LH B-PILLAR LOWER REAR LINER Enquire To Order
Photo Part No Description Price (each) Stock
985774415 FRONT PART OF RH REAR INNER WHEELHOUSE $337.46 To Order
985774419 FRONT PART OF LH REAR INNER WHEELHOUSE $337.46 To Order
Photo Part No Description Price (each) Stock
856379 RH REAR WHEELHOUSE CONNECTOR BRACKET $79.17 To Order
856363 LH REAR WHEELHOUSE CONNECTOR BRACKET $79.17 To Order
Photo Part No Description Price (each) Stock
951614 RH BRACKET $125.89 To Order
951610 LH BRACKET $125.89 To Order
Photo Part No Description Price (each) Stock
985774455 LOWER REAR ELEMENT OF RH LATERAL SUBSTRUCTURE $259.58 To Order
Photo Part No Description Price (each) Stock
985774456 LOWER REAR ELEMENT OF LH LATERAL SUBSTRUCTURE $259.58 To Order
Photo Part No Description Price (each) Stock
985774466 REAR ELEMENT OF RH LATERAL SUBSTRUCTURE $307.53 To Order
Photo Part No Description Price (each) Stock
985774467 REAR ELEMENT OF LH LATERAL SUBSTRUCTURE $307.53 To Order
Photo Part No Description Price (each) Stock
825234 RIVET $1.04 To Order

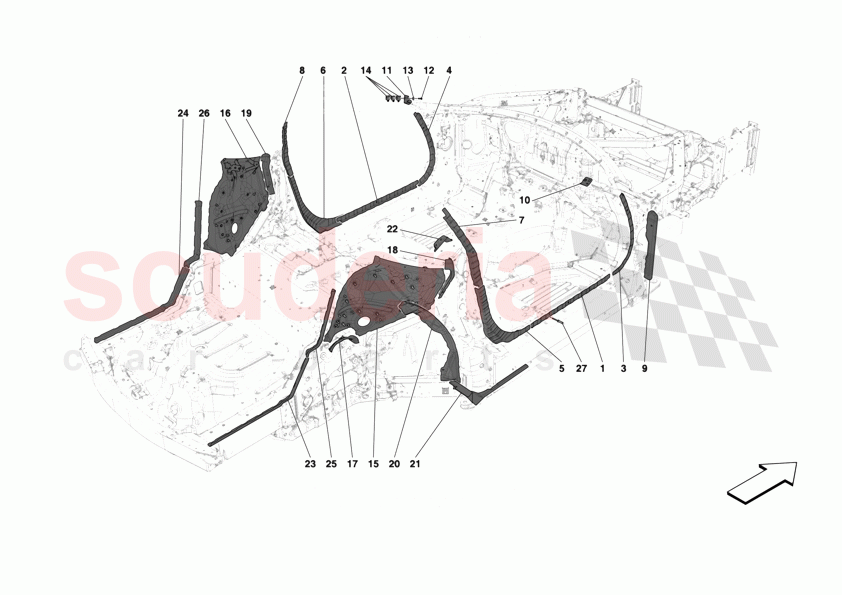

LATERAL SUBSTRUCTURE of Ferrari Ferrari 12Cilindri Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 985774451
LOWER RH DOOR SEAL PROFILE 		- 1
PE
 Enquire
2 985774454
LOWER LH DOOR SEAL PROFILE 		- 1
PE
 Enquire
3 985774423
PROFILE LINKING RH A-PILLAR WITH FLANK 		- 1
PE
 Enquire
4 985774426
PROFILE LINKING LH A-PILLAR WITH FLANK 		- 1
PE
 Enquire
5 985774443
PROFILE LINKING RH B-PILLAR WITH FLANK 		- 1
PE
 Enquire
6 985774447
PROFILE LINKING LH B-PILLAR WITH FLANK 		$476.68 1
TO
7 985774459
RH CENTRE PILLAR CLADDING 		- 1
PE
 Enquire
8 985774463
LH CENTRE PILLAR CLADDING 		- 1
PE
 Enquire
9 985774406
RH FRONT A-PILLAR FLANGE 		- 1
PE
 Enquire
9 985774410
LH FRONT A-PILLAR FLANGE 		- 1
PE
 Enquire
10 950100
RH BRACKET 		$25.94 1
TO
11 950099
LH BRACKET 		$25.94 1
TO
12 68176500
SCREW
M5 X 12
IN STOCK 		$0.47 (37.3% off) 4
IN
13 12643724
WASHER
IN STOCK 		$0.06 (88% off) 4
IN
14 89143000
SHIM
Th. 1 mm 		$5.55 6
TO
14 242255
SHIM
Th. 1 mm 		$3.65 6
TO
15 985774295
RH LATERAL SUBSTRUCTURE 		- 1
PE
 Enquire
16 985774278
LH LATERAL SUBSTRUCTURE 		- 1
PE
 Enquire
17 774276
COMPL. RH LATERAL REAR MOUNT CLADDING 		$147.61 1
TO
18 985774464
RH B-PILLAR LOWER REAR LINER 		- 1
PE
 Enquire
19 985774465
LH B-PILLAR LOWER REAR LINER 		- 1
PE
 Enquire
20 985774415
FRONT PART OF RH REAR INNER WHEELHOUSE 		$337.46 1
TO
20 985774419
FRONT PART OF LH REAR INNER WHEELHOUSE 		$337.46 1
TO
21 856379
RH REAR WHEELHOUSE CONNECTOR BRACKET 		$79.17 1
TO
21 856363
LH REAR WHEELHOUSE CONNECTOR BRACKET 		$79.17 1
TO
22 951614
RH BRACKET 		$125.89 1
TO
22 951610
LH BRACKET 		$125.89 1
TO
23 985774455
LOWER REAR ELEMENT OF RH LATERAL SUBSTRUCTURE 		$259.58 1
TO
24 985774456
LOWER REAR ELEMENT OF LH LATERAL SUBSTRUCTURE 		$259.58 1
TO
25 985774466
REAR ELEMENT OF RH LATERAL SUBSTRUCTURE 		$307.53 1
TO
26 985774467
REAR ELEMENT OF LH LATERAL SUBSTRUCTURE 		$307.53 1
TO
27 825234
RIVET 		$1.04 56
TO
