DOORS - OPENING MECHANISMS AND HINGES of Ferrari Ferrari 12Cilindri

Ferrari 12Cilindri - DOORS - OPENING MECHANISMS AND HINGES

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	784064	COMPL. RH DOOR LOCK UNIT	$1,090.85	To Order
	860625	COMPL. RH DOOR LOCK UNIT	$1,421.99	To Order
	784061	COMPL. LH DOOR LOCK UNIT	$1,090.85	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	995397	PLATE	$15.52	To Order

Photo	Part No	Description	Price (each)	Stock
	808736	DOOR LOCK STRIKER PLATE	$18.16	To Order

Photo	Part No	Description	Price (each)	Stock
	924578	DOOR STRIKER PLATE FILM	$6.49	To Order

Photo	Part No	Description	Price (each)	Stock
	802693	DOOR STRIKER PLATE SHIM	$6.83	To Order

Photo	Part No	Description	Price (each)	Stock
	822994	CLIP	$3.03	To Order

Photo	Part No	Description	Price (each)	Stock
	889675	SCREW	$4.33	To Order

Photo	Part No	Description	Price (each)	Stock
	85133400	SCREW	$0.59	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	896003	CAP	$27.26	To Order

Photo	Part No	Description	Price (each)	Stock
	961658	RH DOOR WATERPROOF MEMBRANE PLUG	$168.81	To Order
	961655	LH DOOR WATERPROOF MEMBRANE PLUG	$168.81	To Order

Photo	Part No	Description	Price (each)	Stock
	868970	RH OUTER DOOR HANDLE MODULE	$324.65	To Order
	868974	RH OUTER DOOR HANDLE MODULE	$428.53	To Order
	868769	LH OUTER DOOR HANDLE MODULE	$428.53	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	14039614	NUT	$0.19	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	878117	RH HANDLE TWO/COMPONENT PADDLE	$66.22	To Order
	878178	LH HANDLE TWO/COMPONENT PADDLE	$66.22	To Order

Photo	Part No	Description	Price (each)	Stock
	878120	RH HANDLE BUTTON	$12.97	To Order
	878116	LH HANDLE BUTTON	$12.97	To Order

Photo	Part No	Description	Price (each)	Stock
	12578011	NUT	$0.16	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	276467	PLUG	$2.76	To Order

Photo	Part No	Description	Price (each)	Stock
	840140	DOOR CHECK STRAP	$233.74	To Order

Photo	Part No	Description	Price (each)	Stock
	84872900	SCREW	$0.36	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14039614	NUT	$0.19	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	55009600	SEAL ON RH FLANK	$22.68	To Order
	995399	SEAL ON LH FLANK	$22.68	To Order

Photo	Part No	Description	Price (each)	Stock
	83897000	DOOR CHECK STRAP SEAL	$15.21	To Order

Photo	Part No	Description	Price (each)	Stock
	85833900	SCREW	$0.33	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	942274	ADHESIVE CAP	$2.52	To Order

Photo	Part No	Description	Price (each)	Stock
	746595	CLIP	$1.55	To Order

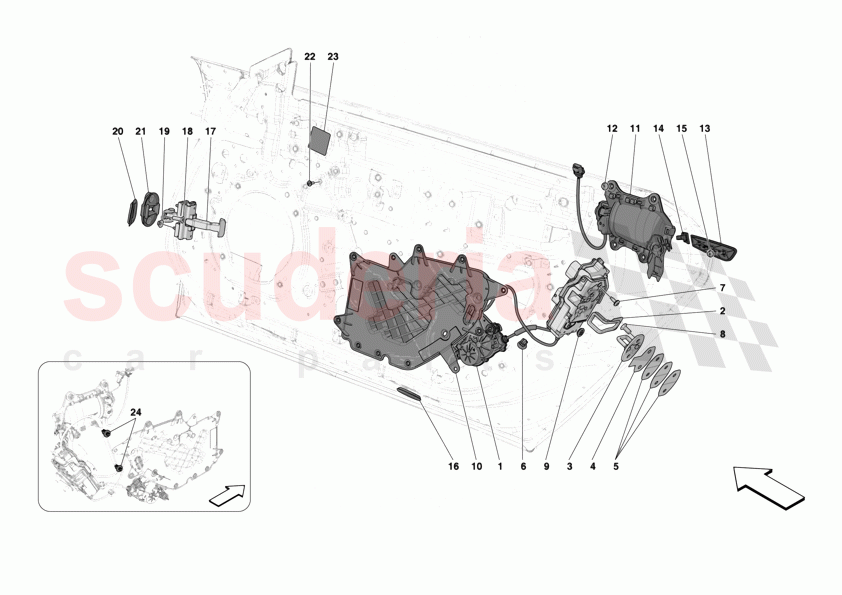

Diagram Tap to enlarge

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
	1	784064	COMPL. RH DOOR LOCK UNIT	784064 COMPL. RH DOOR LOCK UNIT Not applicable for: GD	$1,090.85	1	TO
	1	860625	COMPL. RH DOOR LOCK UNIT	860625 COMPL. RH DOOR LOCK UNIT Applicable for: GD	$1,421.99	1	TO
	1	784061	COMPL. LH DOOR LOCK UNIT	784061 COMPL. LH DOOR LOCK UNIT Not applicable for: GD	$1,090.85	1	TO
	1	860618	COMPL. LH DOOR LOCK UNIT	860618 COMPL. LH DOOR LOCK UNIT Applicable for: GD	$1,444.08	1	TO
	2	995397	PLATE	995397 PLATE	$15.52	2	TO
	3	808736	DOOR LOCK STRIKER PLATE	808736 DOOR LOCK STRIKER PLATE	$18.16	2	TO
	4	924578	DOOR STRIKER PLATE FILM	924578 DOOR STRIKER PLATE FILM	$6.49	2	TO
	5	802693	DOOR STRIKER PLATE SHIM	802693 DOOR STRIKER PLATE SHIM	$6.83	6	TO
	6	822994	CLIP	822994 CLIP	$3.03	4	TO
	7	889675	SCREW	889675 SCREW	$4.33	6	TO
	8	85133400	SCREW IN STOCK	85133400 SCREW M8 X 20 IN STOCK	$0.59 MSRP: ~~0.90~~ (34.4% off)	4	IN
	9	896003	CAP	896003 CAP	$27.26	2	TO
	10	961658	RH DOOR WATERPROOF MEMBRANE PLUG	961658 RH DOOR WATERPROOF MEMBRANE PLUG	$168.81	1	TO
	10	961655	LH DOOR WATERPROOF MEMBRANE PLUG	961655 LH DOOR WATERPROOF MEMBRANE PLUG	$168.81	1	TO
	11	868970	RH OUTER DOOR HANDLE MODULE	868970 RH OUTER DOOR HANDLE MODULE Not applicable for: GD	$324.65	1	TO
	11	868974	RH OUTER DOOR HANDLE MODULE	868974 RH OUTER DOOR HANDLE MODULE Applicable for: GD	$428.53	1	TO
	11	868769	LH OUTER DOOR HANDLE MODULE	868769 LH OUTER DOOR HANDLE MODULE Not applicable for: GD	$428.53	1	TO
	11	868977	LH OUTER DOOR HANDLE MODULE	868977 LH OUTER DOOR HANDLE MODULE Applicable for: GD	$324.65	1	TO
	14039614		NUT	from $0.19
12 NUT IN STOCK $0.19 8 IN 19 NUT IN STOCK $0.19 4 IN
	13	878117	RH HANDLE TWO/COMPONENT PADDLE	878117 RH HANDLE TWO/COMPONENT PADDLE	$66.22	1	TO
	13	878178	LH HANDLE TWO/COMPONENT PADDLE	878178 LH HANDLE TWO/COMPONENT PADDLE	$66.22	1	TO
	14	878120	RH HANDLE BUTTON	878120 RH HANDLE BUTTON	$12.97	1	TO
	14	878116	LH HANDLE BUTTON	878116 LH HANDLE BUTTON	$12.97	1	TO
	15	12578011	NUT IN STOCK	12578011 NUT M5 IN STOCK	$0.16	4	IN
	16	276467	PLUG	276467 PLUG	$2.76	4	TO
	17	840140	DOOR CHECK STRAP	840140 DOOR CHECK STRAP	$233.74	2	TO
	18	84872900	SCREW IN STOCK	84872900 SCREW M8 X 25 IN STOCK	$0.36	2	IN
	20	55009600	SEAL ON RH FLANK	55009600 SEAL ON RH FLANK	$22.68	1	TO
	20	995399	SEAL ON LH FLANK	995399 SEAL ON LH FLANK	$22.68	1	TO
	21	83897000	DOOR CHECK STRAP SEAL	83897000 DOOR CHECK STRAP SEAL	$15.21	2	TO
	22	85833900	SCREW IN STOCK	85833900 SCREW M5 X 14 IN STOCK	$0.33	18	IN
	23	942274	ADHESIVE CAP	942274 ADHESIVE CAP	$2.52	10	TO
	24	746595	CLIP	746595 CLIP	$1.55	2	TO
