Name: DASHBOARD - DUCTS -Not for RHD-
Rating: 4.1 (1 reviews)

Diagram
INFO

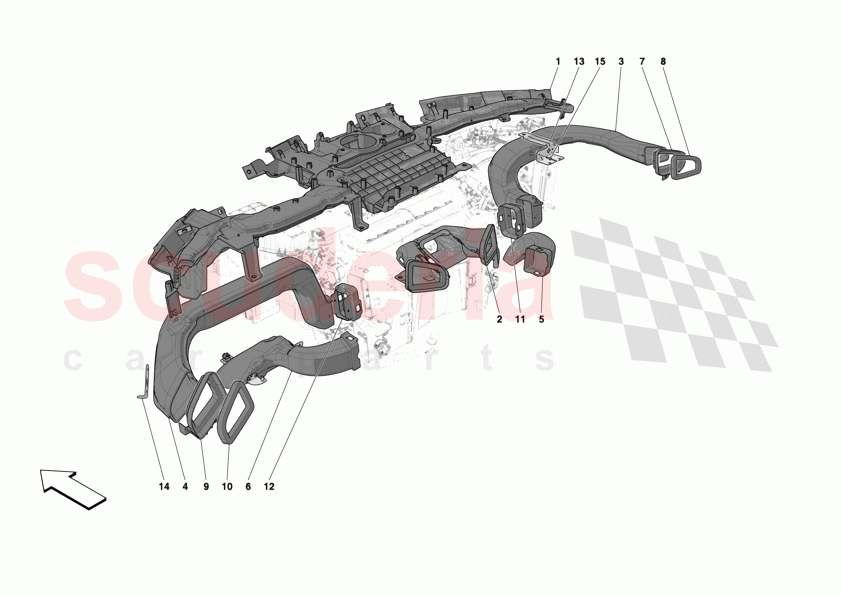

DASHBOARD - DUCTS -Not for RHD- of Ferrari Ferrari 12Cilindri

Ferrari 12Cilindri - DASHBOARD - DUCTS -Not for RHD-

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	823045	COMPL. DEFROSTER DUCT	$960.98	To Order

Photo	Part No	Description	Price (each)	Stock
	823035	COMPL. CENTRE AIR DUCT	$220.75	To Order
	993235	COMPL. CENTRE AIR DUCT	$233.74	To Order

Photo	Part No	Description	Price (each)	Stock
	822996	RH PASSENGER AIR DUCT	$207.77	To Order

Photo	Part No	Description	Price (each)	Stock
	822855	LH DRIVER AIR DUCT	$181.80	To Order

Photo	Part No	Description	Price (each)	Stock
	89223200	PASSENGER SIDE FOOTWELL VENTILATION DUCT	$92.19	To Order

Photo	Part No	Description	Price (each)	Stock
	823229	COMPL. DRIVER SIDE FOOTWELL VENTILATION DUCT	$307.53	To Order

Photo	Part No	Description	Price (each)	Stock
	823005	RH PASSENGER VENT CONNECTOR	$10.38	To Order

Photo	Part No	Description	Price (each)	Stock
	823003	RH VENT SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	822879	LH DRIVER VENT CONNECTOR	$25.96	To Order

Photo	Part No	Description	Price (each)	Stock
	822925	LH VENT SEAL	$20.29	To Order

Photo	Part No	Description	Price (each)	Stock
	888918	RH HVAC CONNECTOR	$18.16	To Order

Photo	Part No	Description	Price (each)	Stock
	822880	DRIVER SIDE HVAC CONNECTOR	$16.87	To Order

Photo	Part No	Description	Price (each)	Stock
	823002	PASSENGER SIDE TEMPERATURE SENSOR FASTENER BRACKET	$35.04	To Order

Photo	Part No	Description	Price (each)	Stock
	822881	DRIVER SIDE TEMPERATURE SENSOR FASTENER BRACKET	$12.97	To Order

Photo	Part No	Description	Price (each)	Stock
	946493	RIVET	$0.19	To Order

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key	Add to Cart
1	823045	COMPL. DEFROSTER DUCT	823045 COMPL. DEFROSTER DUCT Not applicable for: GD	$960.98	1	TO
2	823035	COMPL. CENTRE AIR DUCT	823035 COMPL. CENTRE AIR DUCT Not applicable for: GD	$220.75	1	TO
2	993235	COMPL. CENTRE AIR DUCT	993235 COMPL. CENTRE AIR DUCT Version with air quality sensor; Not applicable for: GD	$233.74	1	TO
3	822996	RH PASSENGER AIR DUCT	822996 RH PASSENGER AIR DUCT Not applicable for: GD	$207.77	1	TO
4	822855	LH DRIVER AIR DUCT	822855 LH DRIVER AIR DUCT Not applicable for: GD	$181.80	1	TO
5	89223200	PASSENGER SIDE FOOTWELL VENTILATION DUCT	89223200 PASSENGER SIDE FOOTWELL VENTILATION DUCT Not applicable for: GD	$92.19	1	TO
6	823229	COMPL. DRIVER SIDE FOOTWELL VENTILATION DUCT	823229 COMPL. DRIVER SIDE FOOTWELL VENTILATION DUCT Not applicable for: GD	$307.53	1	TO
7	823005	RH PASSENGER VENT CONNECTOR	823005 RH PASSENGER VENT CONNECTOR Not applicable for: GD	$10.38	1	TO
8	823003	RH VENT SEAL	823003 RH VENT SEAL Passenger side; Not applicable for: GD	-	1	PE	Enquire
9	822879	LH DRIVER VENT CONNECTOR	822879 LH DRIVER VENT CONNECTOR Not applicable for: GD	$25.96	1	TO
10	822925	LH VENT SEAL	822925 LH VENT SEAL Driver side; Not applicable for: GD	$20.29	1	TO
11	888918	RH HVAC CONNECTOR	888918 RH HVAC CONNECTOR Not applicable for: GD	$18.16	1	TO
12	822880	DRIVER SIDE HVAC CONNECTOR	822880 DRIVER SIDE HVAC CONNECTOR Not applicable for: GD	$16.87	1	TO
13	823002	PASSENGER SIDE TEMPERATURE SENSOR FASTENER BRACKET	823002 PASSENGER SIDE TEMPERATURE SENSOR FASTENER BRACKET Not applicable for: GD	$35.04	1	TO
14	822881	DRIVER SIDE TEMPERATURE SENSOR FASTENER BRACKET	822881 DRIVER SIDE TEMPERATURE SENSOR FASTENER BRACKET Not applicable for: GD	$12.97	1	TO
15	946493	RIVET	946493 RIVET Not applicable for: GD	$0.19	4	TO

Dashboard - Ducts -Not For Rhd-

Ferrari 12Cilindri

Ferrari 12Cilindri - DASHBOARD - DUCTS -Not for RHD-
