Ferrari 12Cilindri - REAR SUSPENSION - ARMS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
825597 COMPL. LH REAR HUB CARRIER $2,640.13 To Order
825598 COMPL. RH REAR HUB CARRIER $2,640.13 To Order
Photo Part No Description Price (each) Stock
894441 COMPL. LOWER LH REAR ARM $1,025.91 To Order
894442 COMPL. LOWER RH REAR ARM $1,025.91 To Order
Photo Part No Description Price (each) Stock
950508 LH ACTUATOR $5,592.45 To Order
950509 RH ACTUATOR $5,883.35 To Order
Photo Part No Description Price (each) Stock
295792 COMPL. REAR UPPER ARM $724.62 To Order
Photo Part No Description Price (each) Stock
259688 ANTI-ROTATION LINKAGE $184.51 To Order
Photo Part No Description Price (each) Stock
238258 SCREW $29.53 IN STOCK
Photo Part No Description Price (each) Stock
336026 ABS SENSOR $68.70 To Order
Photo Part No Description Price (each) Stock
15541434 SCREW $1.88 IN STOCK
Photo Part No Description Price (each) Stock
14496721 WASHER $0.09 IN STOCK
Photo Part No Description Price (each) Stock
203666 NUT $0.82 IN STOCK
Photo Part No Description Price (each) Stock
195167 SCREW $18.87 To Order
Photo Part No Description Price (each) Stock
338394 LH REAR JOINT BRACKET $25.96 To Order
338395 RH REAR JOINT BRACKET $25.96 To Order
Photo Part No Description Price (each) Stock
250657 SCREW $7.25 IN STOCK
Photo Part No Description Price (each) Stock
13046011 NUT $0.33 To Order
Photo Part No Description Price (each) Stock
302406 THREADED ROD $2.16 To Order
Photo Part No Description Price (each) Stock
13578321 WASHER $0.47 IN STOCK
Photo Part No Description Price (each) Stock
14496524 WASHER $0.11 IN STOCK
Photo Part No Description Price (each) Stock
104030 NUT $0.25 IN STOCK
Photo Part No Description Price (each) Stock
238656 SPECIAL SCREW $24.77 IN STOCK
Photo Part No Description Price (each) Stock
310942 CLIP $1.38 To Order
Photo Part No Description Price (each) Stock
238063 NUT $3.99 IN STOCK
Photo Part No Description Price (each) Stock
14507987 PLUG $1.76 IN STOCK
Photo Part No Description Price (each) Stock
264528 THREADED ROD $3.49 IN STOCK
Photo Part No Description Price (each) Stock
896438 THREADED ROD $3.37 To Order
Photo Part No Description Price (each) Stock
263032 ADJUSTMENT SHIM $10.39 To Order
263033 ADJUSTMENT SHIM $3.20 To Order
238881 CAMBER SPACER 1.5MM $5.53 IN STOCK
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
969297 ADJUSTMENT SHIM $20.78 To Order
969298 ADJUSTMENT SHIM $22.51 To Order
969299 ADJUSTMENT SHIM $24.25 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
14496624 WASHER D.10.5-21 X 2 $0.06 IN STOCK
Photo Part No Description Price (each) Stock
13507434 WASHER $1.12 To Order
Photo Part No Description Price (each) Stock
104114 NUT $0.39 IN STOCK
Photo Part No Description Price (each) Stock
942671 COMPL. REAR SENSOR $207.25 To Order
Photo Part No Description Price (each) Stock
343376 BALL JOINT $20.77 IN STOCK
Photo Part No Description Price (each) Stock
951355 LH REAR SENSOR BRACKET $109.07 To Order
951356 RH REAR SENSOR BRACKET $89.59 To Order
Photo Part No Description Price (each) Stock
16284934 FLANGED SCREW $0.73 IN STOCK
Photo Part No Description Price (each) Stock
741924 NUT $8.14 To Order
Photo Part No Description Price (each) Stock
12642701 Washer $0.05 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.30 IN STOCK
Photo Part No Description Price (each) Stock
919936 FASTENER BRACKET $22.06 To Order
Photo Part No Description Price (each) Stock
81911600 SCREW $0.45 To Order

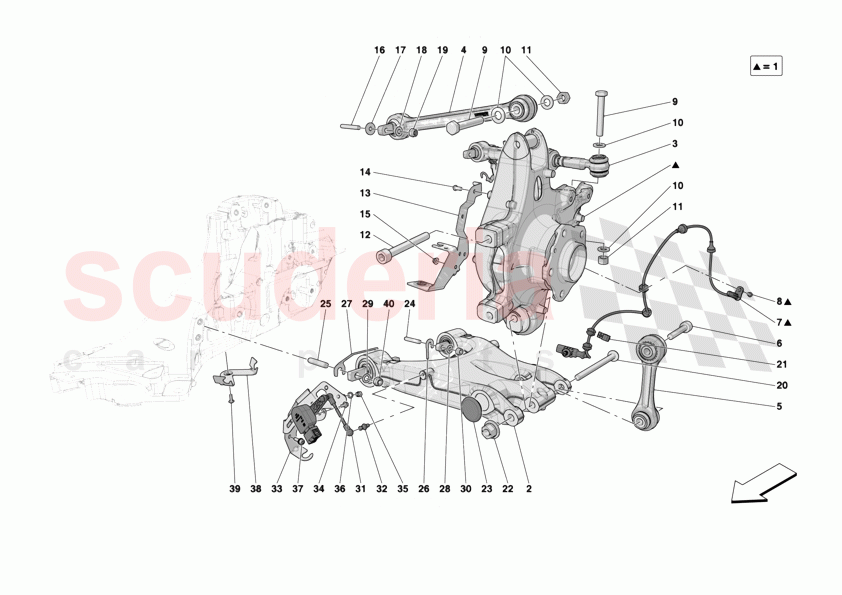

REAR SUSPENSION - ARMS of Ferrari Ferrari 12Cilindri Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 825597
COMPL. LH REAR HUB CARRIER 		$2,640.13 1
TO
1 825598
COMPL. RH REAR HUB CARRIER 		$2,640.13 1
TO
2 894441
COMPL. LOWER LH REAR ARM 		$1,025.91 1
TO
2 894442
COMPL. LOWER RH REAR ARM 		$1,025.91 1
TO
3 950508
LH ACTUATOR 		$5,592.45 1
TO
3 950509
RH ACTUATOR 		$5,883.35 1
TO
4 295792
COMPL. REAR UPPER ARM 		$724.62 2
TO
5 259688
ANTI-ROTATION LINKAGE 		$184.51 2
TO
6 238258
SCREW
M12 X 1.25 X 75
IN STOCK 		$29.53 2
IN
7 336026
ABS SENSOR 		$68.70 2
TO
9 15541434
SCREW
M12 X 1.25 X 80
IN STOCK 		$1.88 (36.9% off) 4
IN
10 14496721
WASHER
IN STOCK 		$0.09 8
IN
11 203666
NUT
IN STOCK 		$0.82 (59% off) 4
IN
12 195167
SCREW
M12 X 1.5 X 105 		$18.87 2
TO
13 338394
LH REAR JOINT BRACKET 		$25.96 1
TO
13 338395
RH REAR JOINT BRACKET 		$25.96 1
TO
14 250657
SCREW
M6 X 14
IN STOCK 		$7.25 5
IN
15 13046011
NUT 		$0.33 2
TO
16 302406
THREADED ROD 		$2.16 8
TO
17 13578321
WASHER
IN STOCK 		$0.47 8
IN
18 14496524
WASHER
IN STOCK 		$0.11 (92.7% off) 8
IN
19 104030
NUT
IN STOCK 		$0.25 (75% off) 8
IN
20 238656
SPECIAL SCREW
M14 X 1.5 X 210
IN STOCK 		$24.77 (9.5% off) 2
IN
21 310942
CLIP
3 compartments 		$1.38 4
TO
22 238063
NUT
IN STOCK 		$3.99 (27.5% off) 2
IN
23 14507987
PLUG
IN STOCK 		$1.76 (28.2% off) 4
IN
24 264528
THREADED ROD
IN STOCK 		$3.49 (11.6% off) 4
IN
25 896438
THREADED ROD 		$3.37 4
TO
26 263032
ADJUSTMENT SHIM
Th. 0.5 mm 		$10.39 4
TO
26 263033
ADJUSTMENT SHIM
Th. 1 mm 		$3.20 4
TO
26 238881
CAMBER SPACER 1.5MM
Th. 1.5 mm
IN STOCK 		$5.53 (10.1% off) 4
IN
26 263035
ADJUSTMENT SHIM
Th. 2 mm 		$3.20 4
TO
26 238882
ADJUSTMENT SHIM
Th. 2.5 mm
IN STOCK 		$5.36 (14.2% off) 4
IN
26 238883
ADJUSTMENT SHIM
Th. 3 mm
IN STOCK 		$5.36 (14.2% off) 4
IN
26 238884
ADJUSTMENT SHIM
Th. 3.5 mm
IN STOCK 		$5.36 (14.2% off) 4
IN
26 238885
CAMBER SPACER 4MM
Th. 4 mm 		$5.53 (11.5% off) 4
TO
27 969297
ADJUSTMENT SHIM
Th. 0.5 mm 		$20.78 2
TO
27 969298
ADJUSTMENT SHIM
Th. 1 mm 		$22.51 2
TO
27 969299
ADJUSTMENT SHIM
Th. 1.5 mm 		$24.25 2
TO
27 969296
ADJUSTMENT SHIM
Th. 2 mm 		$26.84 2
TO
27 969300
ADJUSTMENT SHIM
Th. 2.5 mm 		$28.56 2
TO
27 969301
ADJUSTMENT SHIM
Th. 3 mm 		$32.03 2
TO
27 969302
ADJUSTMENT SHIM
Th. 3.5 mm 		$35.49 2
TO
27 969303
ADJUSTMENT SHIM
Th. 4 mm 		$36.36 2
TO
28 14496624
WASHER D.10.5-21 X 2
D. 10.5-21 X 2
IN STOCK 		$0.06 4
IN
29 13507434
WASHER 		$1.12 4
TO
30 104114
NUT
IN STOCK 		$0.39 (22% off) 4
IN
31 942671
COMPL. REAR SENSOR 		$207.25 2
TO
32 343376
BALL JOINT
IN STOCK 		$20.77 2
IN
33 951355
LH REAR SENSOR BRACKET 		$109.07 1
TO
33 951356
RH REAR SENSOR BRACKET 		$89.59 1
TO
34 16284934
FLANGED SCREW
M5 X 10
IN STOCK 		$0.73 4
IN
35 741924
NUT 		$8.14 2
TO
36 12642701
Washer 		$0.05 2
TO
37 231619
SCREW
M6 X 18
IN STOCK 		$0.30 4
IN
38 919936
FASTENER BRACKET 		$22.06 2
TO
39 81911600
SCREW
M6 X 1 X 18 		$0.45 2
TO
