Hydraulic Brake Control Pipes -Not For Rhd-

Ferrari 12Cilindri

Find Your Part

Ferrari 12Cilindri - HYDRAULIC BRAKE CONTROL PIPES -Not for RHD-

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
914241 UNDERBODY REAR RH BRAKE PIPE $71.37 To Order
Photo Part No Description Price (each) Stock
914242 UNDERBODY REAR LH BRAKE PIPE $70.08 To Order
Photo Part No Description Price (each) Stock
234284 CLIP $0.57 IN STOCK
Photo Part No Description Price (each) Stock
762762 RH FRONT BRAKE PIPE FROM DISCONNECTOR UNION TO WHEEL $61.00 To Order
Photo Part No Description Price (each) Stock
782900 RH FRONT BRAKE PIPE FROM IPB TO DISCONNECTOR UNION $93.44 To Order
Photo Part No Description Price (each) Stock
782877 RH REAR BRAKE PIPE FROM IPB TO DISCONNECTOR UNION $105.13 To Order
Photo Part No Description Price (each) Stock
797052 LH REAR BRAKE PIPE FROM IPB TO DISCONNECTOR UNION $48.01 To Order
Photo Part No Description Price (each) Stock
254195 CLIP $1.38 To Order
Photo Part No Description Price (each) Stock
234285 CLIP $0.62 IN STOCK
Photo Part No Description Price (each) Stock
954590 FRONT LH BRAKE PIPE $67.47 To Order
Photo Part No Description Price (each) Stock
294207 CLIP $5.02 To Order

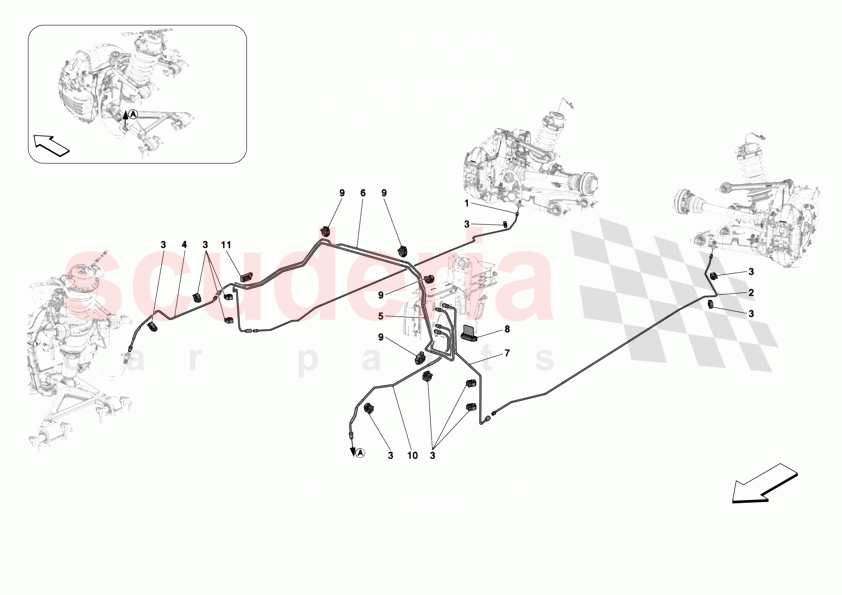

HYDRAULIC BRAKE CONTROL PIPES -Not for RHD- of Ferrari Ferrari 12Cilindri Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 914241
UNDERBODY REAR RH BRAKE PIPE
Not applicable for: GD 		$71.37 1
TO
2 914242
UNDERBODY REAR LH BRAKE PIPE
Not applicable for: GD 		$70.08 1
TO
3 234284
CLIP
1 compartment-; Not applicable for: GD
IN STOCK 		$0.57 11
IN
4 762762
RH FRONT BRAKE PIPE FROM DISCONNECTOR UNION TO WHEEL
Not applicable for: GD 		$61.00 1
TO
5 782900
RH FRONT BRAKE PIPE FROM IPB TO DISCONNECTOR UNION
Not applicable for: GD 		$93.44 1
TO
6 782877
RH REAR BRAKE PIPE FROM IPB TO DISCONNECTOR UNION
Not applicable for: GD 		$105.13 1
TO
7 797052
LH REAR BRAKE PIPE FROM IPB TO DISCONNECTOR UNION
Not applicable for: GD 		$48.01 1
TO
8 254195
CLIP
Not applicable for: GD 		$1.38 1
TO
9 234285
CLIP
2 compartments; Not applicable for: GD
IN STOCK 		$0.62 4
IN
10 954590
FRONT LH BRAKE PIPE
Not applicable for: GD 		$67.47 1
TO
11 294207
CLIP
3 compartments; Not applicable for: GD 		$5.02 1
TO
