Name: EXPANSION TANK
Rating: 5.0 (1 reviews)

Diagram
INFO

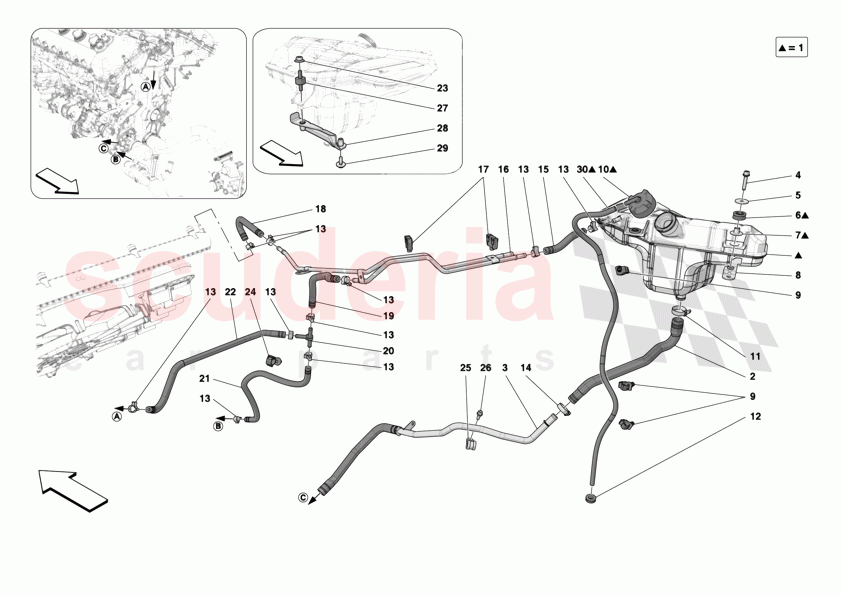

EXPANSION TANK of Ferrari Ferrari 12Cilindri

Ferrari 12Cilindri - EXPANSION TANK

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	833660	COMPL. EXPANSION TANK	$181.80	To Order

Photo	Part No	Description	Price (each)	Stock
	856343	HEADER TANK FILLER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	851138	COMPL. TANK OUTLET PIPE	$246.72	To Order
	55051748	COMPL. TANK OUTLET PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12640624	WASHER	$0.14	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	286492	CABLE GROMMET	$40.25	To Order

Photo	Part No	Description	Price (each)	Stock
	286491	SPACER	$40.25	To Order

Photo	Part No	Description	Price (each)	Stock
	851219	BRACKET	$37.64	To Order

Photo	Part No	Description	Price (each)	Stock
	899974	PIPE MOUNTING	$1.21	To Order

Photo	Part No	Description	Price (each)	Stock
	374030103	TANK PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	$1.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10397380	CABLE GROMMET	$1.48	To Order

Photo	Part No	Description	Price (each)	Stock
	13125470	COLLAR	$0.59	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	$1.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	288386	RUBBER PIPE	$16.87	To Order

Photo	Part No	Description	Price (each)	Stock
	851107	PIPES	$246.72	To Order

Photo	Part No	Description	Price (each)	Stock
	198259	CLIP	$6.23	To Order

Photo	Part No	Description	Price (each)	Stock
	288387	RUBBER PIPE	$46.74	To Order

Photo	Part No	Description	Price (each)	Stock
	762612	RUBBER PIPE	$24.65	To Order

Photo	Part No	Description	Price (each)	Stock
	281899	3-WAY CONNECTOR	$2.86	To Order

Photo	Part No	Description	Price (each)	Stock
	812904	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	851148	VENT PIPE	$51.93	To Order

Photo	Part No	Description	Price (each)	Stock
	14039614	NUT	$0.19	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	339343	CLIP	$2.59	To Order

Photo	Part No	Description	Price (each)	Stock
	10450390	BRACKET WITH SHEATH	$1.99	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.30	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	267798	BUSH	$9.34	To Order

Photo	Part No	Description	Price (each)	Stock
	975262	BRACKET	$54.52	To Order

Photo	Part No	Description	Price (each)	Stock
	880041	Allen Head Bolt M6 X 26	$5.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	953144	HEADER TANK DRAIN PIPE	Enquire	To Order

Diagram Tap to enlarge

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key	Add to Cart
	1	833660	COMPL. EXPANSION TANK	833660 COMPL. EXPANSION TANK	$181.80	1	TO
	2	856343	HEADER TANK FILLER PIPE	856343 HEADER TANK FILLER PIPE	-	1	PE	Enquire
	3	851138	COMPL. TANK OUTLET PIPE	851138 COMPL. TANK OUTLET PIPE	$246.72	1	TO
	3	55051748	COMPL. TANK OUTLET PIPE	55051748 COMPL. TANK OUTLET PIPE	-	1	PE	Enquire
	4	231620	SCREW IN STOCK	231620 SCREW M6 X 30 IN STOCK	$0.31 MSRP: ~~0.35~~ (11.4% off)	2	IN
	5	12640624	WASHER IN STOCK	12640624 WASHER IN STOCK	$0.14 MSRP: ~~0.29~~ (51.7% off)	2	IN
	6	286492	CABLE GROMMET	286492 CABLE GROMMET	$40.25	2	TO
	7	286491	SPACER	286491 SPACER	$40.25	2	TO
	8	851219	BRACKET	851219 BRACKET	$37.64	2	TO
	9	899974	PIPE MOUNTING	899974 PIPE MOUNTING	$1.21	3	TO
	10	374030103	TANK PLUG	374030103 TANK PLUG	-	1	PE	Enquire
	262111		JUBILEE CLAMP	from $1.43
11 JUBILEE CLAMP IN STOCK $1.43 1 IN 14 JUBILEE CLAMP IN STOCK $1.43 2 IN
	12	10397380	CABLE GROMMET	10397380 CABLE GROMMET	$1.48	1	TO
	13	13125470	COLLAR IN STOCK	13125470 COLLAR IN STOCK	$0.59	12	IN
	15	288386	RUBBER PIPE	288386 RUBBER PIPE D. 7-14 X 107	$16.87	2	TO
	16	851107	PIPES	851107 PIPES	$246.72	1	TO
	17	198259	CLIP	198259 CLIP	$6.23	2	TO
	18	288387	RUBBER PIPE	288387 RUBBER PIPE	$46.74	1	TO
	19	762612	RUBBER PIPE	762612 RUBBER PIPE	$24.65	1	TO
	20	281899	3-WAY CONNECTOR	281899 3-WAY CONNECTOR	$2.86 MSRP: ~~3.22~~ (11.2% off)	1	TO
	21	812904	RUBBER PIPE	812904 RUBBER PIPE	-	1	PE	Enquire
	22	851148	VENT PIPE	851148 VENT PIPE	$51.93	1	TO
	23	14039614	NUT IN STOCK	14039614 NUT IN STOCK	$0.19	1	IN
	24	339343	CLIP	339343 CLIP	$2.59	1	TO
	25	10450390	BRACKET WITH SHEATH	10450390 BRACKET WITH SHEATH	$1.99	1	TO
	26	231619	SCREW IN STOCK	231619 SCREW M6 X 18 IN STOCK	$0.30	5	IN
	27	267798	BUSH	267798 BUSH	$9.34	1	TO
	28	975262	BRACKET	975262 BRACKET	$54.52	1	TO
	29	880041	Allen Head Bolt M6 X 26 IN STOCK	880041 Allen Head Bolt M6 X 26 M6 X 18 IN STOCK	$5.45	1	IN
	30	953144	HEADER TANK DRAIN PIPE	953144 HEADER TANK DRAIN PIPE	-	1	PE	Enquire

Expansion Tank

Ferrari 12Cilindri

Ferrari 12Cilindri - EXPANSION TANK
