Ferrari 12Cilindri - ENGINE FUEL DELIVERY PIPES

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
988044 LOW PRESSURE FUEL PIPE Enquire To Order
Photo Part No Description Price (each) Stock
895385 BRACKET $45.43 To Order
Photo Part No Description Price (each) Stock
969197 BRACKET $25.96 To Order
Photo Part No Description Price (each) Stock
67190200 BRACKET WITH SHEATH $2.31 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.59 IN STOCK
Photo Part No Description Price (each) Stock
257273 CLIP $1.12 To Order

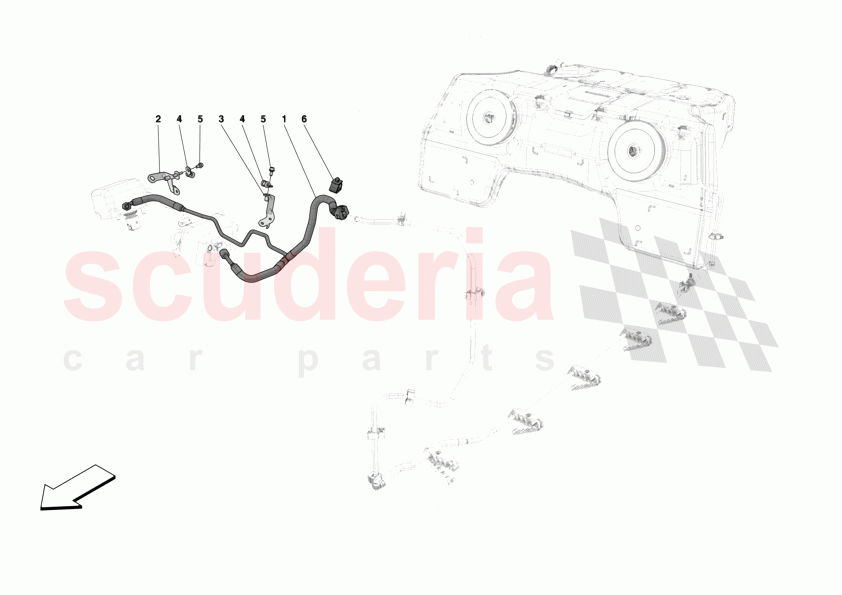

ENGINE FUEL DELIVERY PIPES of Ferrari Ferrari 12Cilindri Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 988044
LOW PRESSURE FUEL PIPE 		- 1
PE
 Enquire
2 895385
BRACKET 		$45.43 1
TO
3 969197
BRACKET 		$25.96 1
TO
4 67190200
BRACKET WITH SHEATH 		$2.31 2
TO
5 248334
SCREW
M6 X 14
IN STOCK 		$0.59 4
IN
6 257273
CLIP 		$1.12 1
TO
