Ferrari 12Cilindri - AIR FILTER, AIR INTAKE AND DUCTS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
802834 ENGINE AIR DUCT $896.05 To Order
Photo Part No Description Price (each) Stock
945321 AIR FILTER COVER $150.68 To Order
55025804 AIR FILTER COVER $4,594.58 To Order
55025805 AIR FILTER COVER $5,082.87 To Order
Photo Part No Description Price (each) Stock
802766 AIR FILTER $154.57 To Order
812789 AIR FILTER $261.79 IN STOCK
Photo Part No Description Price (each) Stock
308398 SCREW $0.42 To Order
Photo Part No Description Price (each) Stock
999560 FENDER MOUNTING SEAL $59.72 To Order
Photo Part No Description Price (each) Stock
85663600 RUBBER SEAL $10.25 To Order
Photo Part No Description Price (each) Stock
16286124 SCREW $0.36 To Order
Photo Part No Description Price (each) Stock
55014781 FRONT ENGINE AIR COWL FASTENER BRACKET $54.52 To Order
Photo Part No Description Price (each) Stock
197584 RUBBER BUSHING $2.42 To Order
Photo Part No Description Price (each) Stock
197585 BUSHING $5.31 To Order
Photo Part No Description Price (each) Stock
14054511 NUT $1.24 IN STOCK
Photo Part No Description Price (each) Stock
81267000 SCREW $3.20 To Order
Photo Part No Description Price (each) Stock
13578324 WASHER $0.22 IN STOCK
Photo Part No Description Price (each) Stock
849686 LATERAL RADIATOR SEAL $9.79 To Order
Photo Part No Description Price (each) Stock
16044534 SCREW $1.30 IN STOCK
Photo Part No Description Price (each) Stock
849801 REAR RADIATOR SEAL $10.86 To Order
Photo Part No Description Price (each) Stock
231626 SCREW $0.73 IN STOCK
Photo Part No Description Price (each) Stock
13578321 WASHER $0.47 IN STOCK
Photo Part No Description Price (each) Stock
227430 WASHER $2.16 To Order
Photo Part No Description Price (each) Stock
290935 BUSH $5.45 To Order
Photo Part No Description Price (each) Stock
849970 COWL MOUNTING BRACKET $36.35 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.30 IN STOCK
Photo Part No Description Price (each) Stock
340839 DUCT ADJUSTER $22.06 To Order
Photo Part No Description Price (each) Stock
343007 BUSH FOR UPPER DUCT BRACKETS $22.06 To Order
Photo Part No Description Price (each) Stock
849965 FRONT RADIATOR SEAL $13.13 To Order
Photo Part No Description Price (each) Stock
86321000 WASHER $5.37 To Order

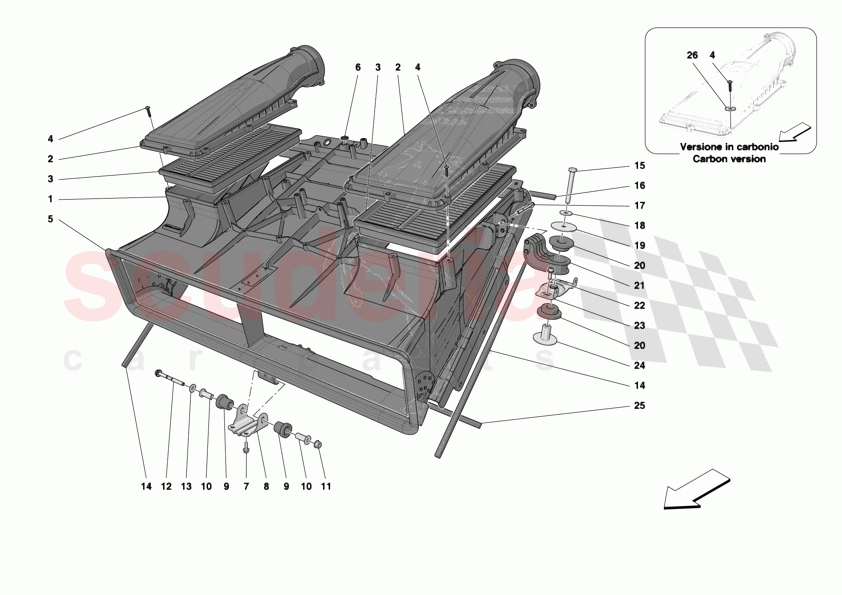

AIR FILTER, AIR INTAKE AND DUCTS of Ferrari Ferrari 12Cilindri Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 802834
ENGINE AIR DUCT 		$896.05 1
TO
2 945321
AIR FILTER COVER 		$150.68 2
TO
2 55025804
AIR FILTER COVER
Gloss finish carbon version 		$4,594.58 2
TO
2 55025805
AIR FILTER COVER
Matte finish carbon version 		$5,082.87 2
TO
3 802766
AIR FILTER
For USA LIGHT market, applicable for Chile submarket only; Not applicable for: CINA, USA, CDN, WA 		$154.57 2
TO
3 812789
AIR FILTER
Not applicable for Chile; Applicable for: CINA, USA, CDN, USA LIGHT, WA
IN STOCK 		$261.79 2
IN
4 308398
SCREW 		$0.42 14
TO
5 999560
FENDER MOUNTING SEAL 		$59.72 1
TO
6 85663600
RUBBER SEAL 		$10.25 2
TO
7 16286124
SCREW
M6 X 20 		$0.36 2
TO
8 55014781
FRONT ENGINE AIR COWL FASTENER BRACKET 		$54.52 1
TO
9 197584
RUBBER BUSHING 		$2.42 2
TO
10 197585
BUSHING 		$5.31 2
TO
11 14054511
NUT
IN STOCK 		$1.24 1
IN
12 81267000
SCREW
M8 X 90 		$3.20 1
TO
13 13578324
WASHER
IN STOCK 		$0.22 1
IN
14 849686
LATERAL RADIATOR SEAL 		$9.79 2
TO
15 16044534
SCREW
M8 X 65
IN STOCK 		$1.30 2
IN
16 849801
REAR RADIATOR SEAL 		$10.86 1
TO
17 231626
SCREW
M6 X 70
IN STOCK 		$0.73 4
IN
18 13578321
WASHER
IN STOCK 		$0.47 2
IN
19 227430
WASHER 		$2.16 2
TO
20 290935
BUSH 		$5.45 4
TO
21 849970
COWL MOUNTING BRACKET 		$36.35 2
TO
22 231619
SCREW
M6 X 18
IN STOCK 		$0.30 2
IN
23 340839
DUCT ADJUSTER 		$22.06 1
TO
24 343007
BUSH FOR UPPER DUCT BRACKETS 		$22.06 2
TO
25 849965
FRONT RADIATOR SEAL 		$13.13 1
TO
26 86321000
WASHER
Applicable for version in carbon fibre 		$5.37 14
TO
