Gearbox Repair Kit

Ferrari 12Cilindri

Find Your Part

Ferrari 12Cilindri - GEARBOX REPAIR KIT

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
748503 HEAT EXCHANGER KIT $972.04 To Order
Photo Part No Description Price (each) Stock
748516 OIL SUMP KIT $541.55 To Order
Photo Part No Description Price (each) Stock
748537 OIL FILTER KIT $925.22 To Order
Photo Part No Description Price (each) Stock
749374 AXLE SHAFT SEAL KIT $69.42 To Order
Photo Part No Description Price (each) Stock
749386 OIL SUCTION FILTER KIT $541.55 To Order
Photo Part No Description Price (each) Stock
749608 AXLE SHAFT SEAL AND FLANGE KIT $1,124.79 To Order
Photo Part No Description Price (each) Stock
749502 INPUT SHAFT KIT $1,208.10 To Order
Photo Part No Description Price (each) Stock
749388 SAM MODULE COVER KIT $416.57 To Order
Photo Part No Description Price (each) Stock
749398 CCM MODULE COVER KIT $527.66 To Order
Photo Part No Description Price (each) Stock
749434 PARK LOCK SOLENOID KIT $472.12 To Order
Photo Part No Description Price (each) Stock
749541 INPUT SHAFT SEAL $155.23 To Order
Photo Part No Description Price (each) Stock
749440 EDIFF KIT $610.98 To Order
Photo Part No Description Price (each) Stock
55051040 CONNECTOR CASING GASKET AND FASTENER KIT $1,815.93 To Order
Photo Part No Description Price (each) Stock
55024221 SENSOR KIT FOR CCM ELECTRONIC MODULE $4,545.02 To Order
Photo Part No Description Price (each) Stock
55024222 VALVE KIT FOR CCM ELECTRONIC MODULE $3,295.24 To Order
Photo Part No Description Price (each) Stock
55024223 SAM ELECTRONIC MODULE KIT, EVEN GEARS $4,089.53 To Order
Photo Part No Description Price (each) Stock
55024227 SAM ELECTRONIC MODULE KIT, ODD GEARS $3,903.45 To Order
Photo Part No Description Price (each) Stock
748513 ELECTRONIC REVERSE MODULE $1,291.42 To Order
Photo Part No Description Price (each) Stock
55024217 CCM KIT $9,977.39 To Order
Photo Part No Description Price (each) Stock
55024220 SAM KIT $10,248.17 To Order

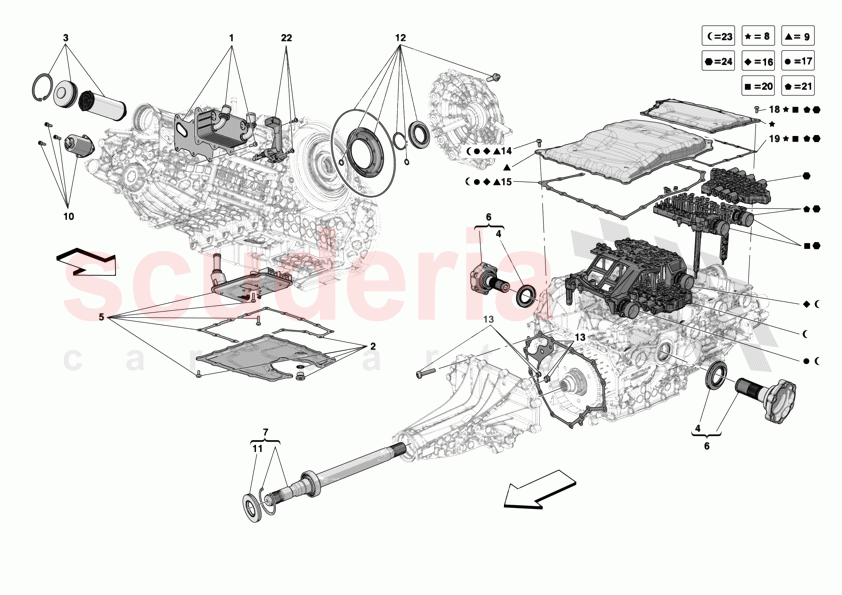

GEARBOX REPAIR KIT of Ferrari Ferrari 12Cilindri Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 748503
HEAT EXCHANGER KIT
Consists of 1 heat exchanger, 1 heat exchanger gasket and 6 screws 		$972.04 1
TO
2 748516
OIL SUMP KIT
Consists of 1 oil sump, 1 oil sump gasket, 1 oil plug and 19 oil sump fastener screws 		$541.55 1
TO
3 748537
OIL FILTER KIT
Consists of 1 filter, 1 cover and 1 circlip 		$925.22 1
TO
4 749374
AXLE SHAFT SEAL KIT
Consists of 2 seals- 		$69.42 1
TO
5 749386
OIL SUCTION FILTER KIT
Consists of 1 oil suction line filter, 2 filter fastener screws, 1 oil sump gasket and 19 oil sump fastener screws 		$541.55 1
TO
6 749608
AXLE SHAFT SEAL AND FLANGE KIT
Consists of 2 flanges and 2 seals 		$1,124.79 1
TO
7 749502
INPUT SHAFT KIT
Consists of 1 shaft, 1 circlip and 1 seal 		$1,208.10 1
TO
8 749388
SAM MODULE COVER KIT
Consists of q.ty 1 cover, q.ty 1 gasket and q.ty 17 M6x14 screws 		$416.57 1
TO
9 749398
CCM MODULE COVER KIT
Consists of q.ty 1 cover, q.ty 1 gasket and q.ty 21 M6x14 screws 		$527.66 1
TO
10 749434
PARK LOCK SOLENOID KIT
Consists of 1 solenoid and 3 screws 		$472.12 1
TO
11 749541
INPUT SHAFT SEAL 		$155.23 1
TO
12 749440
EDIFF KIT
Consists of 1 piston seal, 1 axle shaft flange seal, 2 O-rings (12.3x2), 1 O-ring (230x3.4), 1 circlip and 14 screws 		$610.98 1
TO
13 55051040
CONNECTOR CASING GASKET AND FASTENER KIT
Consists of 1 connector housing gasket, 14 screws, 2 O-rings (14.15x2) and 2 O-rings (11.4x2) 		$1,815.93 1
TO
16 55024221
SENSOR KIT FOR CCM ELECTRONIC MODULE
Consists of q.ty 1 CCM electronic module sensor set, q.ty 4 D-rings, q.ty 2 D.17 O-rings, q.ty 1 D.14 O-ring, q.ty 16 M6x75 screws, q.ty 1 connector, q.ty 1 M6x16 screw, q.ty 1 connector cap, q.ty 1 gasket, q.ty 21 M6x14 screws 		$4,545.02 1
TO
17 55024222
VALVE KIT FOR CCM ELECTRONIC MODULE
Consists of q.ty 1 CCM electronic module valve set, q.ty 1 D.14.7 O-ring, q.ty 5 M5x25 screws, q.ty 4 M6x75 screws, q.ty 1 connector, q.ty 1 M6x16 screw, q.ty 1 connector cap, q.ty 1 gasket, q.ty 21 M6x14 screws 		$3,295.24 1
TO
20 55024223
SAM ELECTRONIC MODULE KIT, EVEN GEARS
Consists of q.ty 1 SAM module (even gears), q.ty 2 D-rings, q.ty 6 M5x25 screws, q.ty 2 connectors, q.ty 2 M6x16 screws, q.ty 1 connector cap, q.ty 1 gasket, q.ty 17 M6x14 screws, q.ty 1 D.20.5 O-ring, q.ty 1 D.14.7 O-ring, q.ty 1 D.10.4 O-ring, q.ty 32 M 		$4,089.53 1
TO
21 55024227
SAM ELECTRONIC MODULE KIT, ODD GEARS
Consists of q.ty 1 SAM module (even gears), q.ty 4 M3.5x8 screws, q.ty 1 D.20.5 O-ring, q.ty 1 D.14.7 O-ring, q.ty 1 D.10.4 O-ring, q.ty 2 connectors, q.ty 2 M6x16 screws, q.ty 1 connector cap, q.ty 1 gasket, q.ty 17 M6x14 screws, q.ty 32 M6x60 screws, q. 		$3,903.45 1
TO
22 748513
ELECTRONIC REVERSE MODULE 		$1,291.42 1
TO
23 55024217
CCM KIT
Consisting of q.ty 1 CCM-ASM sliding plate, q.ty 16 M6x60 hex head screws, q.ty 20 M6x75 hex head screws, q.ty 5 M5x25 flange head screws, q.ty 2 connector for guide sleeve, q.ty 2 M6x16 cylindrical head screws, q.ty 1 DH/CCM gasket, q.ty 21 M6x14 button 		$9,977.39 1
TO
24 55024220
SAM KIT
Consisting of q.ty 1 SAM mechatronic unit assembly, q.ty 32 M6x60 hex head screws, q.ty 8 M5x25 flange head screws, q.ty 2 connector for guide sleeve, q.ty 2 M6x16 cylindrical head screws, q.ty 1 IH/SAM gasket, q.ty 17 M6x14 button head screws 		$10,248.17 1
TO
