Ferrari 12Cilindri - GEARBOX OIL HEAT EXCHANGER AND PIPES - HEAT EXCHANGER AND REAR PIPES

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
841332 WATER RETURN PIPE ON GEARBOX Enquire To Order
Photo Part No Description Price (each) Stock
842584 WATER DELIVERY PIPE ON GEARBOX Enquire To Order
Photo Part No Description Price (each) Stock
178053 CLAMP $1.48 IN STOCK
Photo Part No Description Price (each) Stock
954070 VENT PIPE $37.64 To Order
Photo Part No Description Price (each) Stock
934891 FRONT RUBBER PIPE ON GEARBOX $51.93 To Order
Photo Part No Description Price (each) Stock
954057 RUBBER PIPE ON GEARBOX $35.04 To Order
Photo Part No Description Price (each) Stock
954054 EYELET FOR BREATHER $32.45 To Order
Photo Part No Description Price (each) Stock
241986 COLLAR FOR HOSE UNION $0.98 IN STOCK
Photo Part No Description Price (each) Stock
938373 BRACKET $41.53 To Order
Photo Part No Description Price (each) Stock
61712600 BRACKET WITH SHEATH $1.71 IN STOCK
Photo Part No Description Price (each) Stock
231625 SCREW $0.57 IN STOCK
Photo Part No Description Price (each) Stock
329366 RETAINER BLOCK PLATE $6.23 To Order
Photo Part No Description Price (each) Stock
329368 RETAINER BLOCK BUSH $0.70 To Order
Photo Part No Description Price (each) Stock
780830 REAR WATER PIPE RETAINER BLOCK MOUNT $46.74 To Order
Photo Part No Description Price (each) Stock
11903811 HOSE CONNECTOR $4.21 To Order
Photo Part No Description Price (each) Stock
127497 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
292112 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
954065 BRACKET $24.65 To Order
Photo Part No Description Price (each) Stock
14306224 SCREW $0.20 To Order
Photo Part No Description Price (each) Stock
935822 COMPL. TANK $62.32 To Order
Photo Part No Description Price (each) Stock
329367 RETAINER BLOCK $8.03 To Order
Photo Part No Description Price (each) Stock
803878 SCREW $5.45 To Order
Photo Part No Description Price (each) Stock
899974 PIPE MOUNTING $1.21 To Order

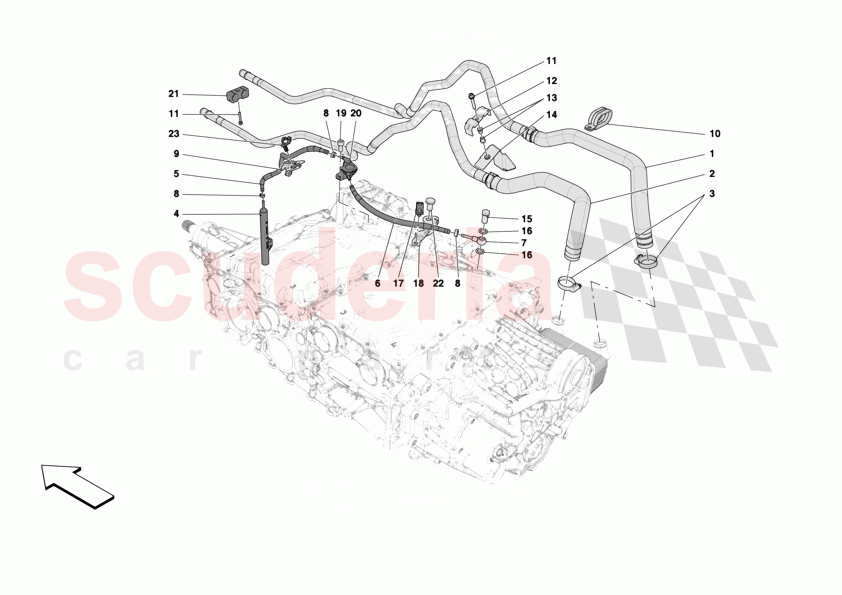

GEARBOX OIL HEAT EXCHANGER AND PIPES - HEAT EXCHANGER AND REAR PIPES of Ferrari Ferrari 12Cilindri Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 841332
WATER RETURN PIPE ON GEARBOX 		- 1
PE
 Enquire
2 842584
WATER DELIVERY PIPE ON GEARBOX 		- 1
PE
 Enquire
3 178053
CLAMP
IN STOCK 		$1.48 (4.5% off) 2
IN
4 954070
VENT PIPE 		$37.64 1
TO
5 934891
FRONT RUBBER PIPE ON GEARBOX 		$51.93 1
TO
6 954057
RUBBER PIPE ON GEARBOX 		$35.04 1
TO
7 954054
EYELET FOR BREATHER 		$32.45 1
TO
8 241986
COLLAR FOR HOSE UNION
IN STOCK 		$0.98 4
IN
9 938373
BRACKET 		$41.53 1
TO
10 61712600
BRACKET WITH SHEATH
IN STOCK 		$1.71 1
IN
11 231625
SCREW
L. 40 mm
IN STOCK 		$0.57 3
IN
12 329366
RETAINER BLOCK PLATE 		$6.23 3
TO
13 329368
RETAINER BLOCK BUSH 		$0.70 6
TO
14 780830
REAR WATER PIPE RETAINER BLOCK MOUNT 		$46.74 1
TO
15 11903811
HOSE CONNECTOR 		$4.21 1
TO
16 127497
WASHER
IN STOCK 		$0.06 (92% off) 2
IN
17 292112
CLIP 		- 1
PE
 Enquire
18 954065
BRACKET 		$24.65 1
TO
19 14306224
SCREW
M8 X 16 		$0.20 (50% off) 1
TO
20 935822
COMPL. TANK 		$62.32 1
TO
21 329367
RETAINER BLOCK 		$8.03 3
TO
22 803878
SCREW
M10 		$5.45 1
TO
23 899974
PIPE MOUNTING 		$1.21 2
TO
