Pistons And Connecting Rods

Ferrari 12Cilindri

Find Your Part

Ferrari 12Cilindri - PISTONS AND CONNECTING RODS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
805669 COMPL. CONNECTING ROD AND CAP $1,083.63 To Order
Photo Part No Description Price (each) Stock
767760 CON. ROD FASTENER SCREW $41.53 To Order
Photo Part No Description Price (each) Stock
912359 BUSH $42.84 To Order
Photo Part No Description Price (each) Stock
337553 ALIGNMENT PIN $6.62 To Order
Photo Part No Description Price (each) Stock
811361 COMPL. RH CYL. BANK PISTON $701.26 To Order
Photo Part No Description Price (each) Stock
811362 COMPL. LH CYL. BANK PISTON $701.26 To Order
Photo Part No Description Price (each) Stock
304680 CONNECTING ROD HALF-BEARING $19.46 To Order
304681 CONNECTING ROD HALF-BEARING $19.46 To Order
304682 CONNECTING ROD HALF-BEARING $19.46 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
855453 COMPL. PISTON RING SET $376.59 To Order

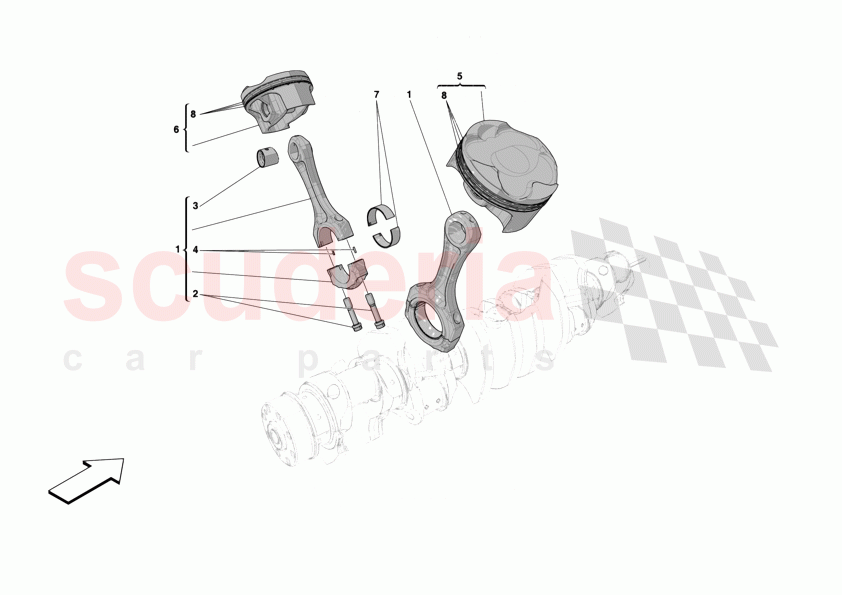

PISTONS AND CONNECTING RODS of Ferrari Ferrari 12Cilindri Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 805669
COMPL. CONNECTING ROD AND CAP 		$1,083.63 12
TO
2 767760
CON. ROD FASTENER SCREW 		$41.53 24
TO
3 912359
BUSH 		$42.84 12
TO
4 337553
ALIGNMENT PIN 		$6.62 24
TO
5 811361
COMPL. RH CYL. BANK PISTON 		$701.26 6
TO
6 811362
COMPL. LH CYL. BANK PISTON 		$701.26 6
TO
7 304680
CONNECTING ROD HALF-BEARING
Black 		$19.46 24
TO
7 304681
CONNECTING ROD HALF-BEARING
Blue 		$19.46 24
TO
7 304682
CONNECTING ROD HALF-BEARING
Red 		$19.46 24
TO
7 823846
CONNECTING ROD HALF-BEARING
Green 		$19.46 24
TO
7 910540
CONNECTING ROD HALF-BEARING
Brown 		$20.77 24
TO
8 855453
COMPL. PISTON RING SET 		$376.59 12
TO
