Name: CYLINDER HEADS - RH HEAD
Rating: 4.7 (1 reviews)

Diagram
INFO

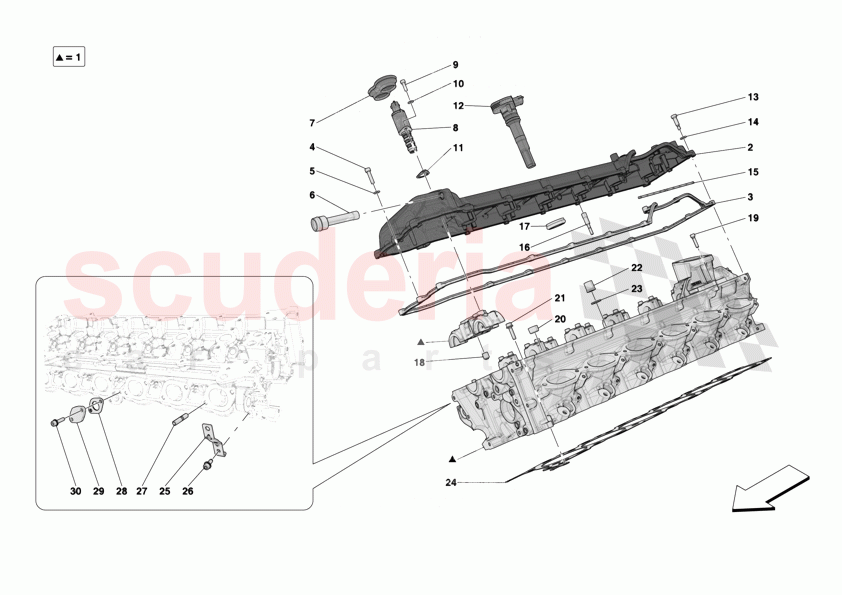

CYLINDER HEADS - RH HEAD of Ferrari Ferrari 12Cilindri

Ferrari 12Cilindri - CYLINDER HEADS - RH HEAD

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	950246	RH HEAD ASSEMBLY	$5,157.04	To Order

Photo	Part No	Description	Price (each)	Stock
	828992	RH CYLINDER HEAD COVER	$623.33	To Order

Photo	Part No	Description	Price (each)	Stock
	243800	RH HEAD COVER GASKET	$80.49	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	214412	STUD BOLT	$12.19	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	317962	THREADED CONNECTOR	$29.20	To Order

Photo	Part No	Description	Price (each)	Stock
	229353	SOLENOID VALVE GASKET	$18.44	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	801187	OIL PRESSURE REGULATOR VALVE	$228.11	To Order

Photo	Part No	Description	Price (each)	Stock
	14304221	SCREW	$0.09	To Order

Photo	Part No	Description	Price (each)	Stock
	11181574	WASHER	$0.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	921255	DAMPER PLATE FOR OCV VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	772927	SINGLE IGNITION COIL	$142.99	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	293278	SCREW	$12.99	To Order

Photo	Part No	Description	Price (each)	Stock
	986899	WASHER	$5.55	To Order

Photo	Part No	Description	Price (each)	Stock
	239614	GASKET	$6.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	214412	STUD BOLT	$12.19	To Order

Photo	Part No	Description	Price (each)	Stock
	223982	SPARK PLUG TUBE SEAL	$2.44	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	200458	CHECK VALVE	$9.37	To Order

Photo	Part No	Description	Price (each)	Stock
	239502	SCREW	$0.56	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	127635	THREADED PLUG	$2.95	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	183524	NUT	$3.53	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	151117	WASHER	$1.07	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	324013	RH HEAD-CRANKCASE GASKET	$268.37	To Order

Photo	Part No	Description	Price (each)	Stock
	866609	HEAT SHIELD MOUNTING BRACKET	$24.65	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.59	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	211641	STUD BOLT	$0.99	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	202980	GASKET	$3.00	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	984306	AIR CAP	$22.06	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.30	IN STOCK

Diagram Tap to enlarge

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key	Add to Cart
	1	950246	RH HEAD ASSEMBLY	950246 RH HEAD ASSEMBLY	$5,157.04	1	TO
	2	828992	RH CYLINDER HEAD COVER	828992 RH CYLINDER HEAD COVER	$623.33	1	TO
	3	243800	RH HEAD COVER GASKET IN STOCK	243800 RH HEAD COVER GASKET IN STOCK	$80.49 MSRP: ~~111.59~~ (27.9% off)	1	IN
	214412		STUD BOLT	from $12.19
4 STUD BOLT $12.19 15 TO 16 STUD BOLT $12.19 3 TO
	5	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	19	IN
	6	317962	THREADED CONNECTOR	317962 THREADED CONNECTOR	$29.20	1	TO
	7	229353	SOLENOID VALVE GASKET IN STOCK	229353 SOLENOID VALVE GASKET IN STOCK	$18.44 MSRP: ~~29.29~~ (37% off)	1	IN
	8	801187	OIL PRESSURE REGULATOR VALVE	801187 OIL PRESSURE REGULATOR VALVE	$228.11	2	TO
	9	14304221	SCREW	14304221 SCREW M5 X 16	$0.09	2	TO
	10	11181574	WASHER IN STOCK	11181574 WASHER IN STOCK	$0.02	2	IN
	11	921255	DAMPER PLATE FOR OCV VALVE	921255 DAMPER PLATE FOR OCV VALVE	-	2	PE	Enquire
	12	772927	SINGLE IGNITION COIL IN STOCK	772927 SINGLE IGNITION COIL IN STOCK	$142.99	6	IN
	13	293278	SCREW	293278 SCREW M6 X 1	$12.99	2	TO
	14	986899	WASHER	986899 WASHER	$5.55	2	TO
	15	239614	GASKET IN STOCK	239614 GASKET IN STOCK	$6.45	1	IN
	17	223982	SPARK PLUG TUBE SEAL IN STOCK	223982 SPARK PLUG TUBE SEAL IN STOCK	$2.44 MSRP: ~~3.97~~ (38.5% off)	6	IN
	18	200458	CHECK VALVE	200458 CHECK VALVE	$9.37	2	TO
	19	239502	SCREW IN STOCK	239502 SCREW M6 X 25 IN STOCK	$0.56	1	IN
	20	127635	THREADED PLUG	127635 THREADED PLUG M18 X 11 X 1.5	$2.95 MSRP: ~~4.17~~ (29.3% off)	6	TO
	21	231620	SCREW IN STOCK	231620 SCREW M6 X 25 IN STOCK	$0.31 MSRP: ~~0.35~~ (11.4% off)	1	IN
	22	183524	NUT IN STOCK	183524 NUT IN STOCK	$3.53	14	IN
	23	151117	WASHER IN STOCK	151117 WASHER IN STOCK	$1.07 MSRP: ~~1.15~~ (7% off)	14	IN
	24	324013	RH HEAD-CRANKCASE GASKET	324013 RH HEAD-CRANKCASE GASKET	$268.37	1	TO
	25	866609	HEAT SHIELD MOUNTING BRACKET	866609 HEAT SHIELD MOUNTING BRACKET	$24.65	1	TO
	26	248334	SCREW IN STOCK	248334 SCREW M6 X 14 IN STOCK	$0.59	1	IN
	27	211641	STUD BOLT IN STOCK	211641 STUD BOLT M8 X 16- -Shank length 24 IN STOCK	$0.99	12	IN
	28	202980	GASKET IN STOCK	202980 GASKET IN STOCK	$3.00 MSRP: ~~3.74~~ (19.8% off)	1	IN
	29	984306	AIR CAP	984306 AIR CAP	$22.06	1	TO
	30	231619	SCREW IN STOCK	231619 SCREW M6 X 20 IN STOCK	$0.30	2	IN
