Name: Roof
Rating: 4.4 (1 reviews)

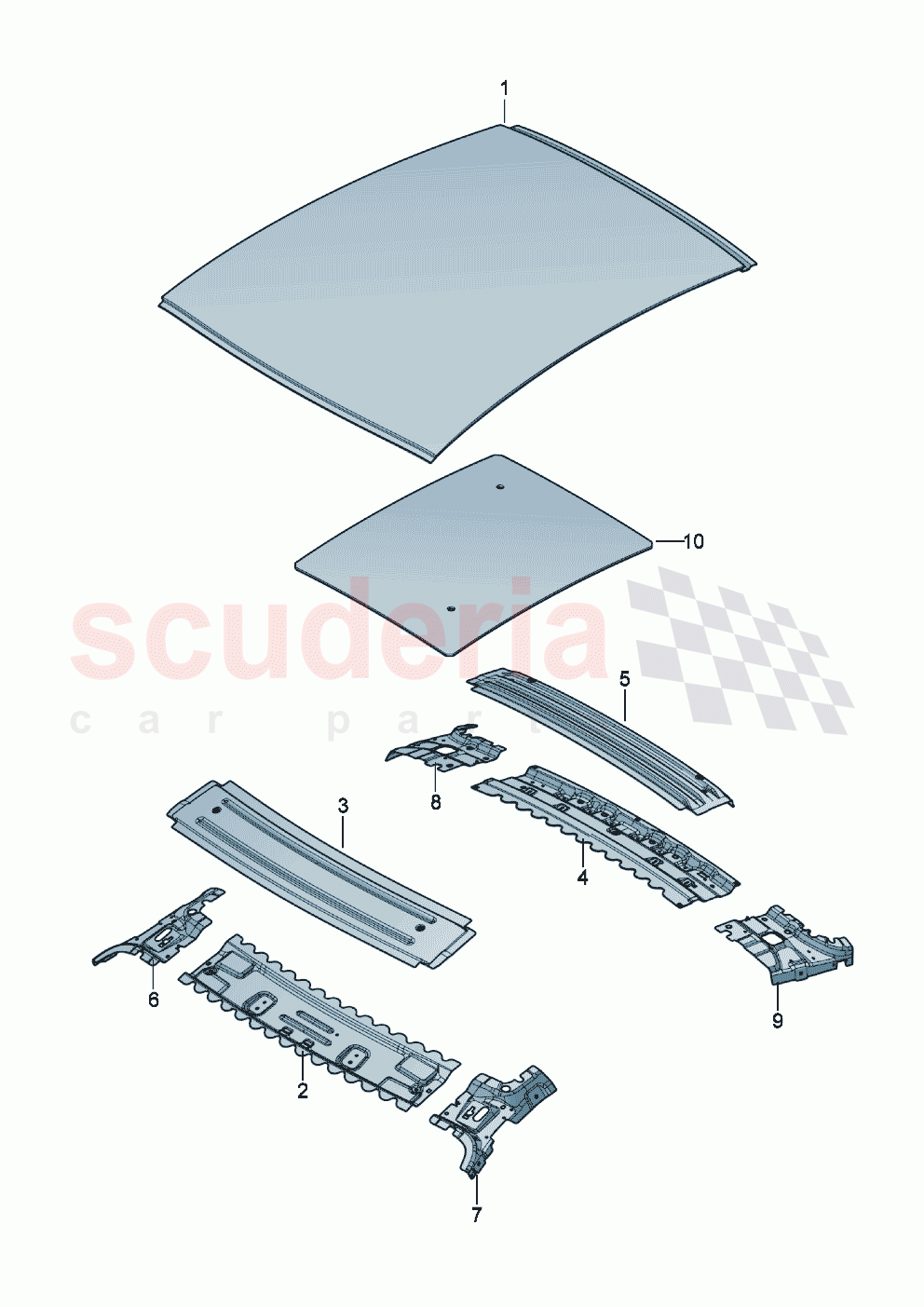

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3SD867807	sound absorber (self-adhesive)	$100.51	To Order
	3SD 810 419 C	Mounting plate	Enquire	To Order

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
	1	3SD817111A	Roof D - 13.08.2018>>	3SD817111A Roof D - 13.08.2018>>	$5,905.53	1	TO
	1	3SD817104C	Roof	3SD817104C Roof front, outer	$2,803.54	1	TO
	3SD817123F		TRANSVERSE ROOF RACK	from $104.53
2 Transverse roof rack $104.53 1 TO 3 Transverse roof rack $104.53 1 TO
	2	3SD817108B	Roof	3SD817108B Roof rear, outer	$2,803.54	1	TO
	3SD817121H		TRANSVERSE ROOF RACK	from $2,104.62
3 Transverse roof rack $2,104.62 1 TO 4 Transverse roof rack $2,104.62 1 TO
	3SD 817 083 E		TRANSVERSE ROOF RACK	-
4 Transverse roof rack - 1 PE Enquire 5 Transverse roof rack - 1 PE Enquire
	3SD 817 287		TRANSVERSE ROOF RACK	-
5 Transverse roof rack - 1 PE Enquire 6 Transverse roof rack - 1 PE Enquire
	3SD 817 292 A		MOUNTING PLATE	-
6 Mounting plate - 1 PE Enquire 7 Mounting plate - 1 PE Enquire
	3SD 817 291 A		MOUNTING PLATE	-
7 Mounting plate - 1 PE Enquire 8 Mounting plate - 1 PE Enquire
	3SD 810 420 C		MOUNTING PLATE	-
8 Mounting plate - 1 PE Enquire 9 Mounting plate - 1 PE Enquire
	3SD 810 419 C		MOUNTING PLATE	-
9 Mounting plate - 1 PE Enquire 10 Mounting plate - 1 PE Enquire
	10	3SD867807	sound absorber (self-adhesive)	3SD867807 sound absorber (self-adhesive)	$100.51	1	TO
