Name: umbrella
Rating: 5.0 (1 reviews)

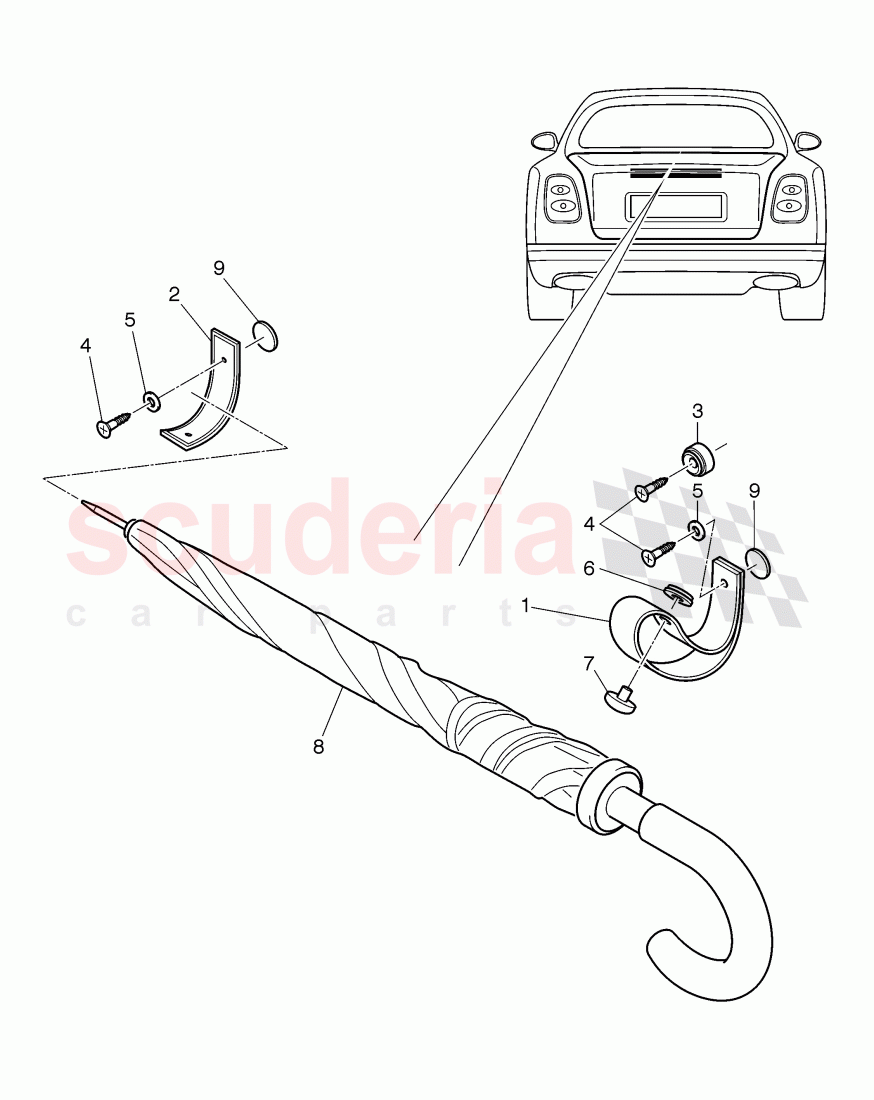

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3Y0 867 667	loop, Umbrella holder	$286.62	To Order

Photo	Part No	Description	Price (each)	Stock
	3Y0 867 668	plate, Umbrella holder	$274.84	To Order

Photo	Part No	Description	Price (each)	Stock
	3Y0 867 190	stud	$30.60	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT 003 643	tapp. screw,csk.hd.	$0.53	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT 003 669	Washer	$1.04	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3Z0 860 539	fasteners	$9.88	To Order

Photo	Part No	Description	Price (each)	Stock
	3Z0 860 540	fasteners	$2.31	To Order

Photo	Part No	Description	Price (each)	Stock
	3Y0 867 250	Bump stop buffer, (self-adhesive)	$6.50	IN STOCK

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
1	3Y0 867 667	loop, Umbrella holder	3Y0 867 667 loop, Umbrella holder	$286.62	-	TO
2	3Y0 867 668	plate, Umbrella holder	3Y0 867 668 plate, Umbrella holder	$274.84	-	TO
3	3Y0 867 190	stud	3Y0 867 190 stud	$30.60	-	TO
4	WHT 003 643	tapp. screw,csk.hd.	WHT 003 643 tapp. screw,csk.hd. M4X16,	$0.53	-	TO
5	WHT 003 669	Washer IN STOCK	WHT 003 669 Washer 12X5.3X1, IN STOCK	$1.04	-	IN
6	3Z0 860 539	fasteners	3Z0 860 539 fasteners	$9.88	-	TO
7	3Z0 860 540	fasteners	3Z0 860 540 fasteners	$2.31	-	TO
8	3Y0 867 621	umbrella, D >> - 04.09.2017	3Y0 867 621 umbrella, D >> - 04.09.2017 green,	$85.49	-	TO
8	3Y0 867 621 A	umbrella, D - 04.09.2017>>	3Y0 867 621 A umbrella, D - 04.09.2017>> black,	$194.60	-	TO
9	3Y0 867 250	Bump stop buffer, (self-adhesive) IN STOCK	3Y0 867 250 Bump stop buffer, (self-adhesive) IN STOCK	$6.50	-	IN

Umbrella

Bentley Mulsanne (2010+)
