Transaxle Assembly of Aston Martin Aston Martin One-77

Aston Martin One-77 - Transaxle Assembly

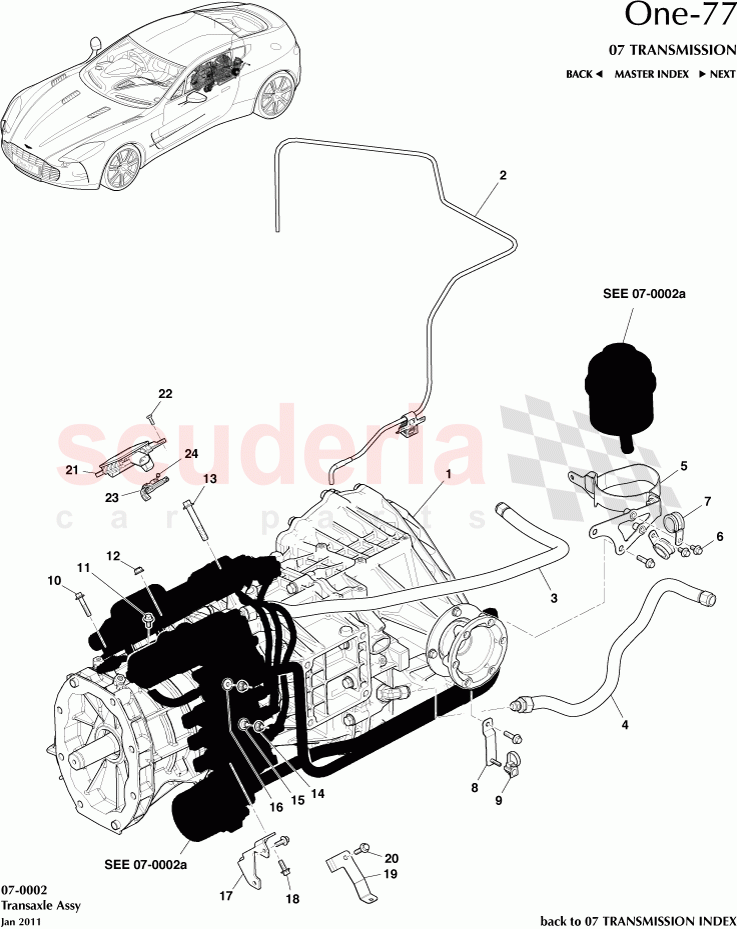

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AY93-7002-AA	Transaxle assy	$58,682.66	To Order

Photo	Part No	Description	Price (each)	Stock
	12023-03-8654-AB	Breather assy, Transaxle	$179.52	To Order

Photo	Part No	Description	Price (each)	Stock
	12023-03-8572-AE	Pipe, Transaxle Cooler	$445.05	To Order

Photo	Part No	Description	Price (each)	Stock
	12023-03-8574-AE	Pipe, Transaxle Cooler	$335.79	To Order

Photo	Part No	Description	Price (each)	Stock
	12023-03-8356-AC	Bracket, ASM Resevoir	$388.52	To Order

Photo	Part No	Description	Price (each)	Stock
	702535	Screw M6x12 hex flg hd	$2.11	To Order

Photo	Part No	Description	Price (each)	Stock
	699699	'P' CLIP - 16	$2.19	To Order

Photo	Part No	Description	Price (each)	Stock
	12023-03-8576-AD	Bracket, ASM Pipe	$96.74	To Order

Photo	Part No	Description	Price (each)	Stock
	8D33-180107-D445	Retainer, Hellerman 20mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703199	Bolt M6x30 HEX FLG Chrome Free	$0.42	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	700606	Screw, M6 x 12, Hex Flange Head	$0.20	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	703169	NUT - M6 HEX FLANGE CHROME FREE	$0.56	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	703193	BOLT M8 x 55 GRD 8 FLANGE HEX HEAD CHROME FREE	$0.52	To Order

Photo	Part No	Description	Price (each)	Stock
	703169	NUT - M6 HEX FLANGE CHROME FREE	$0.56	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6G33-7J039-BA	ISOLATOR - TRANS SHIFT CONTROL MOUNTING	$10.23	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33-7J039-AA	ISOLATOR - TRANS SHIFT CONTROL MOUNTING	$6.52	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33-7L564-BB	ASM HYDRAULIC PUMP BRACKET	$21.37	To Order

Photo	Part No	Description	Price (each)	Stock
	703265	Screw, M6 x 16, Hex Flange Head	$0.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6G33-7L564-AC	ASM HYDRAULIC PUMP BRACKET	$37.40	To Order

Photo	Part No	Description	Price (each)	Stock
	703025	Screw, M6 x 25, Hex Flange Head	$0.20	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6G33-7J269-AC	SENSOR TRANSMISSION ACTUATOR	$1,098.52	To Order

Photo	Part No	Description	Price (each)	Stock
	702959	SCREW M4x12 PAN HEAD 6 LOBE TORX	$0.78	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6G33-7J282-AC	MAGNET ASSY - TRANMISSION ACTUATOR POSN	$81.46	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33505066AC	Screw, M3 x 6, button head	$0.71	To Order

Diagram Tap to enlarge

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key	Add to Cart
	1	AY93-7002-AA	Transaxle assy	AY93-7002-AA Transaxle assy	$58,682.66	1	TO
	2	12023-03-8654-AB	Breather assy, Transaxle	12023-03-8654-AB Breather assy, Transaxle	$179.52	1	TO
	3	12023-03-8572-AE	Pipe, Transaxle Cooler	12023-03-8572-AE Pipe, Transaxle Cooler	$445.05	1	TO
	4	12023-03-8574-AE	Pipe, Transaxle Cooler	12023-03-8574-AE Pipe, Transaxle Cooler	$335.79	1	TO
	5	12023-03-8356-AC	Bracket, ASM Resevoir	12023-03-8356-AC Bracket, ASM Resevoir	$388.52	1	TO
	6	702535	Screw M6x12 hex flg hd	702535 Screw M6x12 hex flg hd	$2.11	2	TO
	7	699699	'P' CLIP - 16	699699 'P' CLIP - 16	$2.19	2	TO
	8	12023-03-8576-AD	Bracket, ASM Pipe	12023-03-8576-AD Bracket, ASM Pipe	$96.74	1	TO
	9	8D33-180107-D445	Retainer, Hellerman 20mm	8D33-180107-D445 Retainer, Hellerman 20mm ASM Pipe	-	1	PE	Enquire
	10	703199	Bolt M6x30 HEX FLG Chrome Free IN STOCK	703199 Bolt M6x30 HEX FLG Chrome Free IN STOCK	$0.42	5	IN
	11	700606	Screw, M6 x 12, Hex Flange Head IN STOCK	700606 Screw, M6 x 12, Hex Flange Head IN STOCK	$0.20	1	IN
	703169		NUT - M6 HEX FLANGE CHROME FREE	from $0.56
12 NUT - M6 HEX FLANGE CHROME FREE IN STOCK $0.56 1 IN 14 NUT - M6 HEX FLANGE CHROME FREE IN STOCK $0.56 3 IN
	13	703193	BOLT M8 x 55 GRD 8 FLANGE HEX HEAD CHROME FREE	703193 BOLT M8 x 55 GRD 8 FLANGE HEX HEAD CHROME FREE	$0.52	1	TO
	15	6G33-7J039-BA	ISOLATOR - TRANS SHIFT CONTROL MOUNTING	6G33-7J039-BA ISOLATOR - TRANS SHIFT CONTROL MOUNTING	$10.23	2	TO
	16	6G33-7J039-AA	ISOLATOR - TRANS SHIFT CONTROL MOUNTING	6G33-7J039-AA ISOLATOR - TRANS SHIFT CONTROL MOUNTING	$6.52	1	TO
	17	6G33-7L564-BB	ASM HYDRAULIC PUMP BRACKET	6G33-7L564-BB ASM HYDRAULIC PUMP BRACKET	$21.37	1	TO
	18	703265	Screw, M6 x 16, Hex Flange Head IN STOCK	703265 Screw, M6 x 16, Hex Flange Head IN STOCK	$0.34	4	IN
	19	6G33-7L564-AC	ASM HYDRAULIC PUMP BRACKET	6G33-7L564-AC ASM HYDRAULIC PUMP BRACKET	$37.40	1	TO
	20	703025	Screw, M6 x 25, Hex Flange Head IN STOCK	703025 Screw, M6 x 25, Hex Flange Head IN STOCK	$0.20	1	IN
	21	6G33-7J269-AC	SENSOR TRANSMISSION ACTUATOR	6G33-7J269-AC SENSOR TRANSMISSION ACTUATOR	$1,098.52	1	TO
	22	702959	SCREW M4x12 PAN HEAD 6 LOBE TORX IN STOCK	702959 SCREW M4x12 PAN HEAD 6 LOBE TORX Trans Actuator Pos. Sensor IN STOCK	$0.78	4	IN
	23	6G33-7J282-AC	MAGNET ASSY - TRANMISSION ACTUATOR POSN	6G33-7J282-AC MAGNET ASSY - TRANMISSION ACTUATOR POSN	$81.46	1	TO
	24	6G33505066AC	Screw, M3 x 6, button head	6G33505066AC Screw, M3 x 6, button head	$0.71	1	TO
