Rear Seat Assembly, Volante

Aston Martin DB9 (2013-2016)

Find Your Part

Aston Martin DB9 (2013-2016) - Rear Seat Assembly, VOLANTE

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
CG43-L60032-AAW Squab Assy, Rear Seat, RH $1,772.89 To Order
Photo Part No Description Price (each) Stock
703026 Screw, M5 x 16, Hex Flange Head $0.20 IN STOCK
Photo Part No Description Price (each) Stock
697517-PK WASHER-M6 LGE OD BLK PACK OF 20 $22.35 To Order
Photo Part No Description Price (each) Stock
7G43-L64216-AC Bracket, Rear Squab Support, RH Enquire To Order
Photo Part No Description Price (each) Stock
CG43-465T10-AAW Head Rest Infill $986.36 To Order
Photo Part No Description Price (each) Stock
CG43-60080-AAW Cushion Assy, Rear Seat, RH $5,373.85 To Order
Photo Part No Description Price (each) Stock
AD33-L63846-ABW Pad Assy, Rear Cushion Lower, RH $1,015.59 To Order
Photo Part No Description Price (each) Stock
4G43-L672A20-ABW Panel Assembly, Rear Seat Side Lower, RH $459.06 To Order

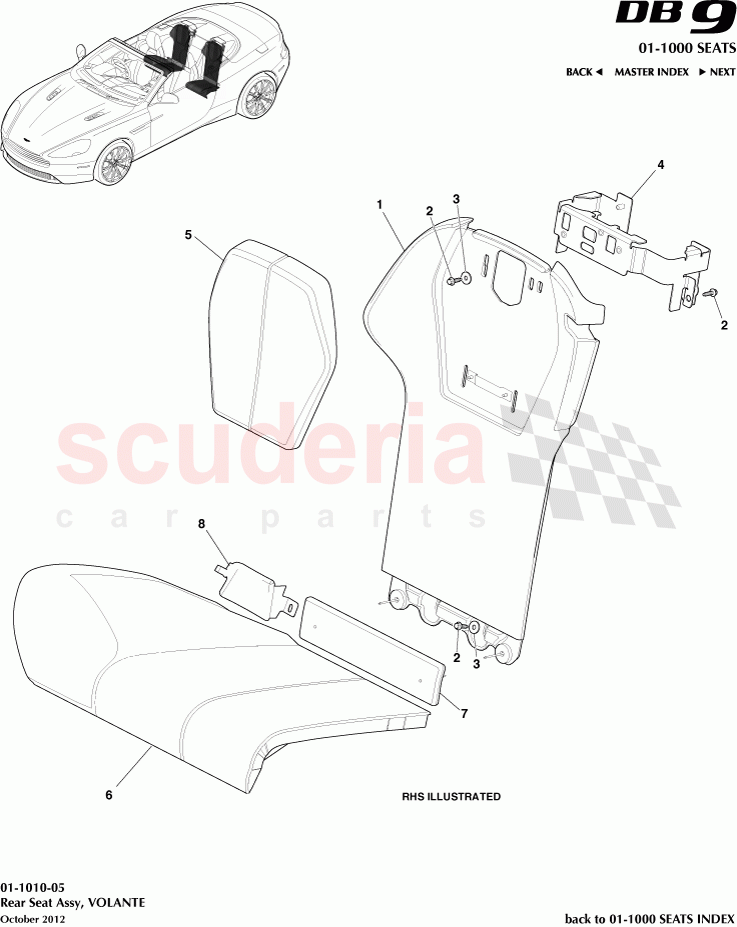

Rear Seat Assembly, VOLANTE of Aston Martin Aston Martin DB9 (2013-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- CG43-L60033-AAW
Squab Assy, Rear Seat, LH
Trimmed 		$1,772.89 1
TO
- 7G43-L64217-AC
Bracket, Rear Squab Support, LH 		- 1
PE
 Enquire
- CG43-60081-AAW
Cushion Assy, Rear Seat, LH
Trimmed 		$5,373.85 1
TO
- AD33L63847ABW
Pad Assy, Rear Cushion Lower, LH 		$1,015.59 1
TO
- 4G43-L672A21-ABW
Panel Assembly, Rear Seat Side Lower, LH 		$459.06 1
TO
1 CG43-L60032-AAW
Squab Assy, Rear Seat, RH
Trimmed 		$1,772.89 1
TO
2 703026
Screw, M5 x 16, Hex Flange Head
IN STOCK 		$0.20 6 per Seat
IN
3 697517-PK
WASHER-M6 LGE OD BLK PACK OF 20
4 per Seat, 20 per Pack 		$22.35 8
TO
4 7G43-L64216-AC
Bracket, Rear Squab Support, RH 		- 1
PE
 Enquire
5 CG43-465T10-AAW
Head Rest Infill 		$986.36 1
TO
6 CG43-60080-AAW
Cushion Assy, Rear Seat, RH
Trimmed 		$5,373.85 1
TO
7 AD33-L63846-ABW
Pad Assy, Rear Cushion Lower, RH 		$1,015.59 1
TO
8 4G43-L672A20-ABW
Panel Assembly, Rear Seat Side Lower, RH 		$459.06 1
TO
