Half Shafts of Aston Martin Aston Martin Cygnet

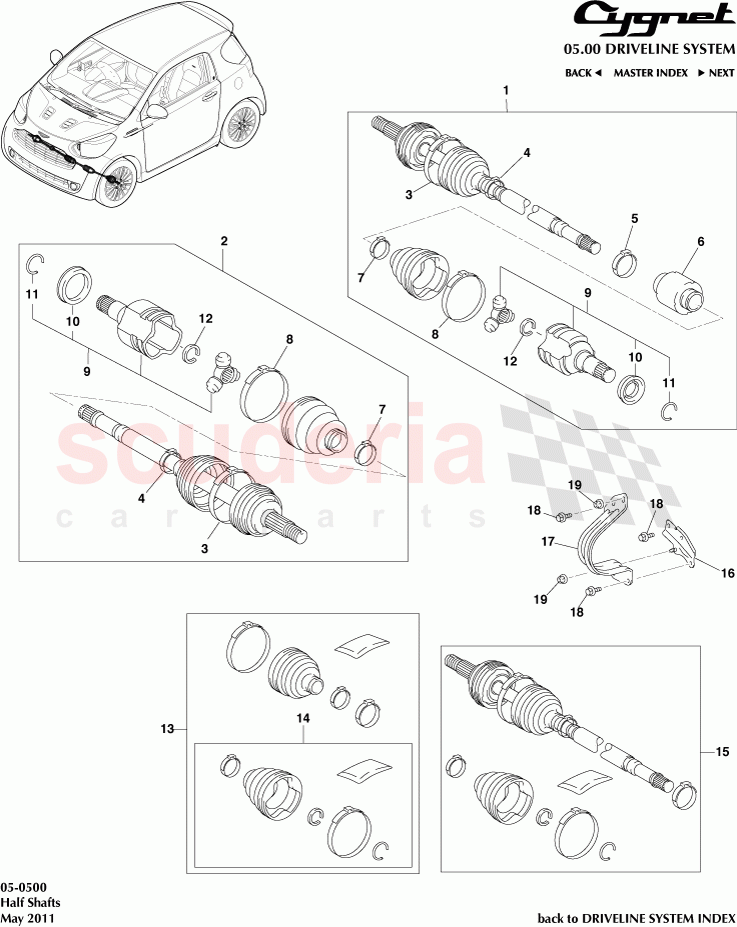

Aston Martin Cygnet - Half Shafts

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	43410-74060	Shaft Assy, Front Drive, RHS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	43420-74050	Shaft Assy, Front Drive, LHS	$1,010.54	To Order

Photo	Part No	Description	Price (each)	Stock
	42345-74070	Clamp, No 2, Front Axle Outboard Joint Boot	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	42345-74060	Clamp, Front Axle Outboard Joint Boot	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	42345-16030	Clamp, Drive Shaft Damper Setting	$7.50	To Order

Photo	Part No	Description	Price (each)	Stock
	43474-74020	Damper, Front Drive Shaft, (RH Only)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	42345-74090	Clamp, Front Axle Inboard Joint Boot	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	42345-74080	Clamp, No 2, Front Axle Inboard Joint Boot	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	43040-74030	Joint Assy, Front Drive Inboard	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41336-12010	Cover, Front Drive Shaft Dust	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	90521-26004	Ring, Hole Snap, Front Drive Shaft	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	43425-74020	Ring, Shaft Snap, Front Drive	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	04427-74040	Boot Kit, Front Drive Shaft, In/Outboard Joint	$206.43	To Order

Photo	Part No	Description	Price (each)	Stock
	04437-74040	Boot Kit, Front Drive Shaft, Inboard Joint	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	43460-79035	Shaft Assy, Front Drive Outboard Joint, RH	$458.08	To Order

Photo	Part No	Description	Price (each)	Stock
	43497-74010	Insulator, Bearing Bracket Heat	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	43498-74010	Insulator, Drive Shaft Heat	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	91671-80820	Bolt, Transmission Control Cable Bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	90179-08256	Nut	$1.79	To Order

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key	Add to Cart
-	43470-79115	Shaft Assy, Front Drive Outboard Joint, LH	43470-79115 Shaft Assy, Front Drive Outboard Joint, LH	-	1	PE	Enquire
1	43410-74060	Shaft Assy, Front Drive, RHS	43410-74060 Shaft Assy, Front Drive, RHS	-	1	PE	Enquire
2	43420-74050	Shaft Assy, Front Drive, LHS	43420-74050 Shaft Assy, Front Drive, LHS	$1,010.54	1	TO
3	42345-74070	Clamp, No 2, Front Axle Outboard Joint Boot	42345-74070 Clamp, No 2, Front Axle Outboard Joint Boot One per side	-	2	PE	Enquire
4	42345-74060	Clamp, Front Axle Outboard Joint Boot	42345-74060 Clamp, Front Axle Outboard Joint Boot One per side	-	2	PE	Enquire
5	42345-16030	Clamp, Drive Shaft Damper Setting	42345-16030 Clamp, Drive Shaft Damper Setting	$7.50	1	TO
6	43474-74020	Damper, Front Drive Shaft, (RH Only)	43474-74020 Damper, Front Drive Shaft, (RH Only)	-	1	PE	Enquire
7	42345-74090	Clamp, Front Axle Inboard Joint Boot	42345-74090 Clamp, Front Axle Inboard Joint Boot One per side	-	2	PE	Enquire
8	42345-74080	Clamp, No 2, Front Axle Inboard Joint Boot	42345-74080 Clamp, No 2, Front Axle Inboard Joint Boot One per side	-	2	PE	Enquire
9	43040-74030	Joint Assy, Front Drive Inboard	43040-74030 Joint Assy, Front Drive Inboard One per side	-	2	PE	Enquire
10	41336-12010	Cover, Front Drive Shaft Dust	41336-12010 Cover, Front Drive Shaft Dust One per side	-	2	PE	Enquire
11	90521-26004	Ring, Hole Snap, Front Drive Shaft	90521-26004 Ring, Hole Snap, Front Drive Shaft One per side	-	2	PE	Enquire
12	43425-74020	Ring, Shaft Snap, Front Drive	43425-74020 Ring, Shaft Snap, Front Drive One per side	-	2	PE	Enquire
13	04427-74040	Boot Kit, Front Drive Shaft, In/Outboard Joint	04427-74040 Boot Kit, Front Drive Shaft, In/Outboard Joint	$206.43	1	TO
14	04437-74040	Boot Kit, Front Drive Shaft, Inboard Joint	04437-74040 Boot Kit, Front Drive Shaft, Inboard Joint	-	1	PE	Enquire
15	43460-79035	Shaft Assy, Front Drive Outboard Joint, RH	43460-79035 Shaft Assy, Front Drive Outboard Joint, RH	$458.08	1	TO
16	43497-74010	Insulator, Bearing Bracket Heat	43497-74010 Insulator, Bearing Bracket Heat	-	1	PE	Enquire
17	43498-74010	Insulator, Drive Shaft Heat	43498-74010 Insulator, Drive Shaft Heat	-	1	PE	Enquire
18	91671-80820	Bolt, Transmission Control Cable Bracket	91671-80820 Bolt, Transmission Control Cable Bracket	-	4	PE	Enquire
19	90179-08256	Nut	90179-08256 Nut	$1.79	2	TO
