14 - Ducts, Vents & Floors - 14.2 - Side Ducts & Vents

McLaren 720S Coupe

Find Your Part

McLaren 720S Coupe - 14 - DUCTS, VENTS & FLOORS - 14.2 - SIDE DUCTS & VENTS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14AB148CP SIDE DUCT - HIGH TEMPRATURE RADIATOR - OUTER - UPPER - RH - LHD Enquire To Order
14AB144CP SIDE DUCT - HIGH TEMPRATURE RADIATOR - OUTER - UPPER - LH - LHD Enquire To Order
Photo Part No Description Price (each) Stock
14AB154CP SIDE DUCT - HIGH TEMPRATURE RADIATOR - OUTER - UPPER - RH - RHD Enquire To Order
14AB148CP SIDE DUCT - HIGH TEMPRATURE RADIATOR - OUTER - UPPER - RH - LHD Enquire To Order
Photo Part No Description Price (each) Stock
00RA409 BOLT - FLANGE - M6X16 - BUTTON HEAD Enquire To Order
Photo Part No Description Price (each) Stock
00RA609 SCREW - BUTTON HEAD - TORX - FLANGE - M6X1X10-8.8-85 Enquire To Order
Photo Part No Description Price (each) Stock
00RB183 CLIP - U NUT - M6 Enquire To Order
Photo Part No Description Price (each) Stock
14A0322CP SIDE DUCT - INNER - HIGH TEMPRATURE RADIATOR - LH Enquire To Order
Photo Part No Description Price (each) Stock
00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
14A0327CP SIDE DUCT - INNER - HIGH TEMPRATURE RADIATOR - RH Enquire To Order
Photo Part No Description Price (each) Stock
14AB145CP FOAM - RADIATOR DUCT - HVAC PIPE - LH $6.02 To Order
Photo Part No Description Price (each) Stock
14A3025CP DUCT SIDE OUTER LOWER FOAM FRONT $6.23 To Order
Photo Part No Description Price (each) Stock
14A2350CP FOAM - RADIATOR DUCT - FRONT - LONG - LH $6.42 To Order
Photo Part No Description Price (each) Stock
14A2353CP FOAM - RADIATOR DUCT - FRONT - RH $8.64 To Order
Photo Part No Description Price (each) Stock
14A2349CP FOAM - RADIATOR DUCT - REAR $12.08 To Order
Photo Part No Description Price (each) Stock
14A3209CP SUPPORT BRACE - SIDE DUCT $17.25 To Order
Photo Part No Description Price (each) Stock
00RC050 WASHER - M6X5.0MM Enquire To Order
Photo Part No Description Price (each) Stock
14A0323CP GRILLE - SIDE DUCT - LH $463.23 To Order

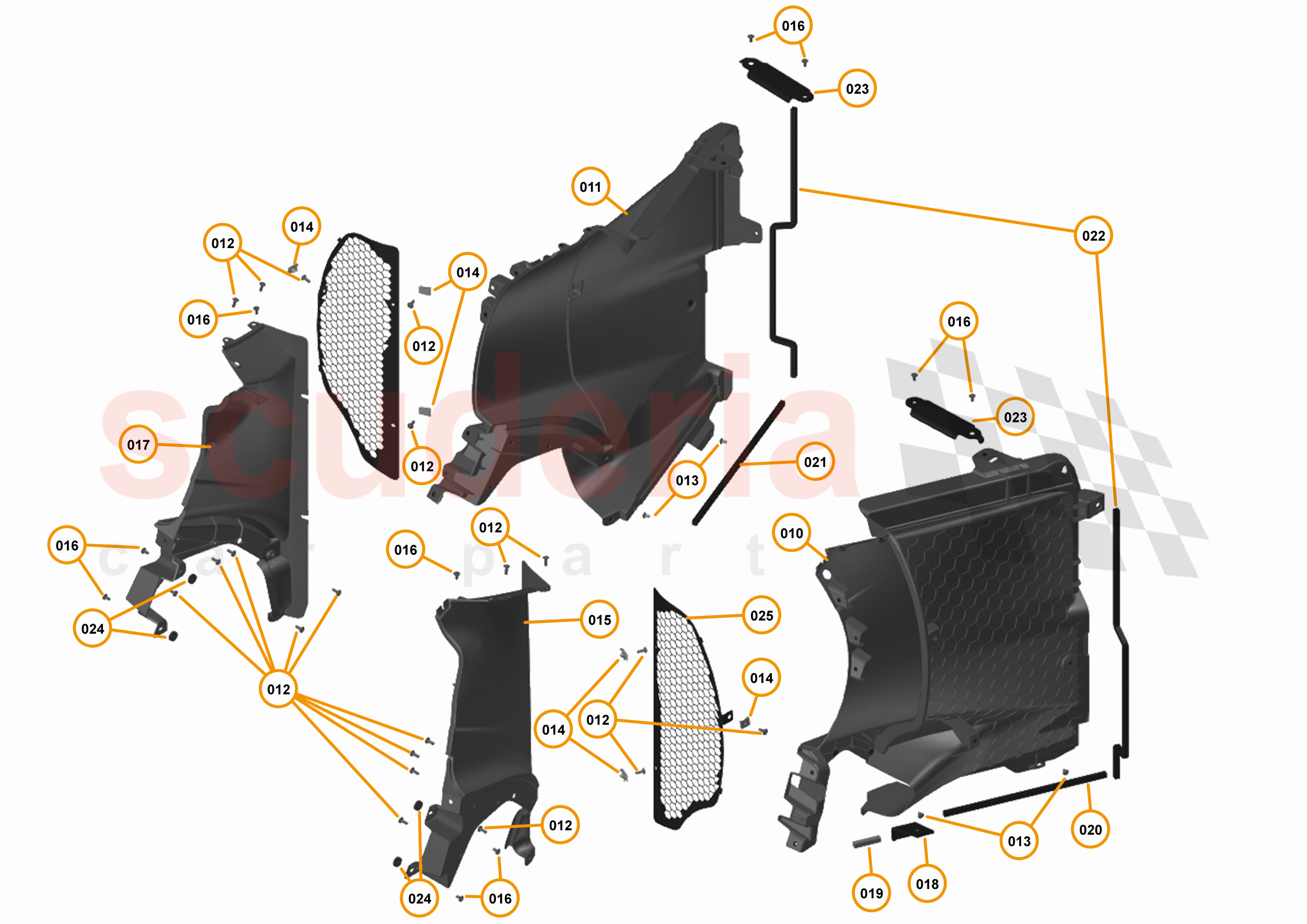

14 - DUCTS, VENTS & FLOORS - 14.2 - SIDE DUCTS & VENTS of McLaren McLaren 720S Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart

14AB148CP

SIDE DUCT - HIGH TEMPRATURE RADIATOR - OUTER - UPPER - RH - LHD

 -
010 14AB144CP
SIDE DUCT - HIGH TEMPRATURE RADIATOR - OUTER - UPPER - LH - LHD 		- 1
PE
 Enquire
011 14AB154CP
SIDE DUCT - HIGH TEMPRATURE RADIATOR - OUTER - UPPER - RH - RHD 		- 1
PE
 Enquire
012 00RA409
BOLT - FLANGE - M6X16 - BUTTON HEAD 		- 20
PE
 Enquire
013 00RA609
SCREW - BUTTON HEAD - TORX - FLANGE - M6X1X10-8.8-85 		- 4
PE
 Enquire
014 00RB183
CLIP - U NUT - M6 		- 6
PE
 Enquire
015 14A0322CP
SIDE DUCT - INNER - HIGH TEMPRATURE RADIATOR - LH 		- 1
PE
 Enquire
016 00RA468
SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK 		- 10
PE
 Enquire
017 14A0327CP
SIDE DUCT - INNER - HIGH TEMPRATURE RADIATOR - RH 		- 1
PE
 Enquire
018 14AB145CP
FOAM - RADIATOR DUCT - HVAC PIPE - LH 		$6.02 1
TO
019 14A3025CP
DUCT SIDE OUTER LOWER FOAM FRONT 		$6.23 1
TO
020 14A2350CP
FOAM - RADIATOR DUCT - FRONT - LONG - LH 		$6.42 1
TO
021 14A2353CP
FOAM - RADIATOR DUCT - FRONT - RH 		$8.64 1
TO
022 14A2349CP
FOAM - RADIATOR DUCT - REAR 		$12.08 2
TO
023 14A3209CP
SUPPORT BRACE - SIDE DUCT 		$17.25 2
TO
024 00RC050
WASHER - M6X5.0MM 		- 4
PE
 Enquire
025 14A0323CP
GRILLE - SIDE DUCT - LH 		$463.23 1
TO
